Chapter 7
7-6 Printer-Applicator User’s Manual
If the sensor does not indicate when the tamp is in the home position, use the following procedure to
adjust:
1. Disconnect the air supply from the applicator.
2. Loosen the sensor adjustment screw.
3. Push the tamp into the fully home position.
4. Adjust the sensor as required until the LED turns on. Tighten the sensor adjustment
screw.
NOTE: Be careful not to over tighten or the screw will strip.

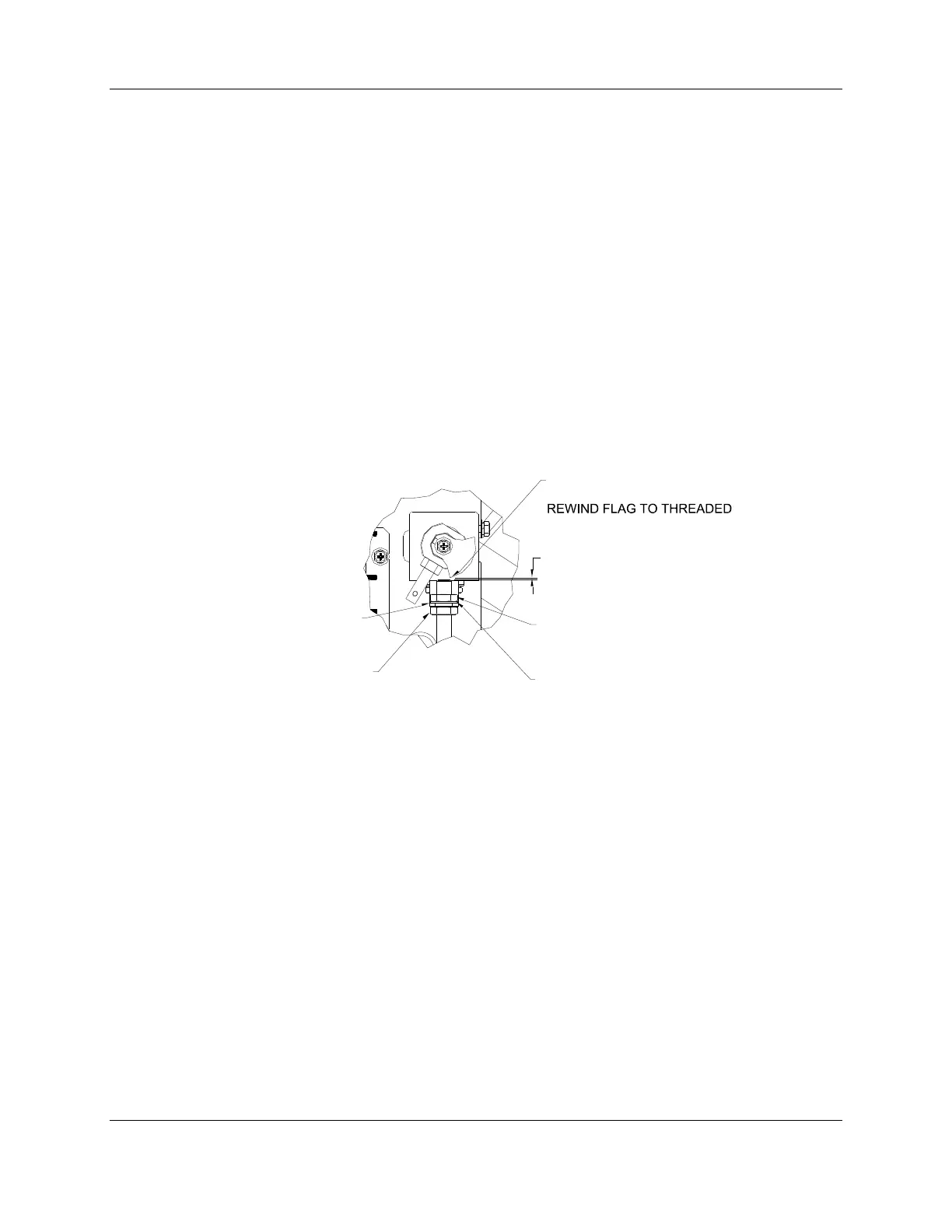

Rewind Flag and Sensor Adjustments
.040/.030
NUT SUPPLIED WITH SENSOR
TIGHTEN UP TO 24/20 LB/IN.
LOCK WASHER SUPPLIED
WITH SENSOR
LOCK WASHER SUPPLIED
WITH SENSOR
NUT SUPPLIED WITH SENSOR
TIGHTEN TO 24/20 LB/IN.
.000/.010 GAP FROM
LEADING EDGE OF
O.D. OF SENSOR
