If the tamp pad is adjusted too low, the label will feed into the back of the pad and jam. If the tamp
pad is adjusted too high, the label will not feed correctly onto the pad.
This adjustment may need to be changed when different label materials are used.
RIGHT-HAND
MOUNTING
SCREWS

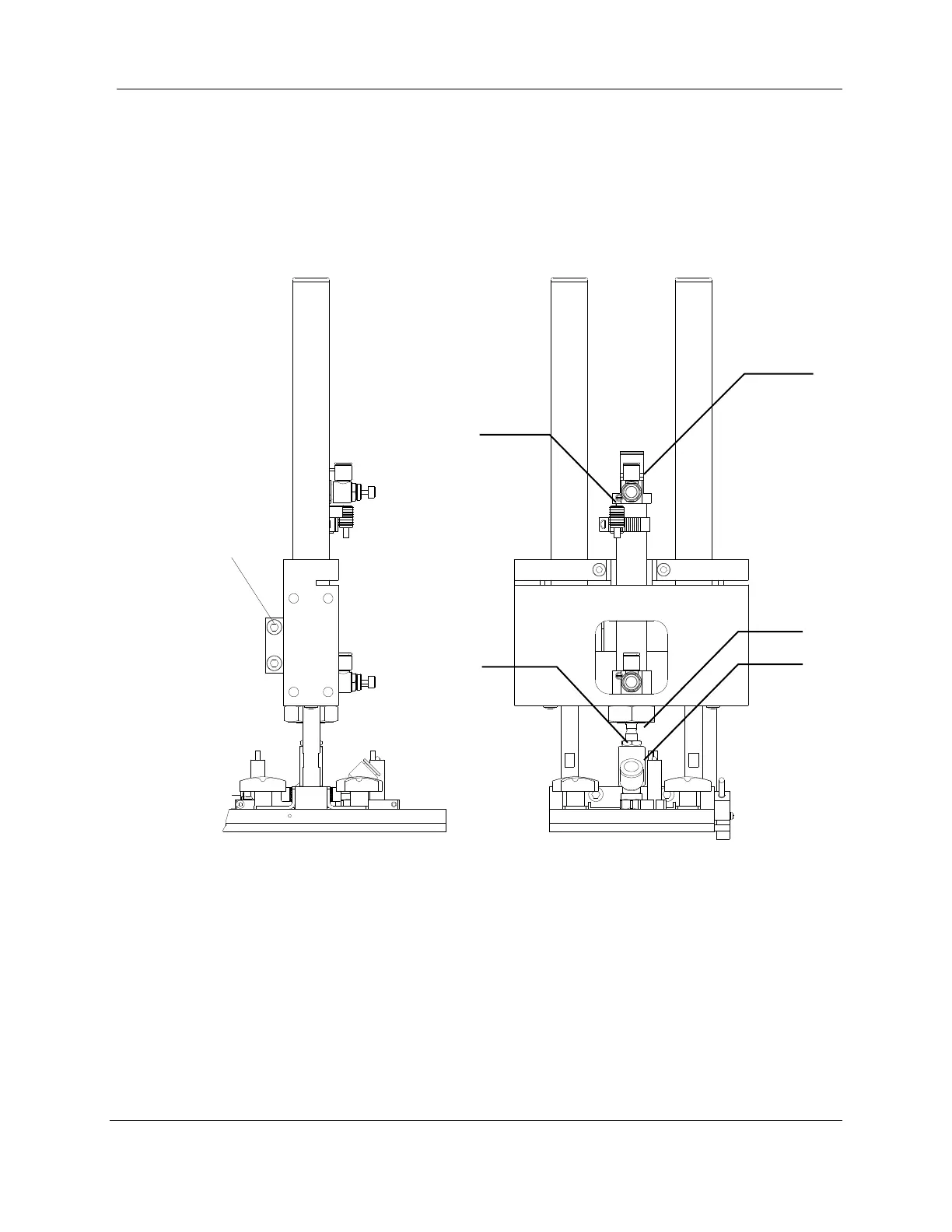

Figure 4-3: Tamp Home Adjustment
To adjust the tamp home position:
1. Back the tamp-regulator completely down to 0 PSIG.
2. Before the tamp height is adjusted, be aware of the tamp home sensor. It is used to sense
when the piston is in its home or extended position. It should always be checked and
adjusted whenever the tamp home position is changed.
