CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
100
Range
[Factory Setting]
Parameter Unit Description / Notes
Figure 6.5 - Fixed starting Current Limit
P111 150 to 500
Initial Current for the [ 150 ]
Current Ramp 1% In of the Motor
 Used for the control by Current Ramp, P202=4.
Allows a current limit ramp to be programmed to help in the starting
of loads that have a lower or higher starting torque.
TheinitialvalueofthecurrentlimitisshownbyP111,thenalvalue
isshownbyP110andthetimeisshownbyP112,accordingtogure
6.6.
P112 1 to 99
Time for the Current [ 20 ]
Ramp 1% of P102
 Used for the control by Current Ramp, P202=4.
 It enables programming the time, in percent of P102, for the end
Current Ramp.
 After the time, programmed at P112, has elapsed, it starts operation
byCurrentLimit,givenbyP110.
Start
P102
0
P110
I(A)
t(s)
DisableEnable CurrentLimit
ILimit
Nominal Current
Maximum Time
a)
Start
P102
0
P110
I(A)
t(s)
DisableEnable
Current Ramp
ILimit
Nominal Current
P111
P112
Maximum Time

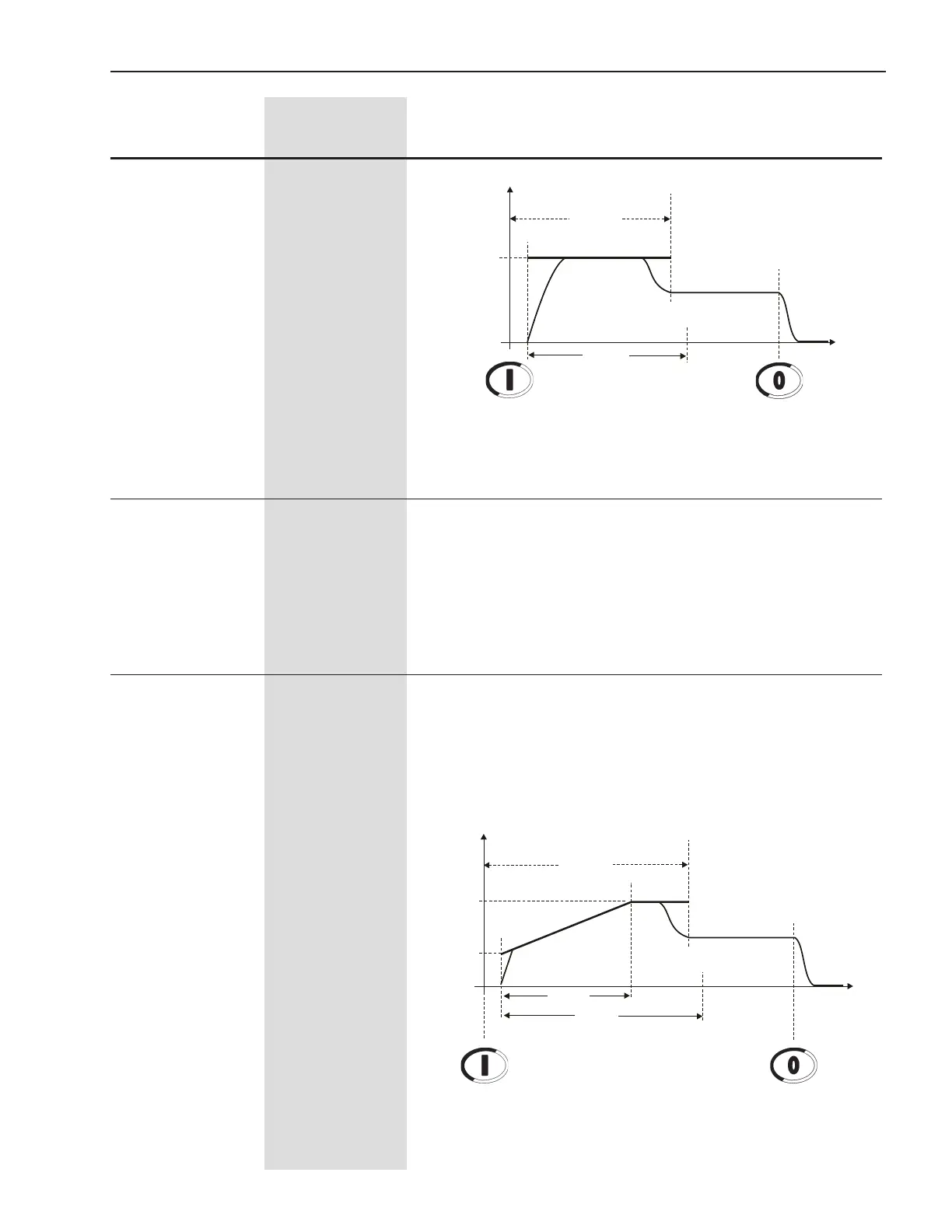

Figure 6.6 a) - Current Limit by Current Ramp during Starting
