CHAPTER 5 - START-UP
79
Shown below is a parameter programming example requested by
this routine.
Example:
Soft-Starter SSW-06
SSW060130T2257PSZ
Motor
HighE󰀩ciencyPlusThree-PhaseElectricMotor-4Poles-60Hz
Power: 75 HP
Frame size: 225S/M
Speed: 1770 rpm
Nominal current at 380V: 101 A
Service Factor: 1.15
Start mode
Start-up by voltage ramp.
Language
P201 = Portugues
Language
P20 1 = Portugues
Language
P20 1 = English
Language
P20 1 = English
Delta Inside
P150=Inactive
After Power-up, the Display shows
the following message
Press the key to enter the
programming mode
Use the keys and to
select the language
Press the key to save the
selected option and exit the pro-
gramming mode
Press the key to go to the
next parameter
Press the key to enter the
programming mode

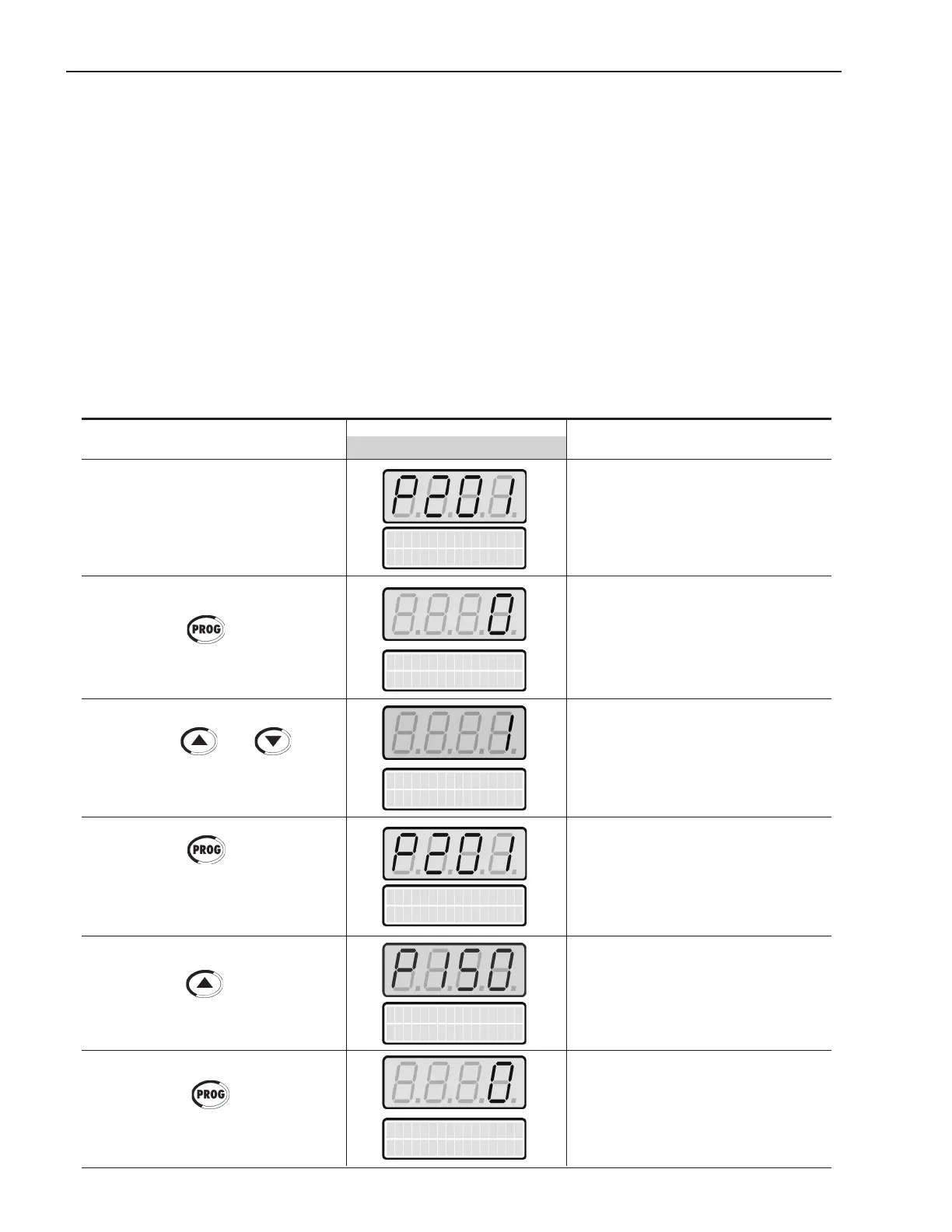

    ACTION   LEDDISPLAY   DESCRIPTION
        LCDDISPLAY
LanguageSelection:
0=Português
1=English
2=Español
3=Deutsch
Enter the programming mode.
Selected language: English
Exit the programming mode.
Soft-Starter Connection Type to the
motor:
0=Inactive = standard 3 wires
1=Active = Delta inside 6 wires
Enter the programming mode
Delta Inside
P150=Inactive
