WEG SSW-06 - Page 81

CHAPTER 5 - START-UP
81
Start Time Ramp
P102=20s
Start Time Ramp
P102=15s
Use the keys and to se-
lect the initial start voltage
Press the key to save the
selected option and exit the program-
ming mode
Press the key to go to the next
parameter
Press the key to enter the pro-
gramming mode
Use the keys and to select
the ramp time for the start voltage
Press the key to save the
selected option and exit the program-
ming mode
Press the key to go to the next
parameter
Press the key to enter the
programming mode
Use the keys and to se-
lect the nominal motor voltage

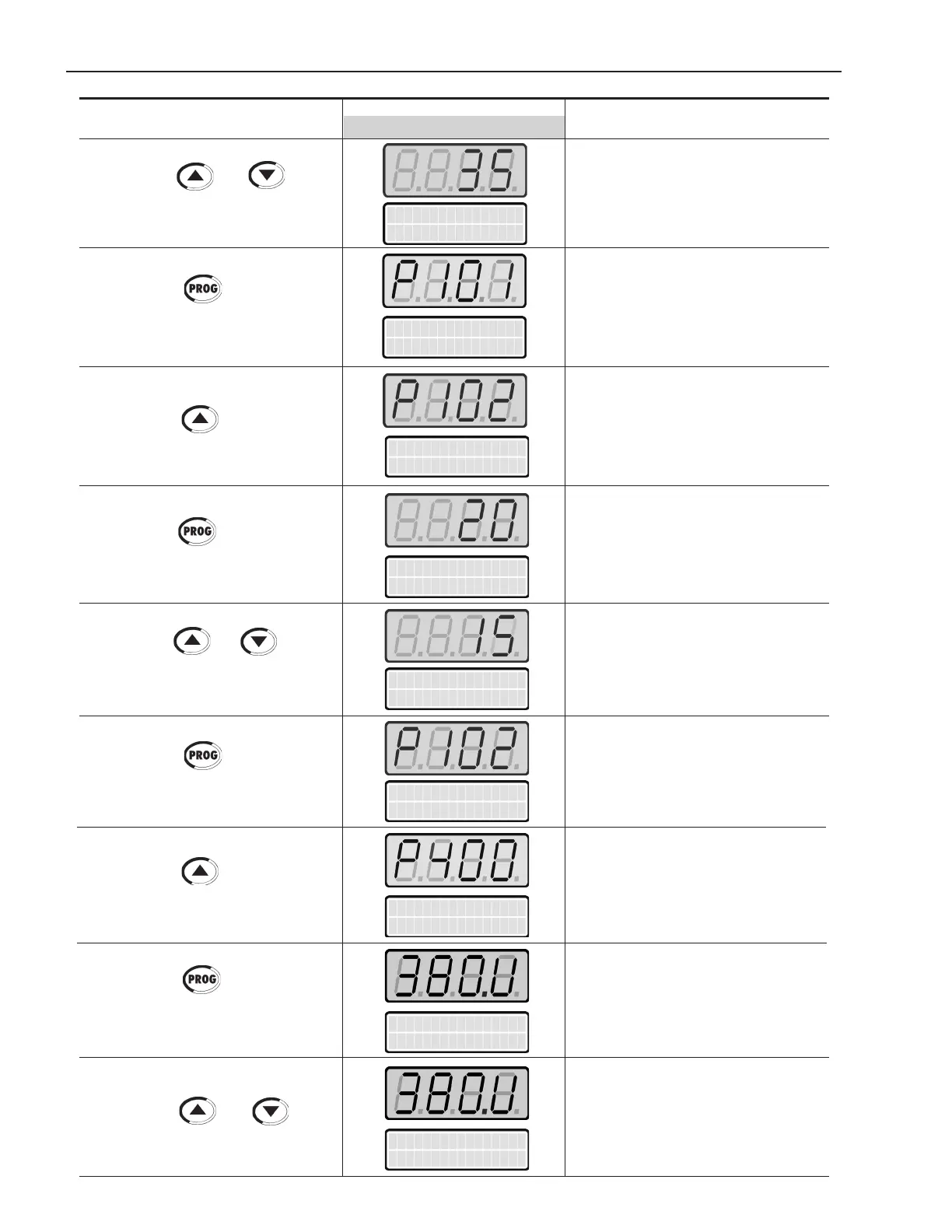

    ACTION   LEDDISPLAY   DESCRIPTION
        LCDDISPLAY
Init. Volt Start
P101=35%
Start Time Ramp
P102=20s
Start Time Ramp
P102=15s
Nominal Motor Volt
P400=380V
Nominal Motor Volt
P400=380V
Nominal Motor Volt
P400=380V
Initial selected voltage:
35% Un
(according to load requirements)
Exit the programming mode
Voltage Ramp Time:
(1 to 999)s
Enter the programming mode.
Selected ramp time for the start
voltage: 15s
(according to load requirements)
Exit the programming mode
Nominal motor voltage (Un):
(0 to 999)V
Enter the programming mode.
Selected nominal motor voltage:
380V
(according to the motor data)
Init. Volt Start
P101=35%
