Changing mapping for sounds and accompaniment
186 Operating Manual

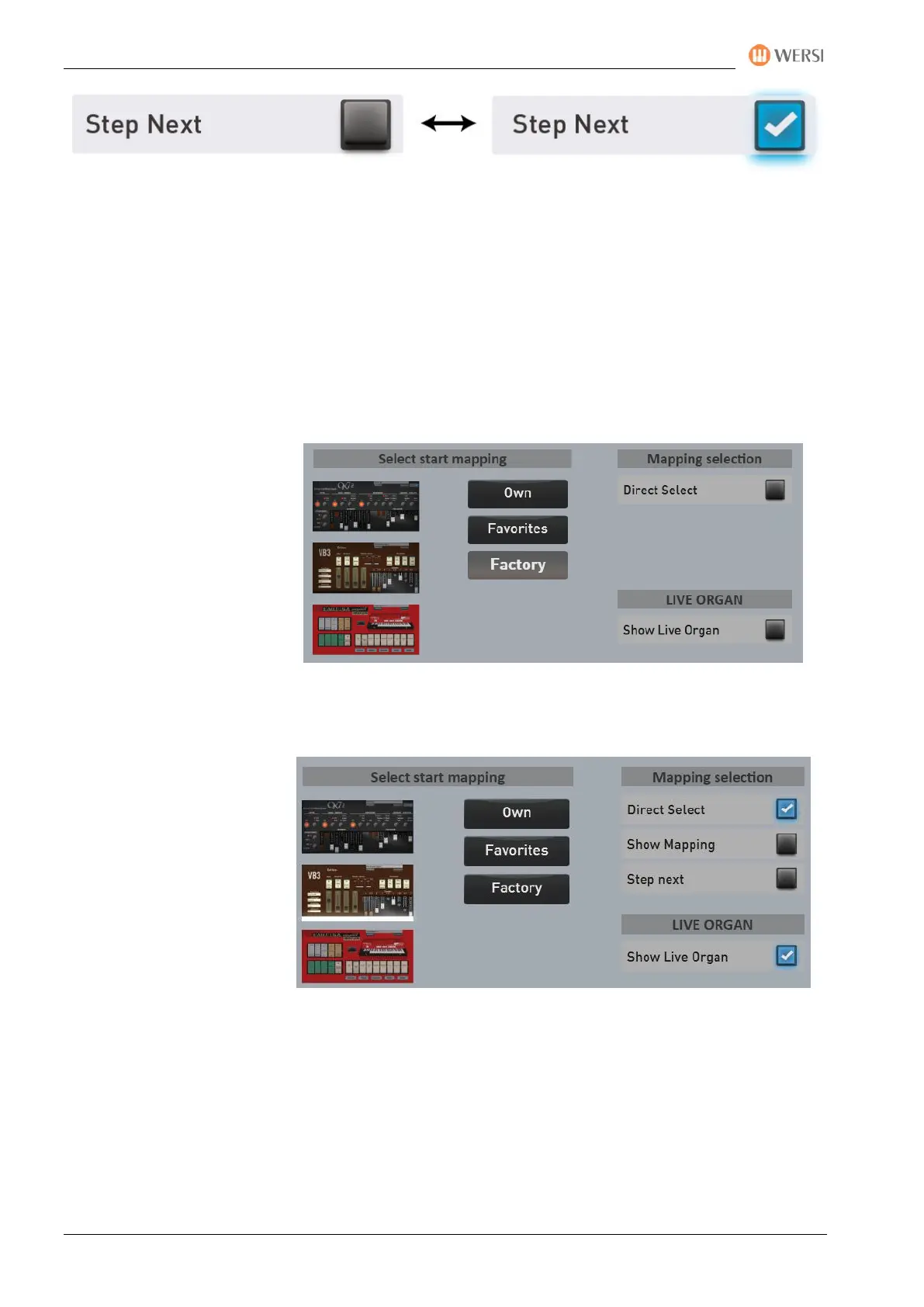

Step Next off -> If you press the panel button Drawbars Live, the first sound of the mapping is selected
directly. The second time you press the button, the mapping jumps to the next mapping page, but without
selecting another sound or accompaniment.
Step Next on -> Now the sound advances by one each time you press a button. Do you have your own
mapping with e.g. For example, if four sounds are created, you can switch to each sounds by repeatedly
pressing the button. With four sounds on your own mapping, pressing five times takes you back to the first
mapping place. The function "continue" runs in a circle.
What combinations result when you press the panel button Drawbars Live!
In connection with the functions Start mapping, Show live organ and Direct select, Show mapping and Step
next, some interesting combinations result. Here are just a few examples:
Version 1
You want the factory mapping
of all organ types to be shown
in the display when you press
the Drawbars Live panel
button. However, a sound is
only selected when you select
one of the sounds in the
display. After selection, the
display jumps back to the
professional display.
Factory is selected under Start Mapping. Show Live Organ and Direct Select are off.
Version 2
You want the first VB3 sound
to be selected and the large
VB3 interface to appear in the
display when you press the
Drawbars Live panel button.
The VB3 is selected under
Start Mapping and the Show
Live Organ and Direct Select
functions are activated.
