Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-21
7
See Figure 7-20. Use the cant control adjustment to adjust the idle-side blade wheel. If the blade is
too far forward on the wheel, turn the cant control clockwise. If it is too far back on the wheel, turn the
cant control counterclockwise.
11. Check the position of the blade on the drive-side blade wheel. The blade should be positioned on the
wheel as described for the idle-side blade wheel. Adjust the drive-side blade wheel if necessary.
See Figure 7-21. Use the horizontal adjustment screw to adjust the drive-side blade wheel. To move
the blade back on the wheel, loosen the jam nut on the adjustment screw and tighten the screw.
Tighten the jam nut.
To move the blade out on the wheel, loosen the jam nut on the adjustment screw and loosen the
screw. Tighten the jam nut.

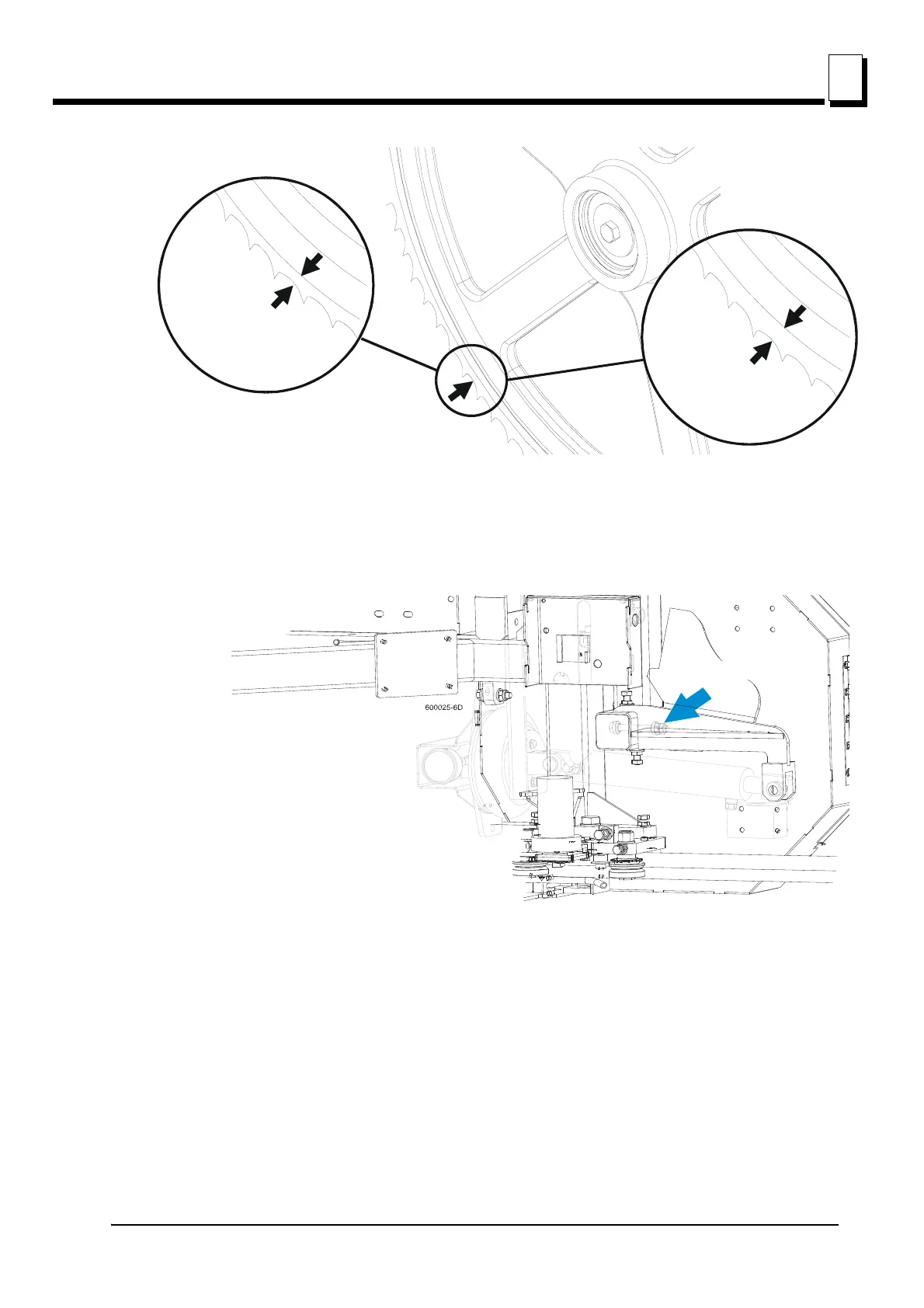

FIG. 7-19
FIG. 7-20
SM0044D
1 1/2"
Blade
± 1 mm (0.04”)
1 1/4"
Blade
3.0 mm (0.12”)
± 1 mm (0.04”)
4.5 mm (0.18”)
Cant Control
Turn cant control counterclock-
wise to move blade out on
wheel; clockwise to move blade
back on wheel
To Next Page
