Sawmill Alignment
Complete Alignment Procedure
7
7-26 60HDdoc102619 Sawmill Alignment

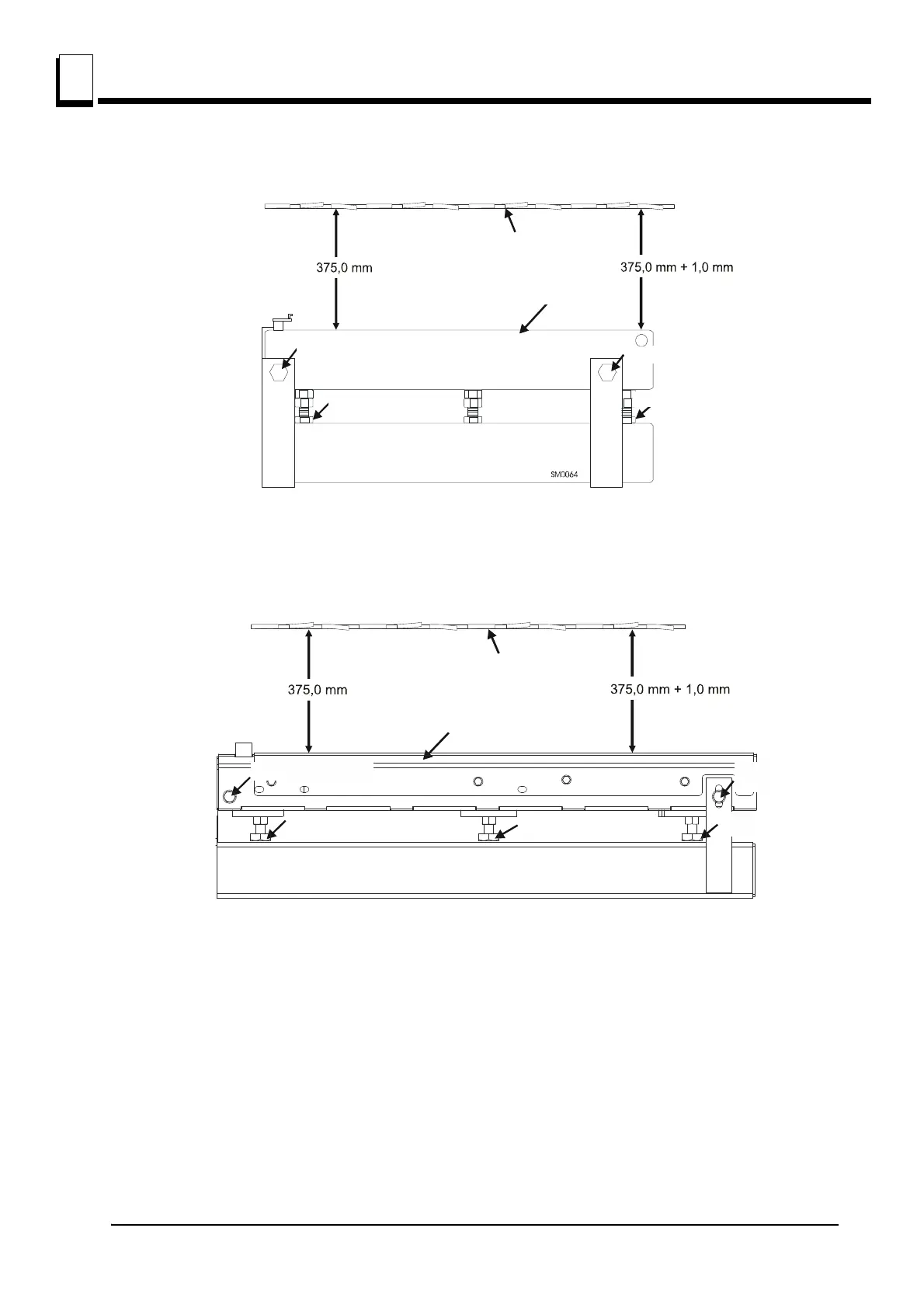

See Figure 7-26. Loosen the bed rail clamping bolts and turn the adjustment bolts to move the bed
rails to the blade if necessary. Retighten the clamping bolts and adjustment bolt jam nuts.
See Figure 7-27. Optional bed rail (angled)
11. Without adjusting the saw head height, check the three remaining main bed rails and the rear pivot
rail. Adjust them so that all measure the same distance from the blade at both ends of the bed rail.
FIG. 7-26
FIG. 7-27
Blade
Bed rails
Clamp bolt
Clamp bolt
Adjustment bolt
Adjustment bolt
Blade
Bed rails
Clamp bolt
Clamp
Adjustment bolt
Adjustment bolt
Adjustment
bolt
bolt
