Wood-mizer LT70L DH User Manual

Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-25
7
7. Measure the distance from the top of the pivot rail to the bottom of the blade. Make this
measurement at each end of the pivot rail.
8. The two measurements should be 15" (375 mm).

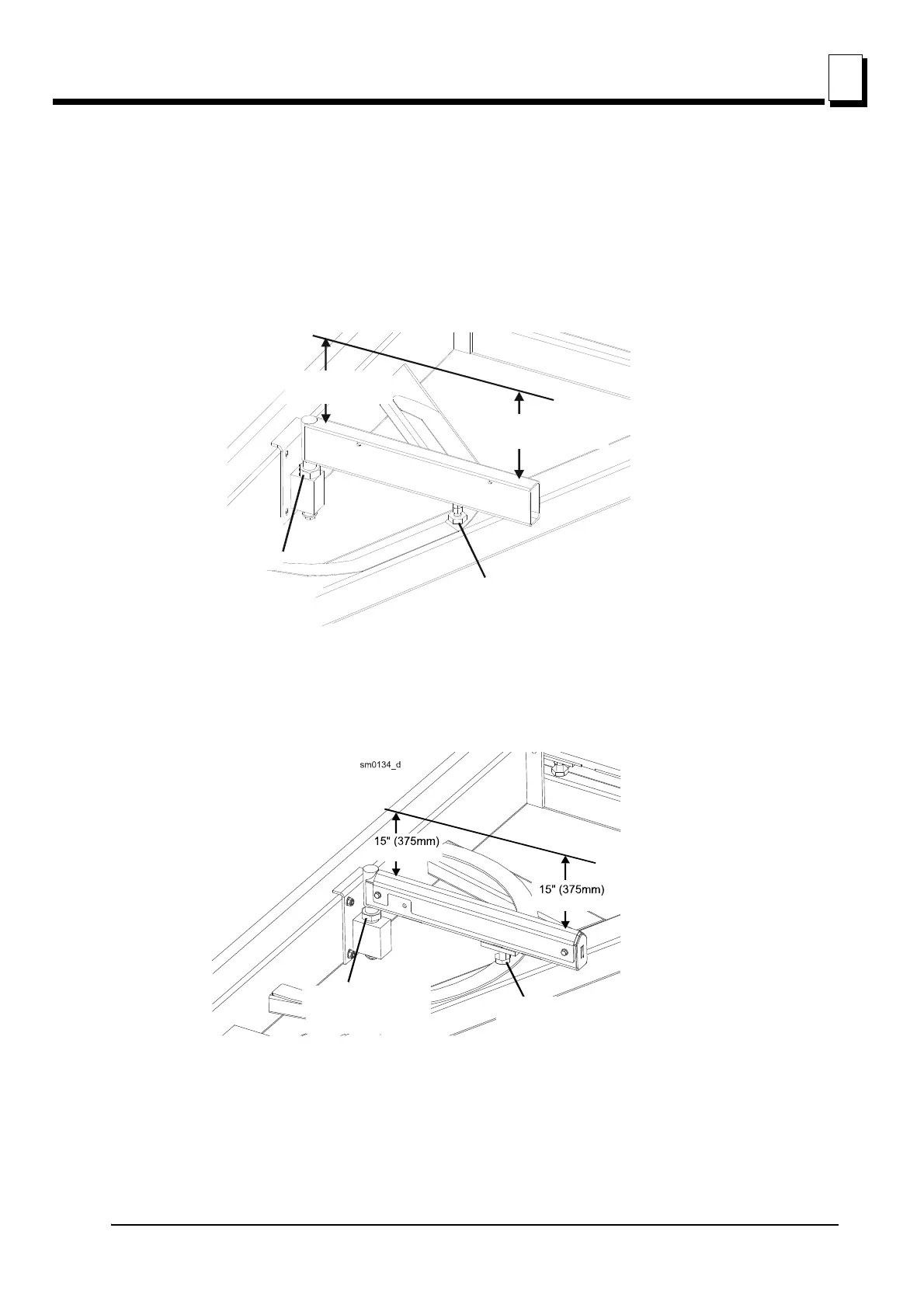

See Figure 7-24. Loosen the locking set screws and turn the inner height adjustment nut to adjust
the height of the inner end of the pivot rail. Loosen the jam nut and turn the outer adjustment bolt to
adjust the height of the outer end of the pivot rail.
See Figure 7-25. Optional bed rail (angled)
9. Move the saw head so the blade is positioned over the center of the front main bed rail.
10. Measure the distance between the bottom of the blade and the bed rail at each end of the bed rail.
The bed rail should measure 15" (375 mm) from the blade to the bed rail (+1mm at the outer side).
FIG. 7-24
FIG. 7-25
Inner Height
Adjustment
Nut
Outer Height
Adjustment
Bolt
SM0134B
15 1/32" (375mm)
to blade
15" (375mm)
to blade
375 mm to
blade
375 mm to
blade
Inner Height
Adjustment
Nut
Outer Height
Adjustment
Bolt
Outer Height
Adjustment Bolt
to blade
to blade
Inner Height
Adjustment Nut
