WARNING! Always make sure the trailer is supporting the sawmill
frame when operating a sawmill with adjustable outriggers. Failure to
do so may result in serious injury or death. The adjustable outriggers
are intended to support the saw frame with assistance from the trailer.
1. Unhitch the mill from the vehicle.
2. Lower and set the front outriggers. To lower the leg, pull the locking pin out of the outrigger hole.
When the outrigger contacts the ground, release the pin. Place a 19 socket wrench on the outrigger
adjustment bolt and turn the bolt until the locking pin enters the nearest outrigger hole.
WARNING! Put front outrigger down before moving cutting head from
the rest position. Failure to do so may result in serious injury.
See Figure 3-3.

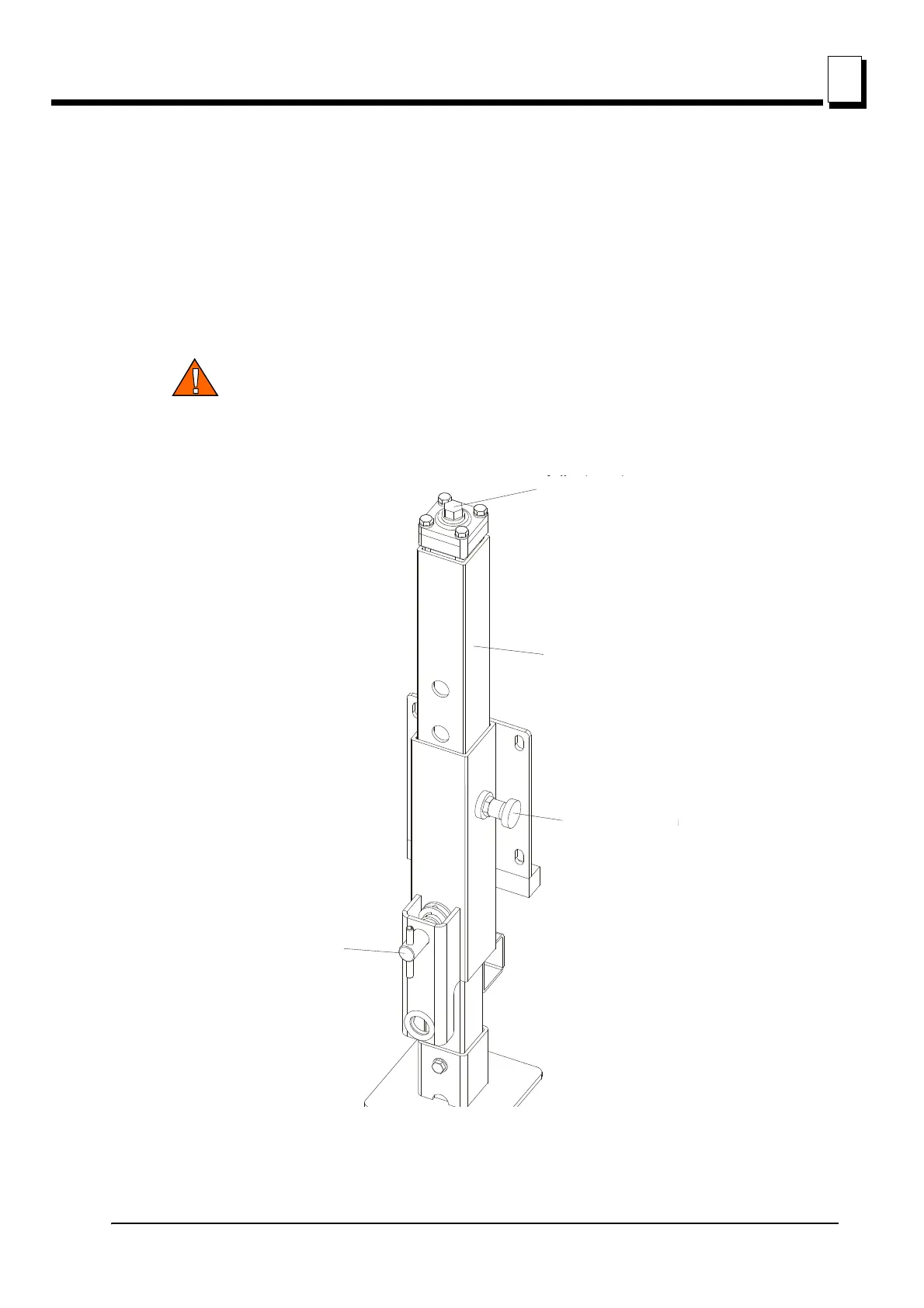

FIG. 3-3. OUTRIGGER ADJUSTMENT
Locking Pin
Outrigger Leg
Travel Lock Pin
80_008
Adjustment
Bolt
Adjustment
Bolt
Outrigger Leg
Travel Lock Pin
Locking Pin
