Troubleshooting
WorkCentre 7120 Multifunction Printer
User Guide
186
Clearing Paper Jams in Cover C

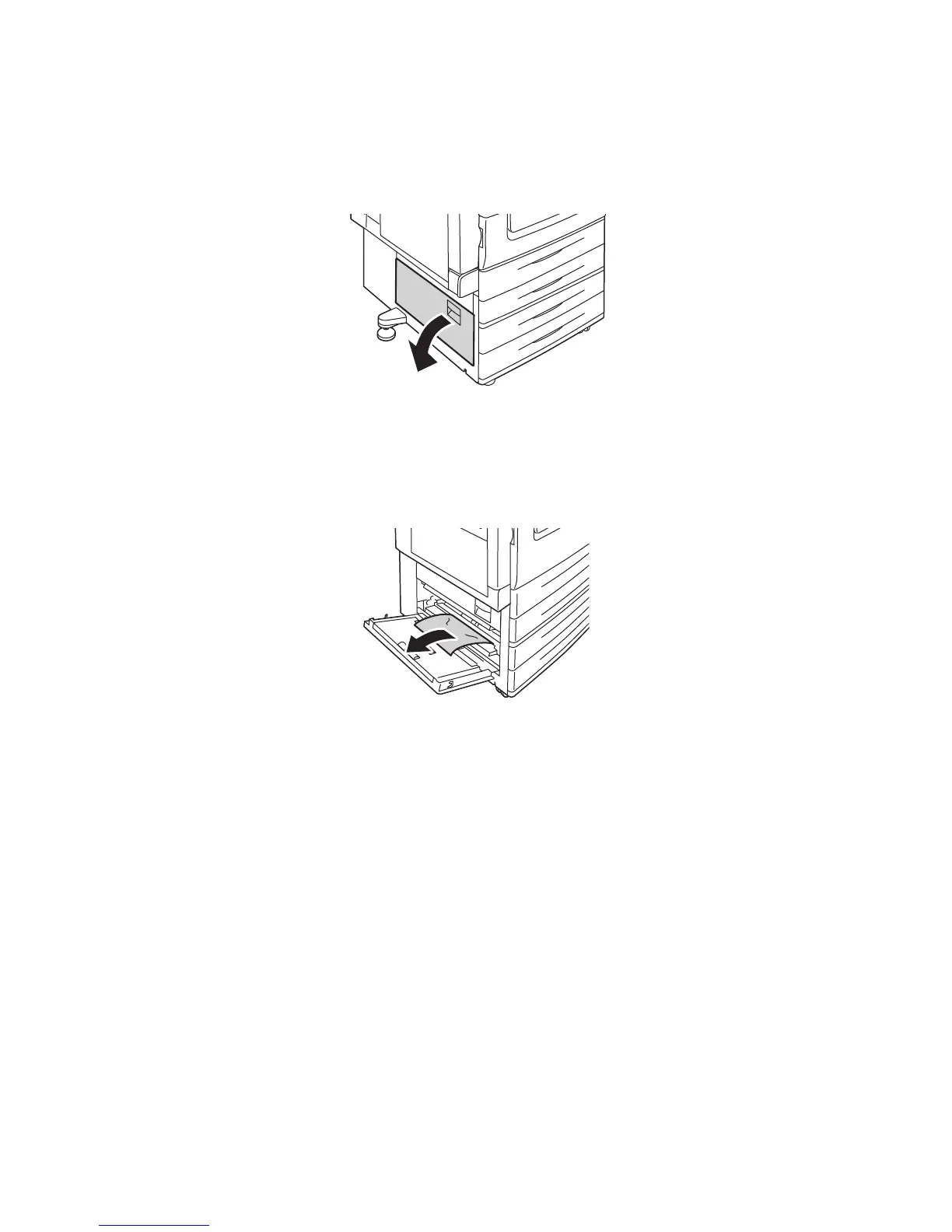

1. If necessary, close Tray 5 (Bypass Tray).
2. Lift the lever up, then open cover C.
3. Remove the jammed paper.
Notes:
• Paper may be jammed inside the printer. Inspect thoroughly and remove any jammed paper.
• If the paper is torn, remove all torn pieces from the printer.
4. Close cover C.
To Next Page
