Xerox WORKCENTRE 7120 - Internal Components

Features
WorkCentre 7120 Multifunction Printer
User Guide
26

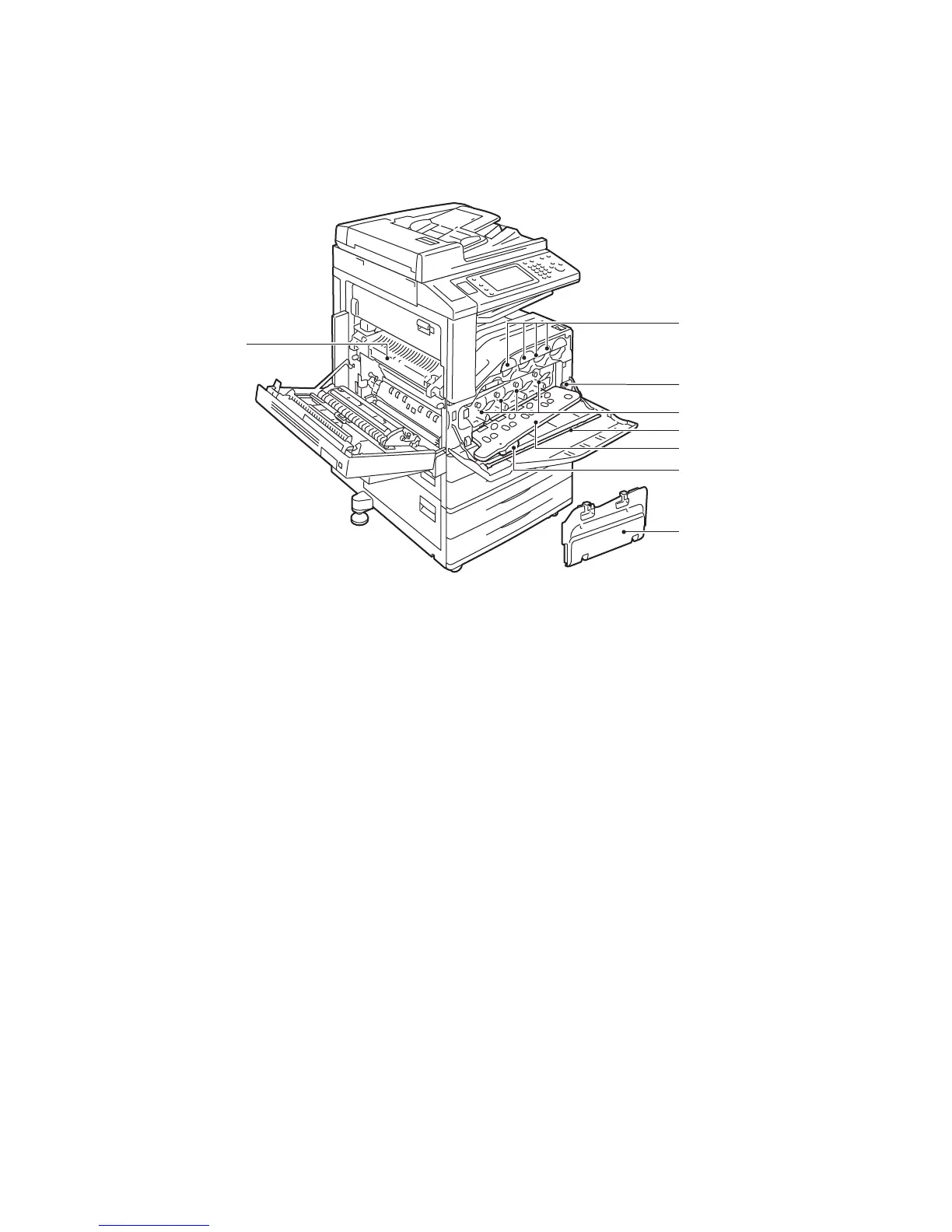

Internal Components
1. Toner cartridges 5. Drum cartridge cover
2. Main power switch 6. Drum cartridge cover release lever
3. Drum cartridges 7. Waste toner container
4. Cleaning bar 8. Fuser unit
1
2
3
5
6
8
7
4
wc7120-003
