Xerox WorkCentre M20 - Page 112

December 2006
4-14
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 2.1
Repairs and Adjustments

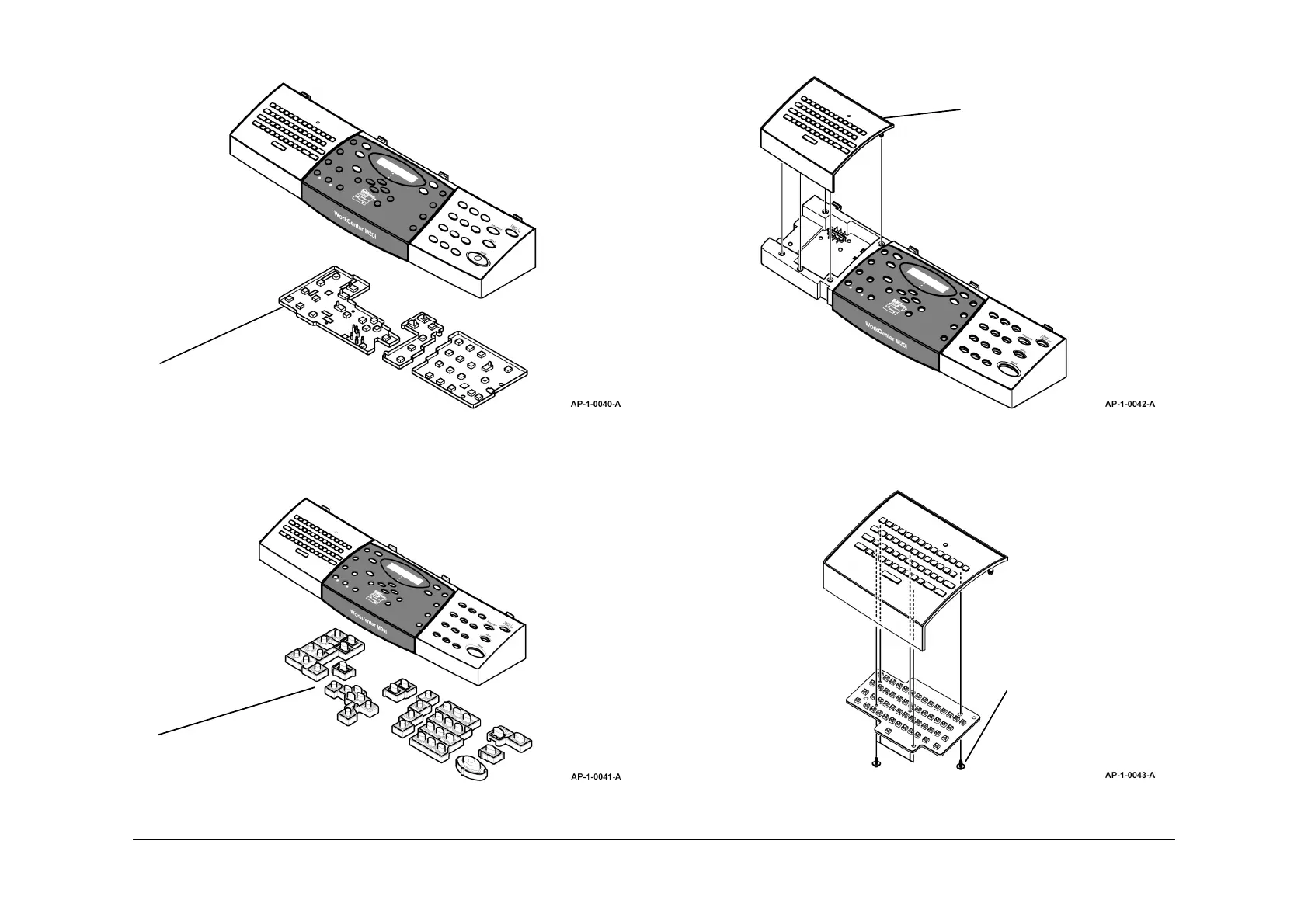

4. Remove the rubber contacts, Figure 3.
Figure 3 Rubber contacts removal
5. Remove the key pads, Figure 4.
Figure 4 Key pads removal
6. If installed, remove the cover E-mail, Figure 5.
Figure 5 Cover E-mail removal
7. Remove PBA SUB E-mail, Figure 6.
Figure 6 PBA SUB E-mail removal
1
Remove the rubber contacts.
1
Remove the key pads.
1
Remove the cover E-mail by gently
squeezing together the locking tabs
located on the underside of the
assembly.
1
Remove 5 screws, then the
PBA SUB E-mail.
