Xerox WorkCentre M20 - 8.13 Side Cover Assembly (3 of 3)

December 2006
5-31
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 8.13
Parts Lists

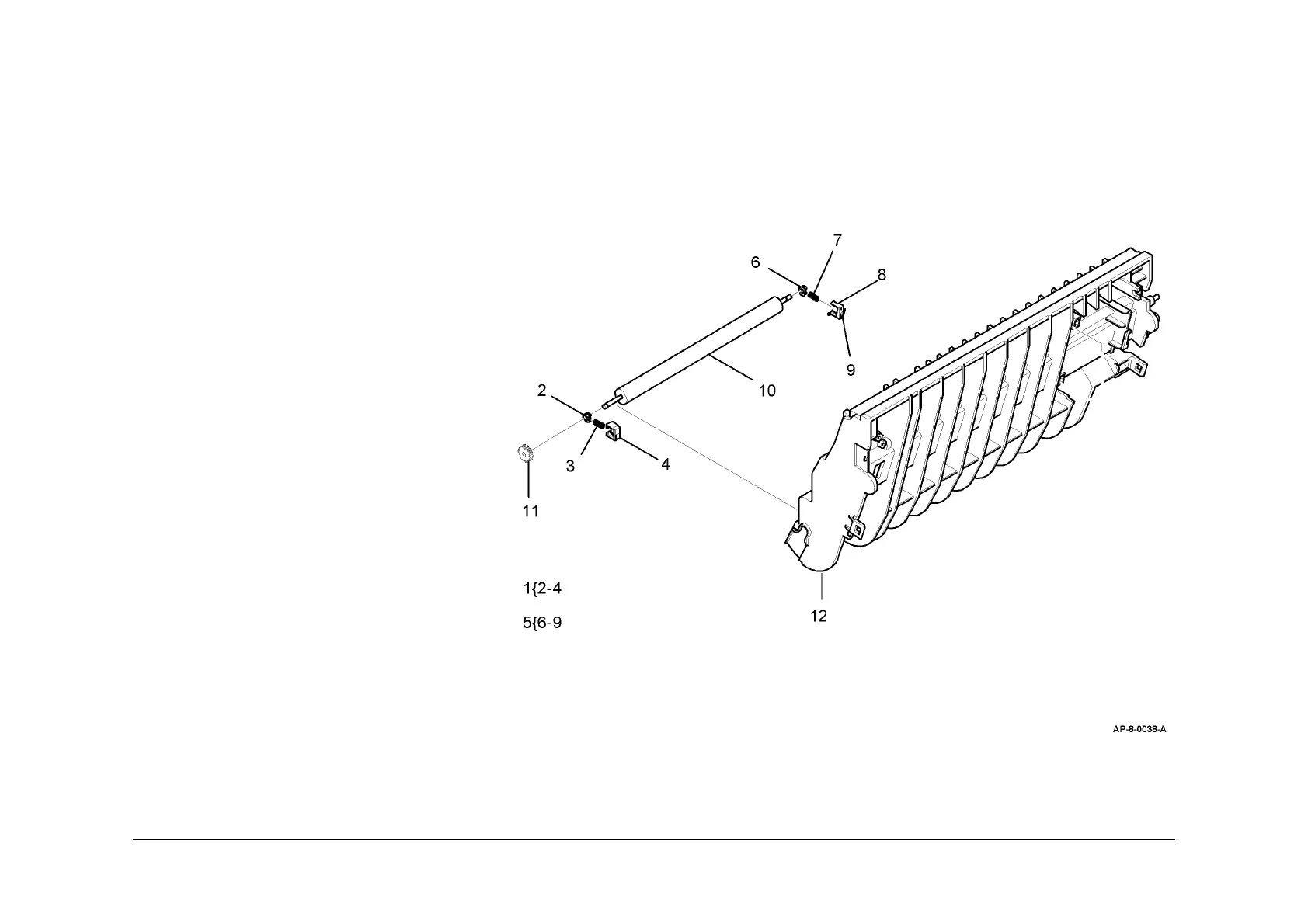

PL 8.13 Side Cover Assembly (3 of 3)
Item Part Description
1 009N01363 MEA Unit - Hold Gear
2 – PMO - Bush (P/O PL 8.13 Item 1)
3 – Spring ETC - TRR (P/O PL 8.13
Item 1)
4 – PMO - Holder Gear TR (P/O PL
8.13 Item 1)
5 022N02260 MEA Unit - Hold TR GND
6 – PMO - Bush (P/O PL 8.13 Item 5)
7 – Spring ECT - TR (P/O PL 8.13 Item
5)
8 – Spring ETC - Plate TR (P/O PL
8.13 Item 5)
9 – PMO - Holder GND TR (P/O PL
8.13 Item 5)
10 022N01475 Transfer Roller (REP 8.3)
11 007N01114 Gear Transfer
12 – PMO - Feed Frame (P/O PL 8.10
Item 2)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
