WorkCentre M20, 4118, FaxCentre 2218 Family
REP 8.2, REP 8.3
Repairs and Adjustments
REP 8.2 MEA Unit - Duplex Assembly
Parts List on PL 8.10 and PL 8.11
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
NOTE: If necessary, refer to GP 20 for the acronym list and cross reference lists of more com-
monly recognised part names.
1. Remove the ELA HOU - side cover assembly, REP 8.1.
2. Remove the MEA unit - duplex assembly, Figure 1.

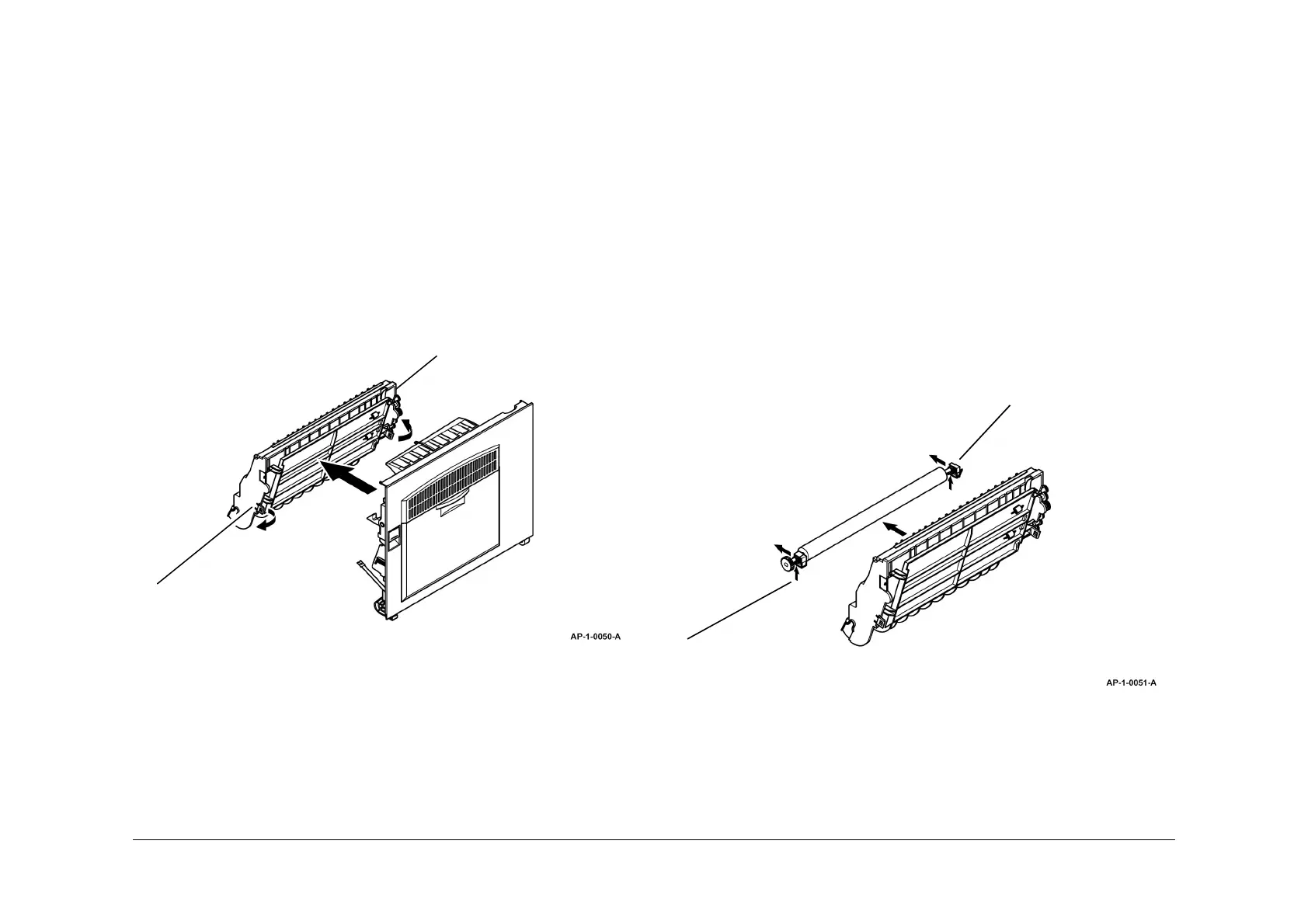

Figure 1 MEA unit - duplex assembly removal
Replacement
Replacement is the reverse of the removal procedure.
REP 8.3 Transfer Roller Assembly
Parts List on PL 8.13
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
NOTE: If necessary, refer to GP 20 for the acronym list and cross reference lists of more com-
monly recognised part names.
1. Open the ELA HOU - side cover assembly.
NOTE: For clarity, the MEA unit - duplex assembly is shown removed from the machine in Fig-
ure 1.
2. Remove the transfer roller assembly, Figure 1.
Figure 1 Transfer roller assembly removal
Replacement
Replacement is the reverse of the removal procedure.
1
Unclip the MEA unit - duplex
assembly from the front and
rear.
Remove the MEA unit - duplex
assembly.
1
Unclip the front and rear bush
holders.
2
Remove the transfer roller
assembly.
