Xerox WorkCentre M20 - 2.10 OPE Assembly (1 of 2) (M20 F)

December 2006
5-7
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 2.10
Parts Lists

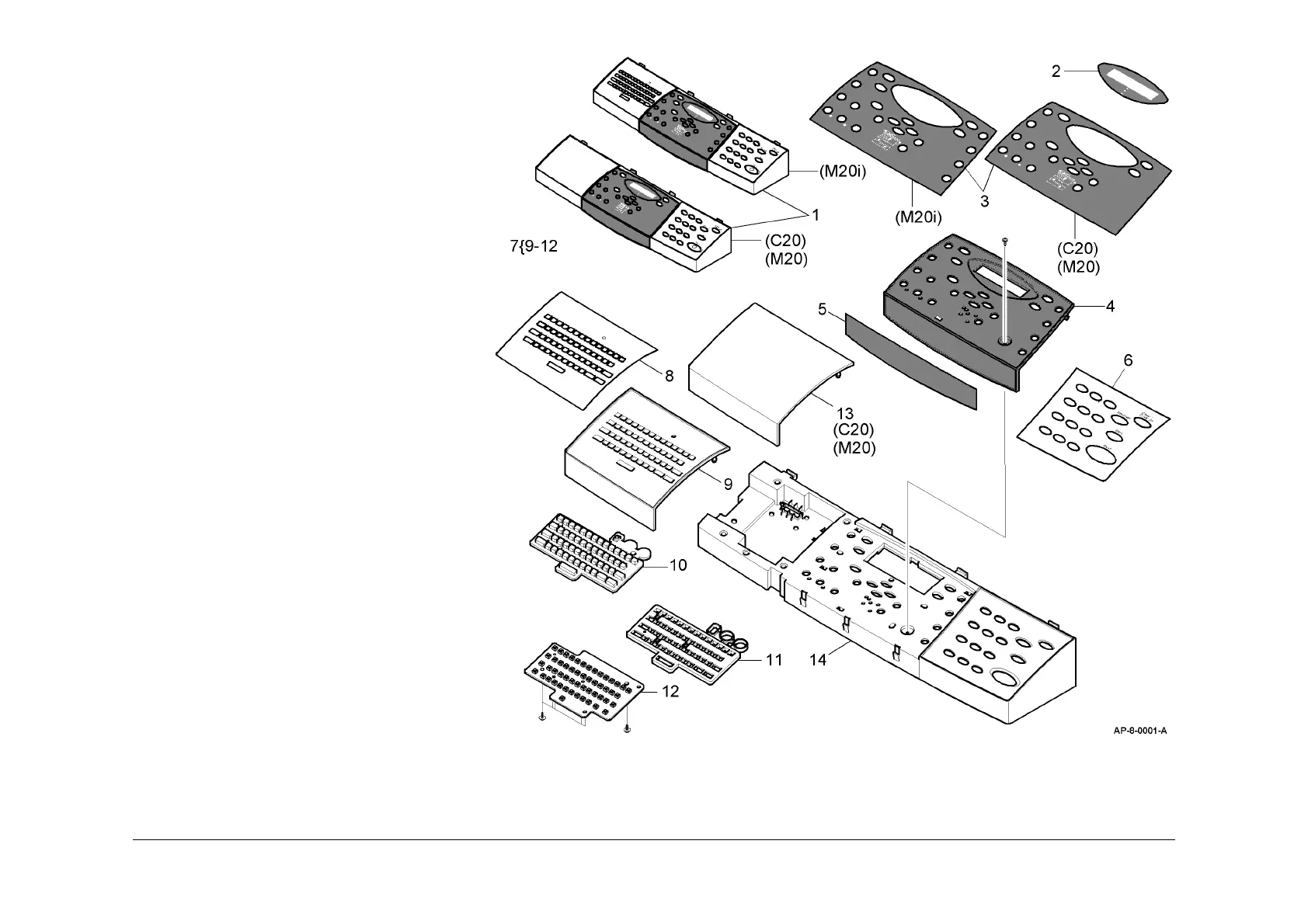

PL 2.10 OPE Assembly (1 of 2) (M20F)
Item Part Description
1 – ELA HOU OPE Assembly (Not
Spared) (REP 2.1)
2 – Window LCD (Not Spared)
3 091N80194 Sheet Overlay Center (A) (C20,
M20)
– 091N80201 Sheet Overlay Center (A) (French)
(C20, M20)
– 091N80199 Sheet Overlay Center (A) (C20,
M20) (Spanish)
– 091N80203 Sheet Overlay Center (A) (C20,
M20) (Portuguese)
– 091N80193 Sheet Overlay Center (A) (M20i)
– 091N80200 Sheet Overlay Center (A) (French)
(M20i)
– 091N80198 Sheet Overlay Center (A) (M20i)
(Spanish)
– 091N80202 Sheet Overlay Center (A) (M20i)
(Portuguese)
4 – Panel OPE Front (Not Spared)
5 091N80196 Sheet Name Plate (C20)
– 091N80197 Sheet Name Plate (M20)
– 091N80195 Sheet Name Plate (M20i)
6 – Sheet Numerical (USSG/XCL) (Not
Spared)
7 002N02281 ELA HOU E-mail Option Unit
8 700N00096 Sheet E-mail
– 700N00097 Sheet E-mail (EU)
9 – Cover E-mail (P/O PL 2.10 Item 7)
(REP 2.1)
10 – E-mail Keypad (P/O PL 2.10 Item
7) (REP 2.1)
11 – Key Plate (P/O PL 2.10 Item 7)
(REP 2.1)
12 – PBA SUB E-mail (P/O PL 2.10 Item
7) (REP 2.1)
13 002N02283 Cover Dummy E-mail (C20, M20)
14 – Cover M OPE (REF: PL 2.11 Item
1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
