Xerox WorkCentre M20 - 4.17 Main Frame Assembly (2 of 2)

December 2006
5-13
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 4.17
Parts Lists

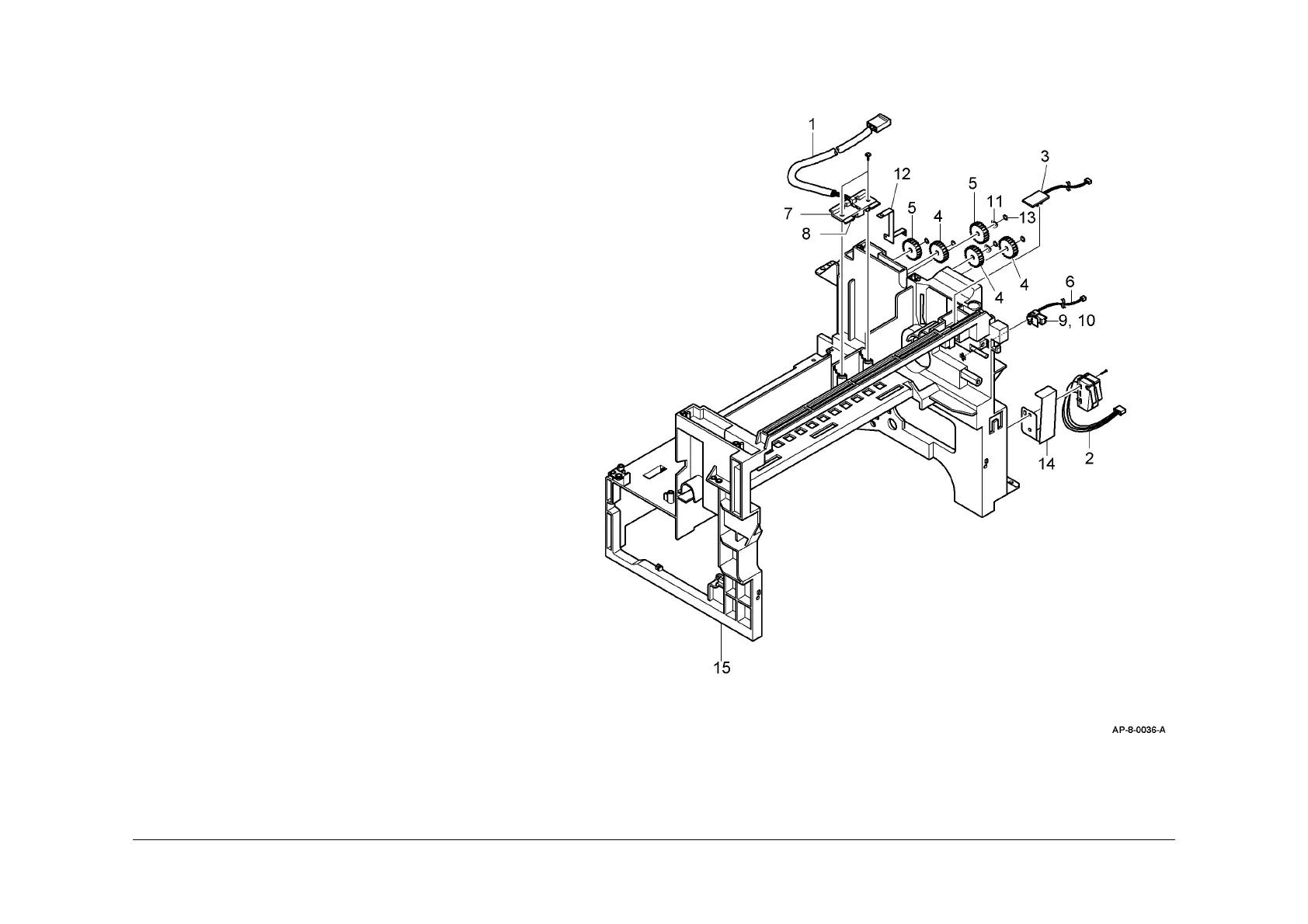

PL 4.17 Main Frame Assembly (2 of 2)
Item Part Description
1 152N11556 CBF Harness - AC Wire (M20F)
– 117N01751 CBF Harness - AC Wire (XE)
(4118)
– 117N01750 CBF Harness - AC Wire (XCL)
(USSG) (4118)
2 110N01041 CBF - Harness; Switch - Micro
(M20F)
– 152N11724 CBF - Harness; Switch - Micro
(4118, 2218)
3 130N01205 PBA SUB - Exit Sensor (M20F)
– 140N63199 PBA SUB - Exit Sensor (4118,
2218)
4 – Gear - Exit / U, ID (P/O PL 4.15
Item 1)
5 – Gear - Exit, Idle (Z17) (P/O PL 4.15
Item 1)
6 011N00463 CBF - Harness Thermistor Joint
7 – PMO - Housing Terminal (P/O PL
4.15 Item 1)
8 – IPR - Terminal Fuser (P/O PL 4.15
Item 1)
9 113N00364 PMO - CAP Connector L
10 113N00365 PMO - CAP Connector U
11 – Spring - Clutch (P/O PL 4.15 Item
1)
12 – IPR - GND Exit (P/O PL 4.15 Item
1)
13 – Ring - CS (P/O PL 4.15 Item 1)
14 – IPR - Guard C/O S/W (P/O PL 4.15
Item 1)
15 – PMO - Frame Main (P/O PL 4.15
Item 1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
