Xerox WorkCentre M20 - 2.11 OPE Assembly (2 of 2) (M20 F)

December 2006
5-8
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 2.11
Parts Lists

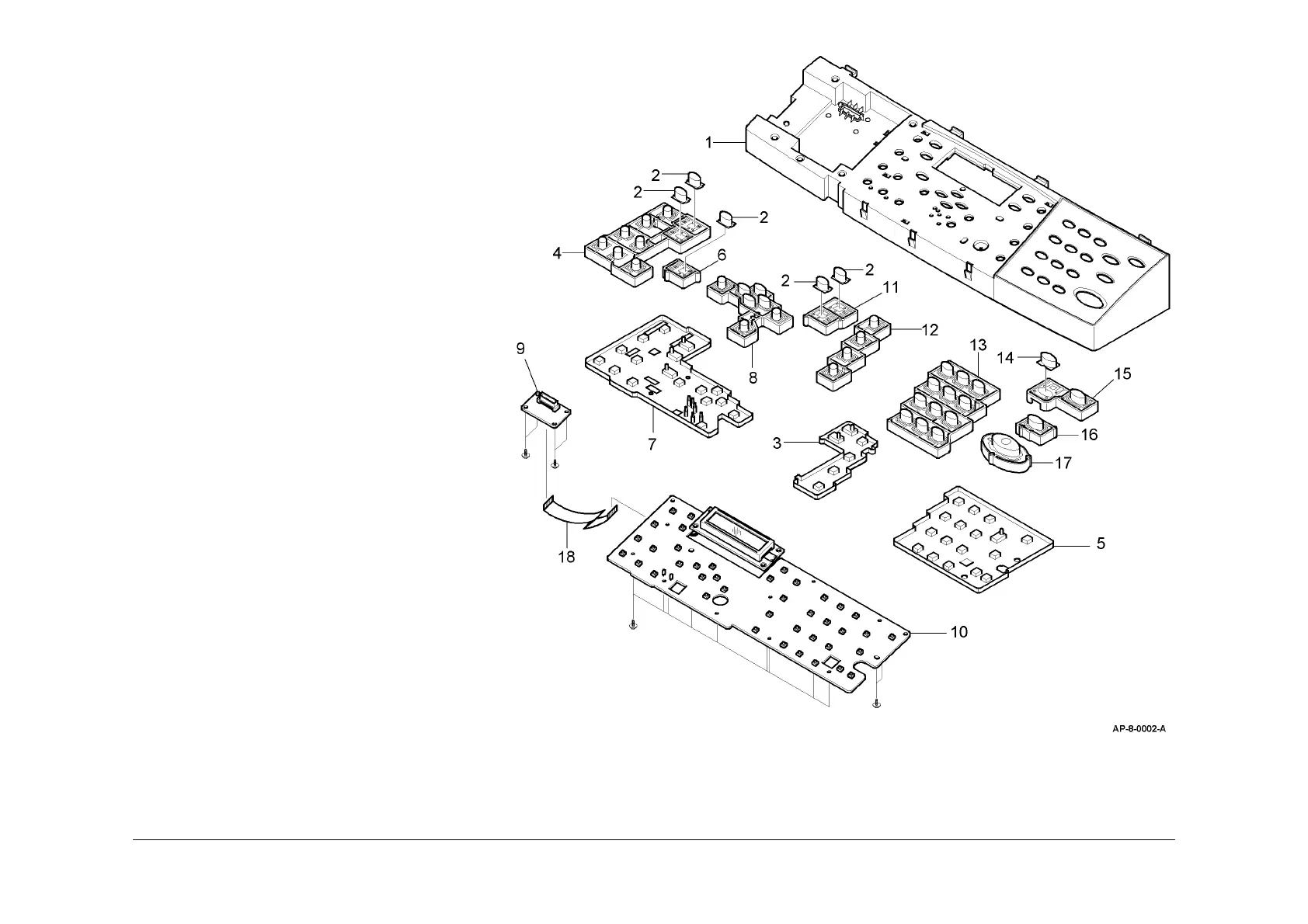

PL 2.11 OPE Assembly (2 of 2) (M20F)
Item Part Description
1 002N02282 Cover M OPE
2 018N00193 Indicator (REP 2.1)
3 029N00355 Rubber Scroll (A) (REP 2.1)
4 029N00345 Key M Copy (REP 2.1)
5 029N00356 Rubber Numerical (REP 2.1)
6 029N00346 Key M E-mail (REP 2.1)
7 029N00354 Rubber Copy (A) (REP 2.1)
8 029N00347 Key M Navigator (REP 2.1)
9 140N63172 PBA SUB - OPE Joint (W/TAG 050)
(REP 2.1)
– 140N62866 PBA SUB - OPE Joint (W/O TAG
050) (REP 2.1)
10 140N63171 PBA SUB - OPE (W/TAG 050)
(REP 2.1)
– 140N62865 PBA SUB - OPE (W/O TAG 050)
(REP 2.1)
11 029N00348 Key M Job Status (REP 2.1)
12 029N00349 Key M Manual (REP 2.1)
13 029N00350 Key M Numerical (REP 2.1)
14 018N00194 Indicator M Job Interrupt (REP 2.1)
15 029N00351 Key M Job Interrupt (REP 2.1)
16 029N00352 Key M Stop (REP 2.1)
17 029N00353 Key M Start (REP 2.1)
18 – CBF Signal - OPE FFC (Not
Spared)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
