Xerox WorkCentre M20 - REP 7.1 MEC Unit - Tray Assembly

December 2006
4-39
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 7.1
Repairs and Adjustments
REP 7.1 MEC Unit - Tray Assembly
Parts List on PL 8.11
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
NOTE: If necessary, refer to GP 20 for the acronym list and cross reference lists of more com-
monly recognised part names.

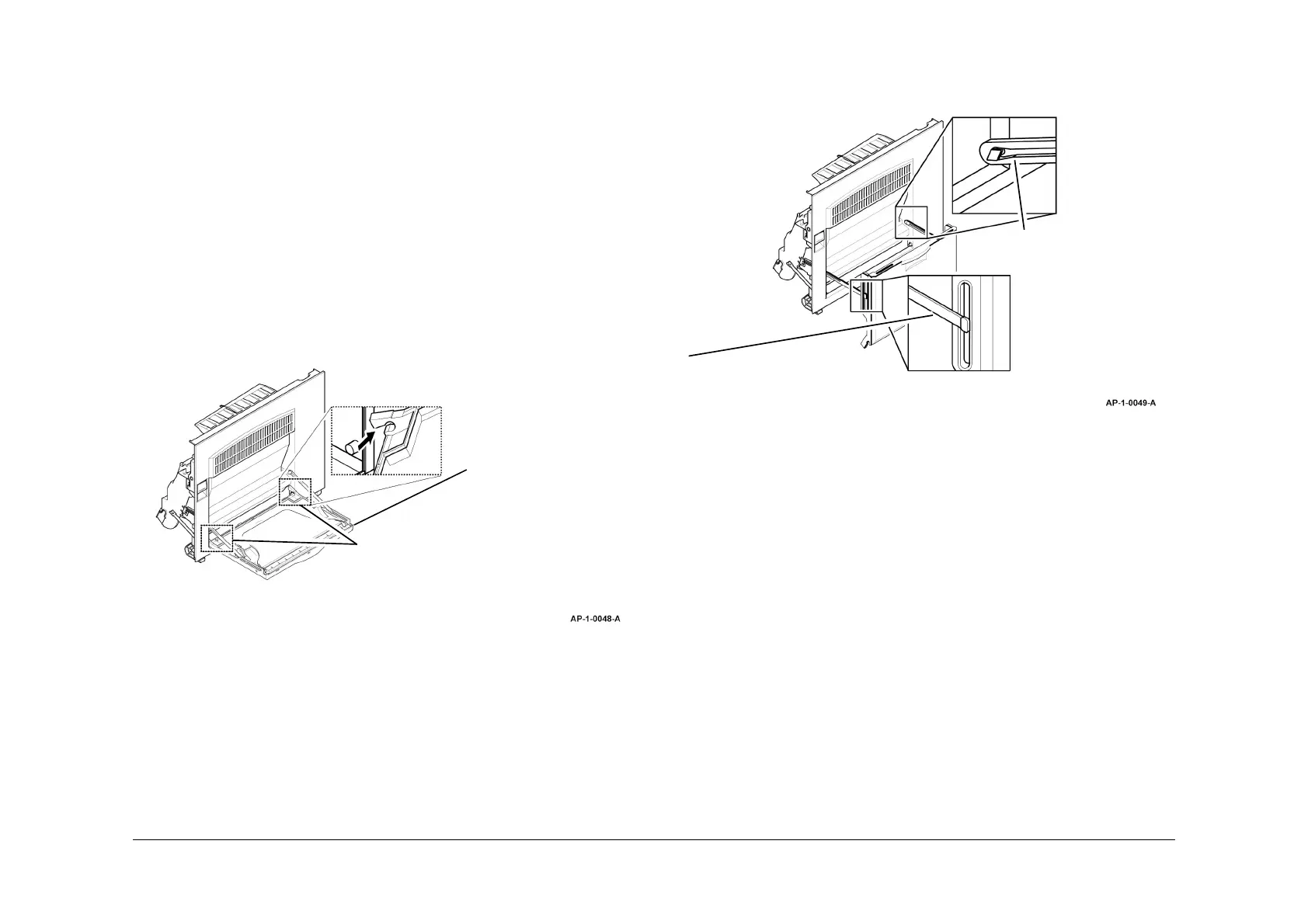

1. Prepare to remove the MEC unit - tray assembly, Figure 1.
Figure 1 Preparation
2. Remove the MEC unit - tray assembly and PMO - tray links, MP, Figure 2.
Figure 2 MEC unit - tray assembly removal
Replacement
Replacement is the reverse of the removal procedure.
2
Separate the front and rear hinges by carefully
pulling the MEC unit - tray assembly away from
the machine.
1
Fully open the MEC unit -
tray assembly.
1
While holding the MEC unit - tray
assembly vertically, disengage the front
and rear PMO - tray links, MP.
2
Remove the front and rear
PMO tray links, MP.
