WorkCentre M20, 4118, FaxCentre 2218 Family
REP 6.1
Repairs and Adjustments
3. Remove the unit - LSU, Figure 2.

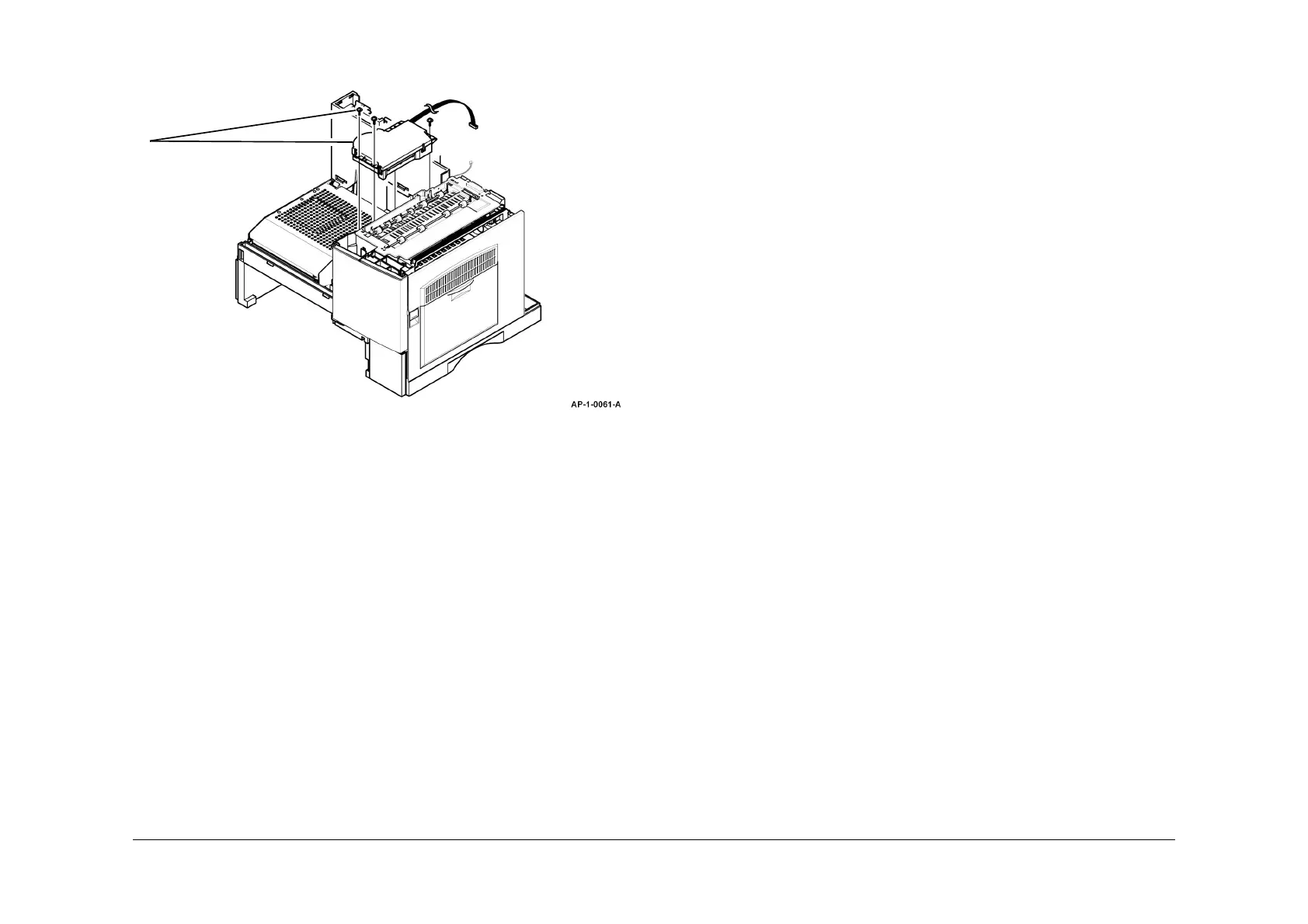

Figure 2 Unit - LSU removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove 3 screws, then the
unit - LSU.
