Xerox WorkCentre M20 - 5.22 ADF Assembly (2 of 3)

December 2006
5-22
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 5.22
Parts Lists

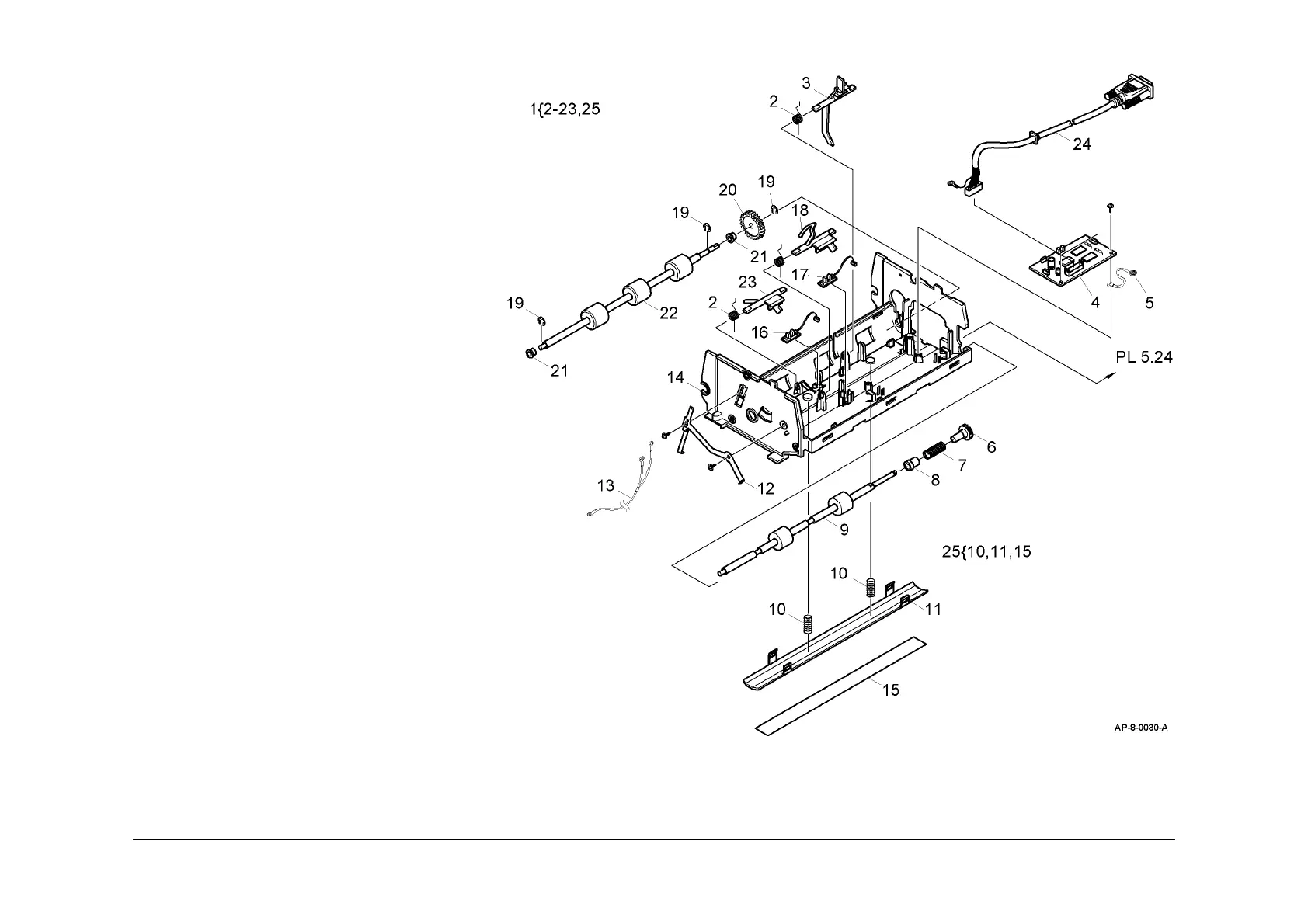

PL 5.22 ADF Assembly (2 of 3) (4118)
Item Part Description
1 038N00499 ELA HOU - ADF Lower Assembly
(REP 5.2)
2 – Spring ETC - Torsion DOC (CC2 -
F) (P/O PL 5.22 Item 1)
3 – PMO - Actuator Sensor
Registration (P/O PL 5.22 Item 1)
4 140N63191 PBA Sub - ADF
5 – CBF Harness - Driver GND (P/O PL
5.22 Item 1)
6 – Gear - Exit 23 (P/O PL 5.22 Item 1)
7 – Spring ETC - Clutch (P/O PL 5.22
Item 1)
8 – PMO - Bushing Holder (P/O PL
5.22 Item 1)
9 – MEC - Roller Exit (P/O PL 5.22 Item
1)
10 – Spring ETC - White Bar (P/O PL
5.22 Item 25)
11 025N00079 IPR - BRKT White Bar
12 – NPR - Spring GND (P/O PL 5.22
Item 1)
13 – CBF Harness - ADF Roller GND (P/
O PL 5.22 Item 1)
14 – PMO - Cover ADF Lower (P/O PL
5.22 Item 1)
15 025N00080 PPR - White Bar Sheet
16 130N01199 PBA Sub - ADF Present Sensor (P/
O PL 5.22 Item 1)
17 130N01200 PBA Sub - ADF Detect Sensor (P/O
PL 5.22 Item 1)
18 – PMO - Actuator Sensor Detect (P/O
PL 5.22 Item 1)
19 – E - Clip (P/O PL 5.22 Item 1)
20 – Gear - ADF 38 (P/O PL 5.22 Item 1)
21 – PMO - Bush (P/O PL 5.22 Item 1)
22 – MEC - Roller Driver (P/O PL 5.22
Item 1)
23 – PMO - Actuator Sensor Present (P/
O PL 5.22 Item 1)
24 – CBF D Sub Cable - ADF_ Main
Cable (P/O PL 5.20 Item 1)
25 – White bar assembly (P/O PL 5.22
Item 1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
