December 2006
5-4
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 1.12
Parts Lists

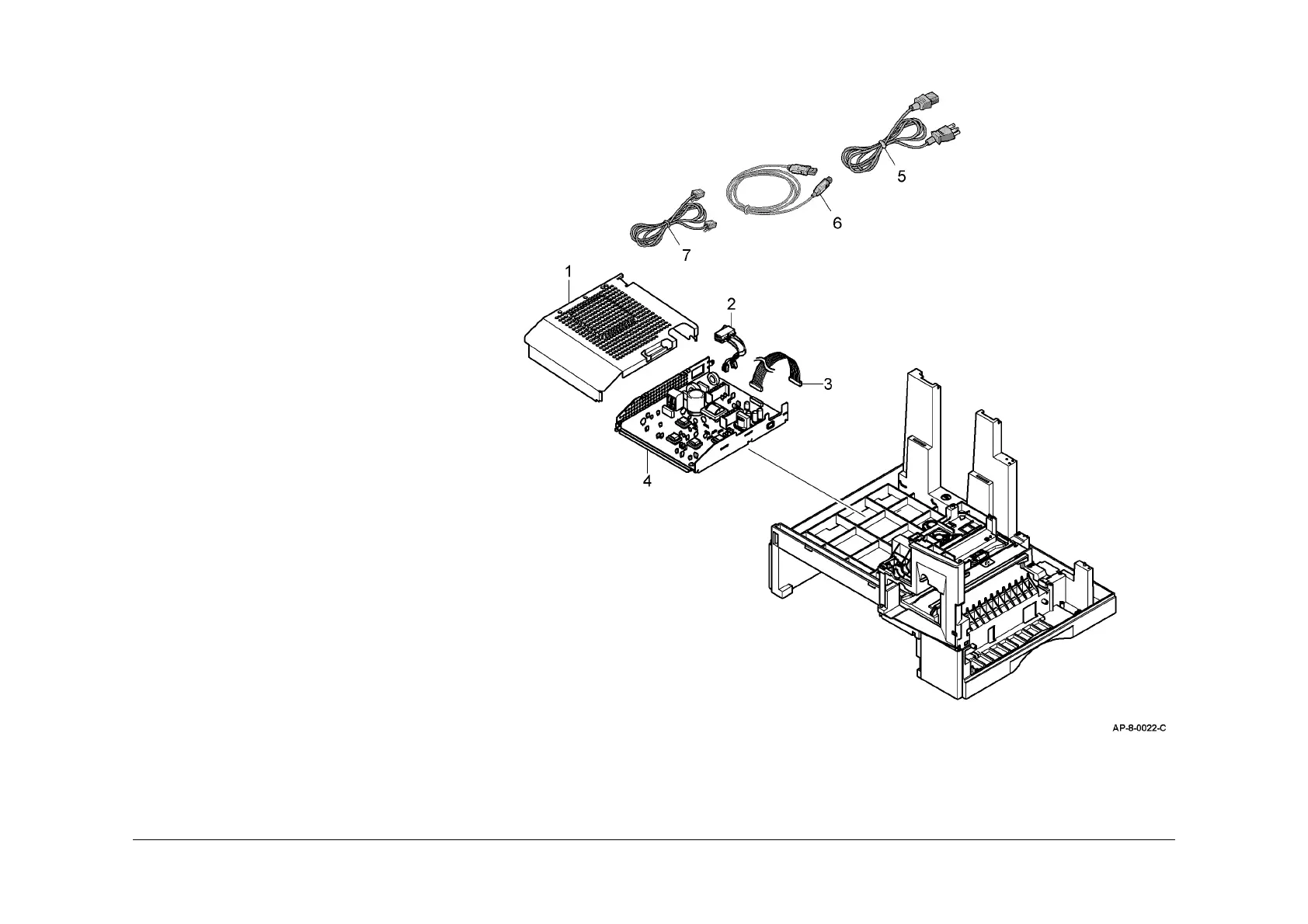

PL 1.12 SMPS and PBA Main (M20F)
(2 of 2)
Item Part Description
1 IPR - Shield SMPS Upper (Not
Spared) (REP 1.1)
2 152N11548 CBF Power Switch Grey
3 152N11550 CBF Harness - Power + HVPS
4 140N62860 SMPS + HVPS (XE) (REP 1.1)
140N62859 SMPS + HVPS (USSG/XCL) (REP
1.1)
5 117N01602 AC Power Cord (USSG/XCL)
6 117N01313 USB Cable
7 117N01620 Telephone Line Cord (USSG/XCL)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
