Xerox WorkCentre M20 - PL 4.25 Covers

December 2006
5-15
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 4.25
Parts Lists

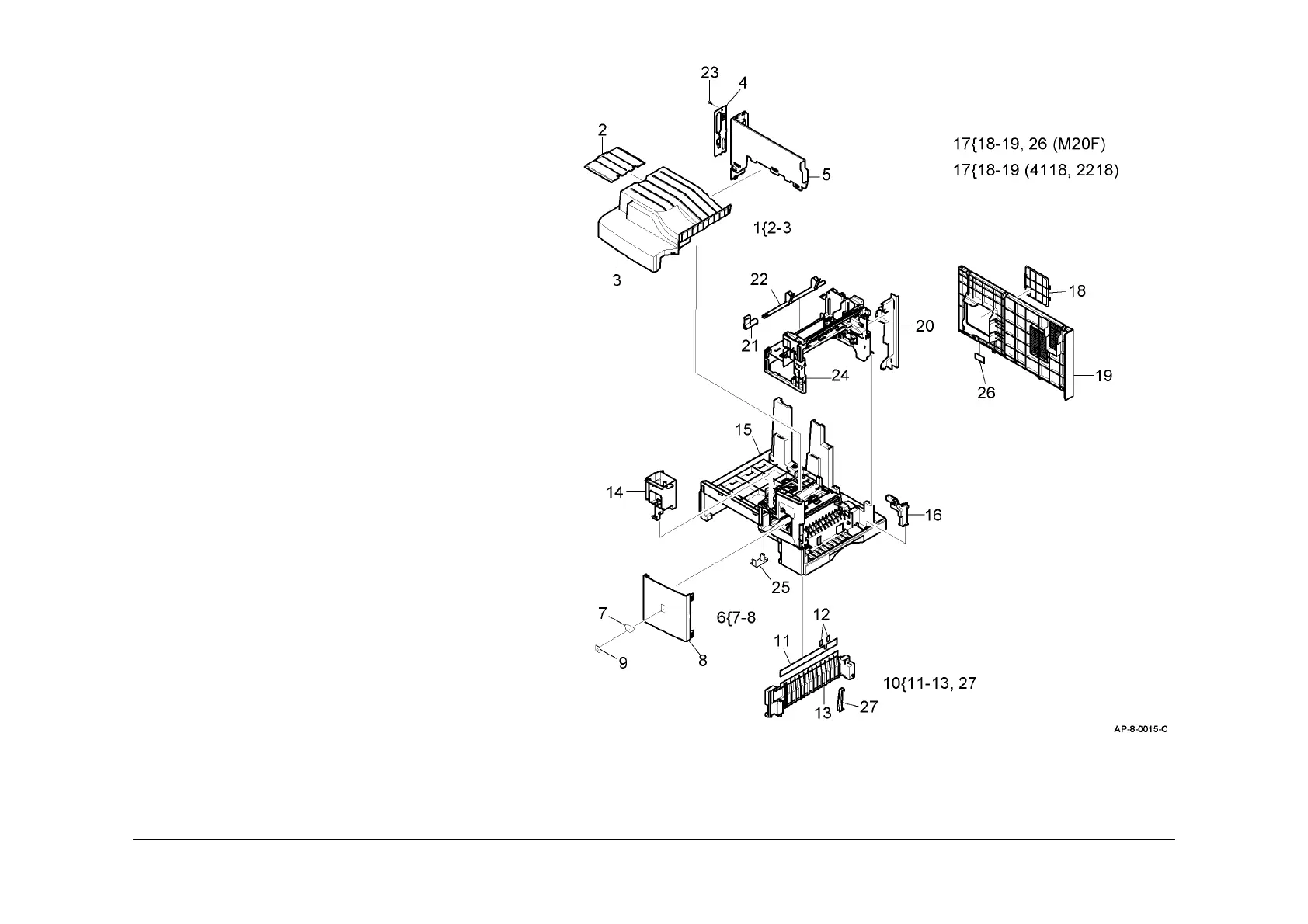

PL 4.25 Covers
Item Part Description
1 002N02107 MEA Unit - Cover PA Exit Assembly
2 050N00392 PMO - Tray Extension MP NE
3 – PMO - Cover Paper Exit (P/O PL
4.25 Item 1) (REP 10.3)
4 – PMO - Connect Paper MFP (Not
Spared)
5 002N02009 PMO Cover Exit Rear (REP 4.3)
6 002N02161 MEA Unit - Cover Front Assembly
7 – Plate - Badge (P/O PL 4.25 Item 6)
8 – Cover - M - Front (P/O PL 4.25 Item
6)
9 091N00699 IPR - Badge
10 001N00384 MEA Unit Guide CST PA Assembly
11 – PMO - Sheet Guide Paper (P/O PL
4.25 Item 10)
12 – Mylar Strip (P/O PL 4.25 Item 10)
13 – PMO - Guide Cassette Rail (P/O PL
4.25 Item 10)
14 001N00451 PMO - Dummy Base Frame (M20F)
– 001N00482 PMO - Dummy Base Frame (4118,
2218)
15 – ELA HOU - Base Frame Assembly
(Not Spared)
16 – PMO - Cover Feed (Not Spared)
(REP 8.4)
17 002N02280 MEA Unit - Rear Cover (M20F)
(REP 4.2)
– 002N02686 MEA Unit - Rear Cover (4118,
2218) (REP 4.2)
18 – Cover Rear Dummy (P/O PL 4.25
Item 17)
19 – Cover - Main - Rear (P/O PL 4.25
Item 17)
20 002N02017 Cover Bracket Motor
21 011N00465 PMO - Lever Jam Remove
22 011N00464 PMO - CAM Jam Remove
23 – Special Screw (Panel MFP) (Not
Spared)
24 – ELA HOU - Frame Main Assembly
(REF: PL 4.15 Item 1)
25 038N00371 PMO - Guide Paper Out
26 – Label - Guide DIMM (P/O PL 4.25
Item 17)
27 – IPR - Guide CST Paper (P/O PL
4.25 Item 10)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
