Xerox WorkCentre M20 - PL 7.10 Tray 1 Cassette Assembly

December 2006
5-26
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 7.10
Parts Lists

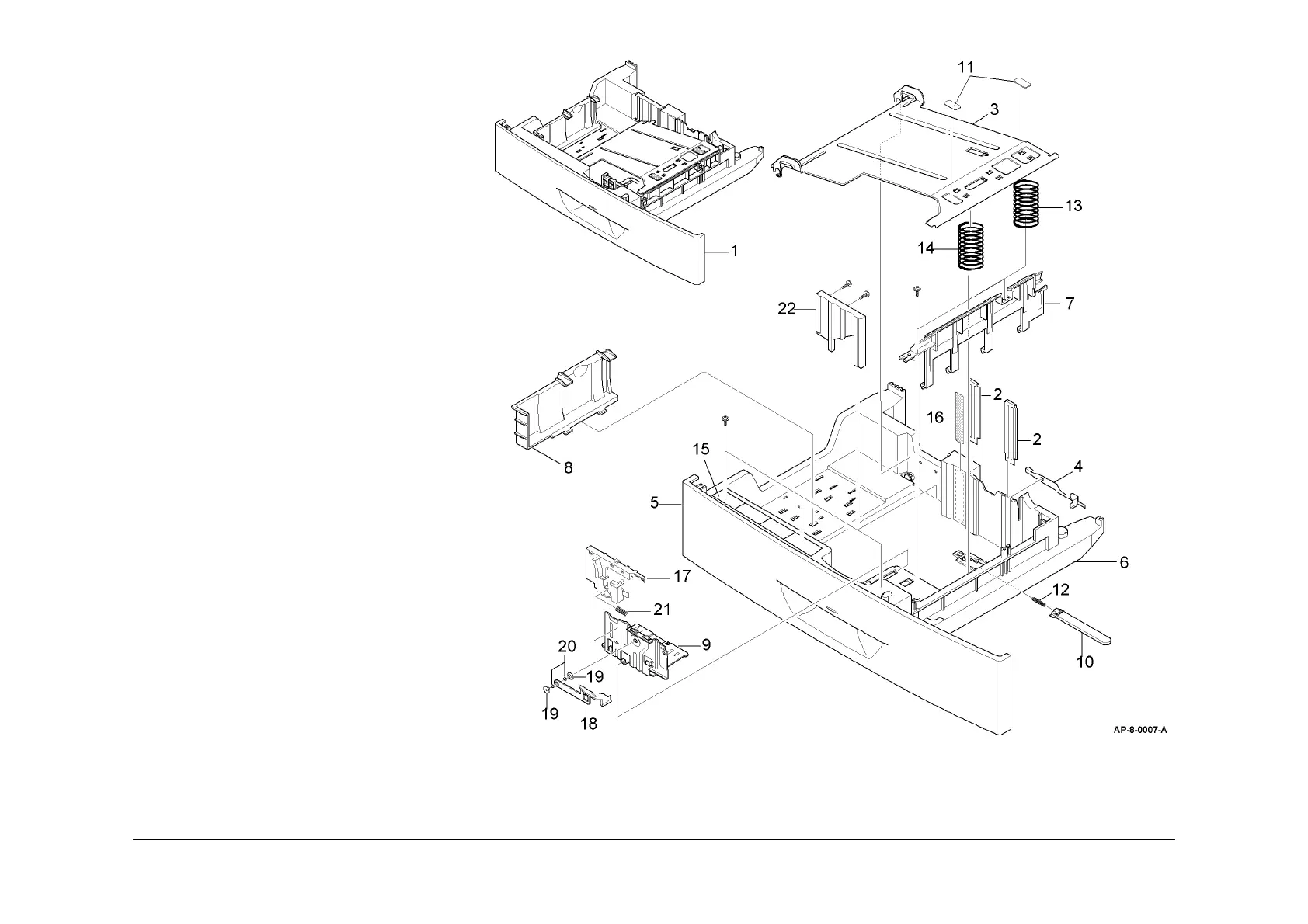

PL 7.10 Tray 1 Cassette Assembly
Item Part Description
1 050N00442 Mec - Cassette Assembly (A4)
– 050N00441 Mec- Cassette Assembly (Letter)
2 – Plate Guide Paper (P/O PL 7.10
Item 1)
3 – IPR - Plate K/UP (P/O PL 7.10 Item
1)
4 – IPR Finger Right (P/O PL 7.10 Item
1)
5 – PMO - Cover Cassette (P/O PL
7.10 Item 1)
6 – PMO - Frame Cassette (P/O PL
7.10 Item 1)
7 – Guide Front CST Plus (P/O PL 7.10
Item 1)
8 032N00351 PMO - Guide Rear
9 – Guide Side CST (P/O PL 7.10 Item
1)
10 – PMO - Locker Plate (P/O PL 7.10
Item 1)
11 – Pad - CST Plus (P/O PL 7.10 Item
1)
12 – Spring - Locker Plate (P/O PL 7.10
Item 1)
13 009N01465 Spring CS RE
14 009N01466 Spring CS FR
15 091N80204 Label (R) - Instruction CST Plus
16 091N80205 Label (R) - Height CST
17 – Guide Side Handle (P/O PL 7.10
Item 1)
18 – IPR Finger Left (P/O PL 7.10 Item
1)
19 – PMO - Bushing Finger F (P/O PL
7.10 Item 1)
20 – Washer Plain (P/O PL 7.10 Item 1)
21 – Spring White Bar (P/O PL 7.10 Item
1)
22 – Guide Sub Wall (P/O PL 7.10 Item
1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
