Xerox WorkCentre M20 - 5.14 DADF Assembly (5 of 5) (M20 F, 2218)

December 2006
5-20
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 5.14
Parts Lists

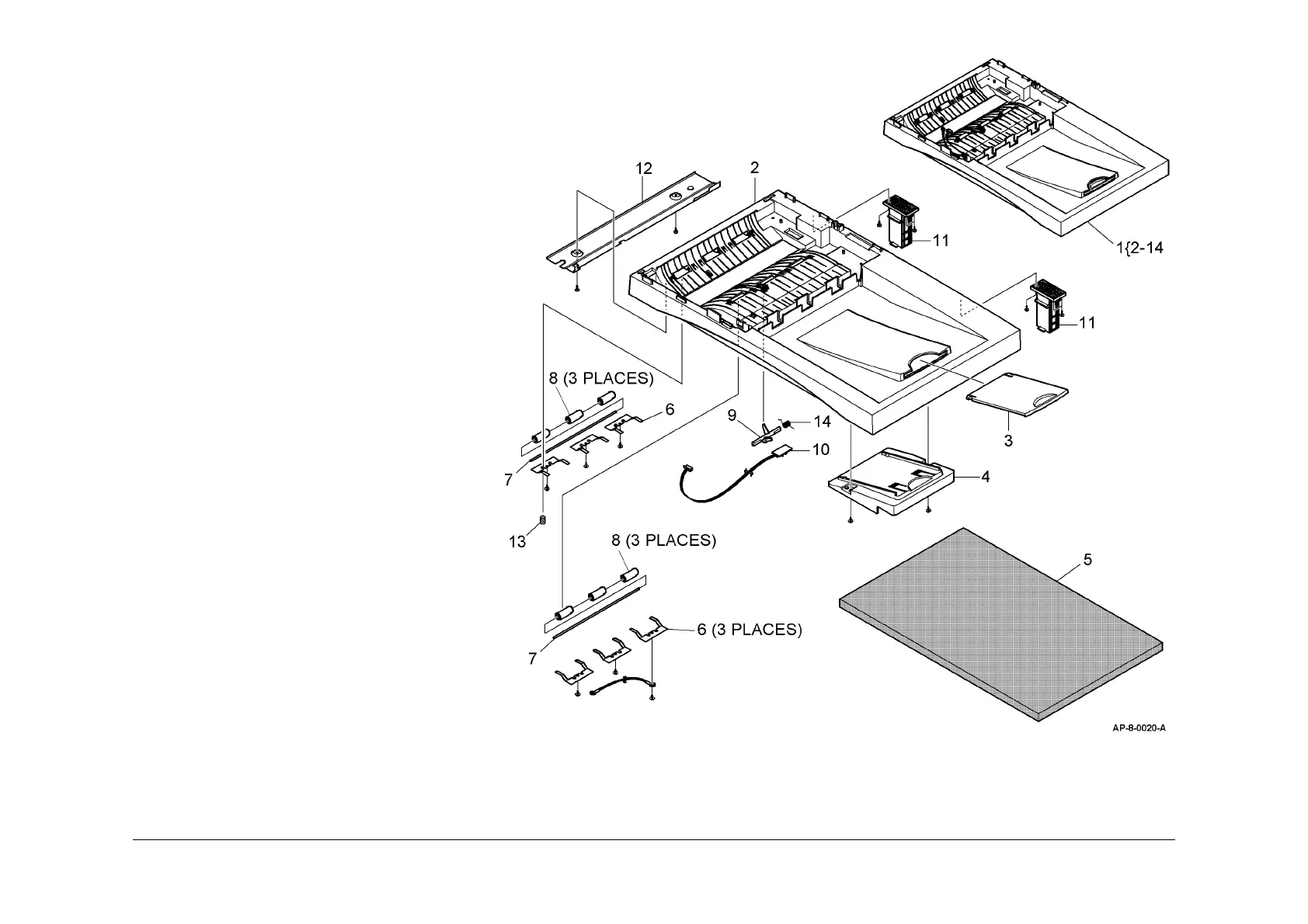

PL 5.14 DADF Assembly (5 of 5)
(M20F, 2218)
Item Part Description
1 002N02285 ELA Unit - Platen Cover (REF: PL
5.10 Item 28)
2 – PMO - Cover Platen (C) (P/O PL
5.14 Item 1)
3 – PMO - Extension Platen (P/O PL
5.14 Item 1)
4 – Guide - M Extension (P/O PL 5.14
Item 1)
5 025N00081 DADF Document Cushion
6 – IPR - P Pinch (Scan) (P/O PL 5.14
Item 1)
7 006N01241 Shaft - Pinch
8 022N01511 PMO - Roll Pinch
9 130N01201 PMO - Actuator Gate
10 140N62868 PBA Sub - Gate
11 003N00967 MEA Unit - Hinge Assembly
12 – Plate - P - Dummy Platen (P/O PL
5.14 Item 1)
13 – Spring ETC - Charge (P/O PL 5.14
Item 1)
14 – Spring ETC - Torsion DOC (P/O PL
5.14 Item 1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
