Xerox WorkCentre M20 - 8.10 Side Cover Assembly (1 of 3)

December 2006
5-29
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 8.10
Parts Lists

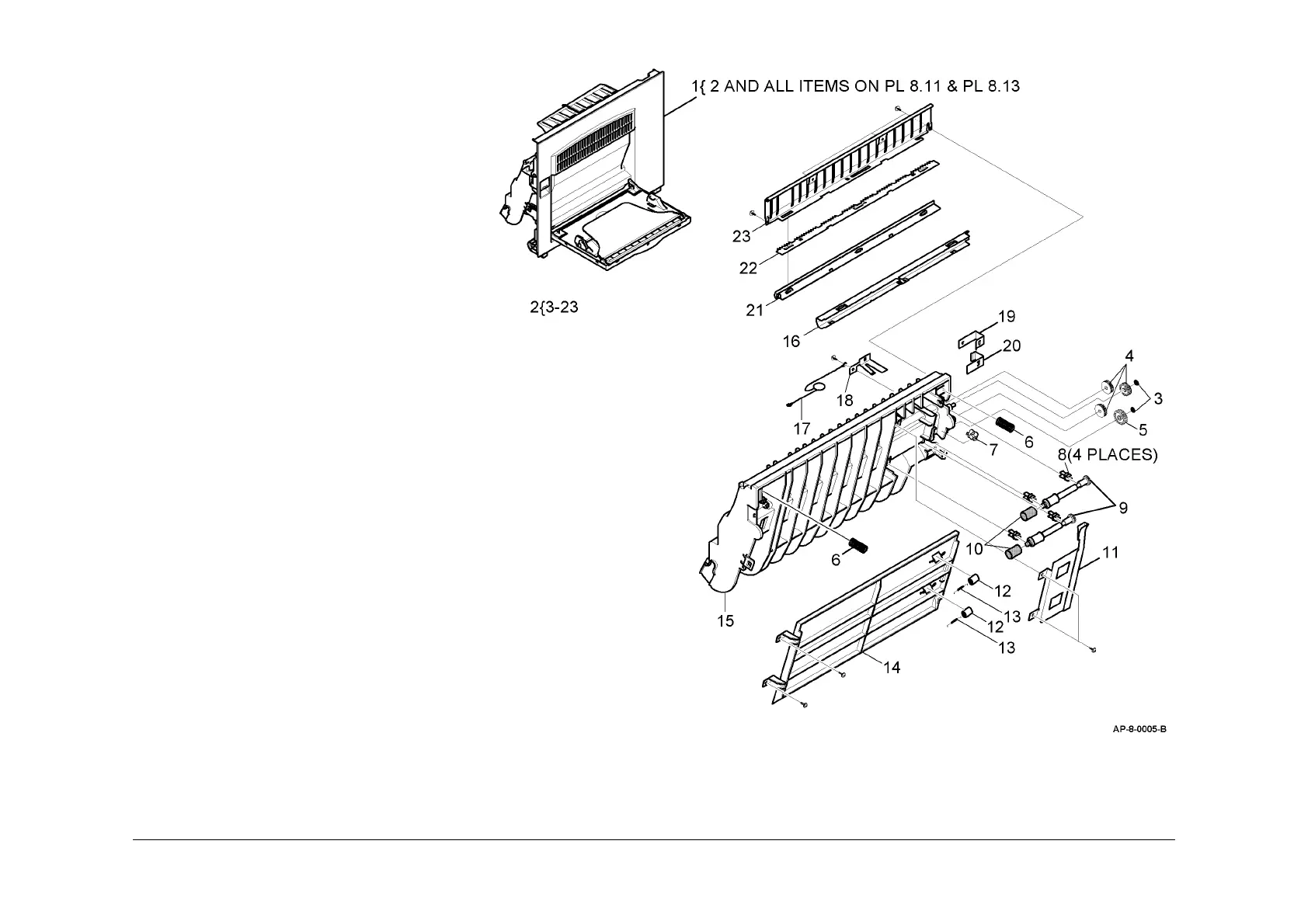

PL 8.10 Side Cover Assembly (1 of 3)
Item Part Description
1 002N02589 ELA HOU - Side Cover Assembly
2 022N02057 MEA Unit - Duplex Assembly (REP
8.2)
3 – Ring - CS (Not Spared)
4 – Gear - Dup Idler 17 (P/O PL 8.10
Item 2)
5 – Gear - MP/DUP DRV (P/O PL 8.10
Item 2)
6 – Spring Feed (P/O PL 8.10 Item 2)
7 – PMO - Bushing Feed (P/O PL 8.10
Item 2)
8 – PMO - Bushing TX (B4) (P/O PL
8.10 Item 2)
9 – PMO - Shaft DUP Driver (P/O PL
8.10 Item 2)
10 – RPR - Rubber Exit (P/O PL 8.10
Item 2)
11 – IPR - BRKT G DUP (P/O PL 8.10
Item 2)
12 – PMO - Roller Exit (P/O PL 8.10
Item 2)
13 – Spring Fuser Exit (P/O PL 8.10 Item
2)
14 – PMO - GP Lower DP (P/O PL 8.10
Item 2)
15 – PMO - Feed Frame (P/O PL 8.10
Item 2)
16 – IPR - Bracket Guide B (P/O PL 8.10
Item 2)
17 – CBF Harness - OPE GND (P/O PL
8.10 Item 2)
18 – IPR - BRKT Ground B (P/O PL 8.10
Item 2)
19 – IPR - BRKT Ground A (P/O PL 8.10
Item 2)
20 – IPR - BRKT Ground TR (P/O PL
8.10 Item 2)
21 – PMO - Holder Saw (P/O PL 8.10
Item 2)
22 – IPR - Plate saw (P/O PL 8.10 Item
2)
23 – IPR - BRKT Guide A (P/O PL 8.10
Item 2)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
