Xerox WorkCentre M20 - 8.11 Side Cover Assembly (2 of 3)

December 2006
5-30
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 8.11
Parts Lists

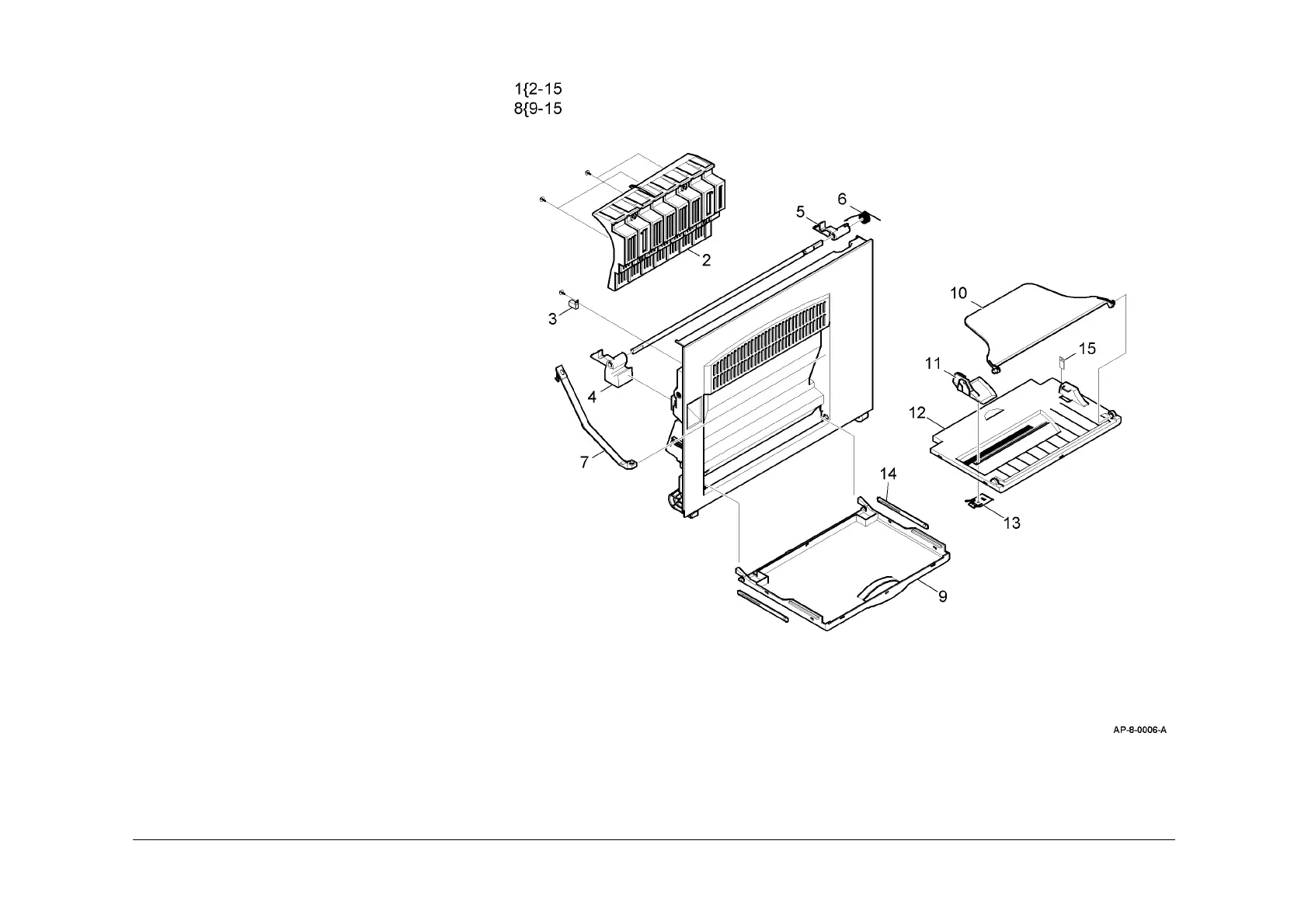

PL 8.11 Side Cover Assembly (2 of 3)
Item Part Description
1 050N00445 MEA Unit - Side SUB Assembly
2 – PMO - Guide DP Side (P/O PL 8.11
Item 1)
3 – Guide Side Push (P/O PL 8.11 Item
1)
4 – PMO - Locker Open (P/O PL 8.11
Item 1)
5 – PMO - Locker Side R (P/O PL 8.11
Item 1)
6 – Spring - Locker Torsion (P/O PL
8.11 Item 1)
7 120N00394 PMO - Tie Stopper
8 050N00496 MEA Unit - Tray Assembly (REP
7.1)
9 – PMO - Tray Case, MP (P/O PL 8.11
Item 8)
10 – PMO - Side Exit, MP (P/O PL 8.11
Item 8)
11 – PMO - Side Guide, MP (P/O PL
8.11 Item 8)
12 – PMO - Tray Cover, MP (P/O PL
8.11 Item 8)
13 – IPR - Guide Latch, MP (P/O PL
8.11 Item 8)
14 012N00139 PMO - Tray Link, MP
15 – Label (R) - Height, MP (P/O PL 8.11
Item 8)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
