Xerox WorkCentre M20 - REP 2.3 ELA HOU OPE Assembly (2218)

December 2006
4-17
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 2.3
Repairs and Adjustments
REP 2.3 ELA HOU OPE Assembly (2218)
Parts List on PL 2.18
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
NOTE: If necessary, refer to GP 20 for the acronym list and cross reference lists of more com-
monly recognised part names.
NOTE: This procedure should only be performed on the 2218. For the M20F ELA HOU OPE
assembly repair procedure, go to REP 2.1. For the 4118 ELA HOU OPE assembly repair pro-
cedure, go to REP 2.2.
1. Remove the ELA HOU scanner assembly, perform REP 14.1, steps 1 through 9.

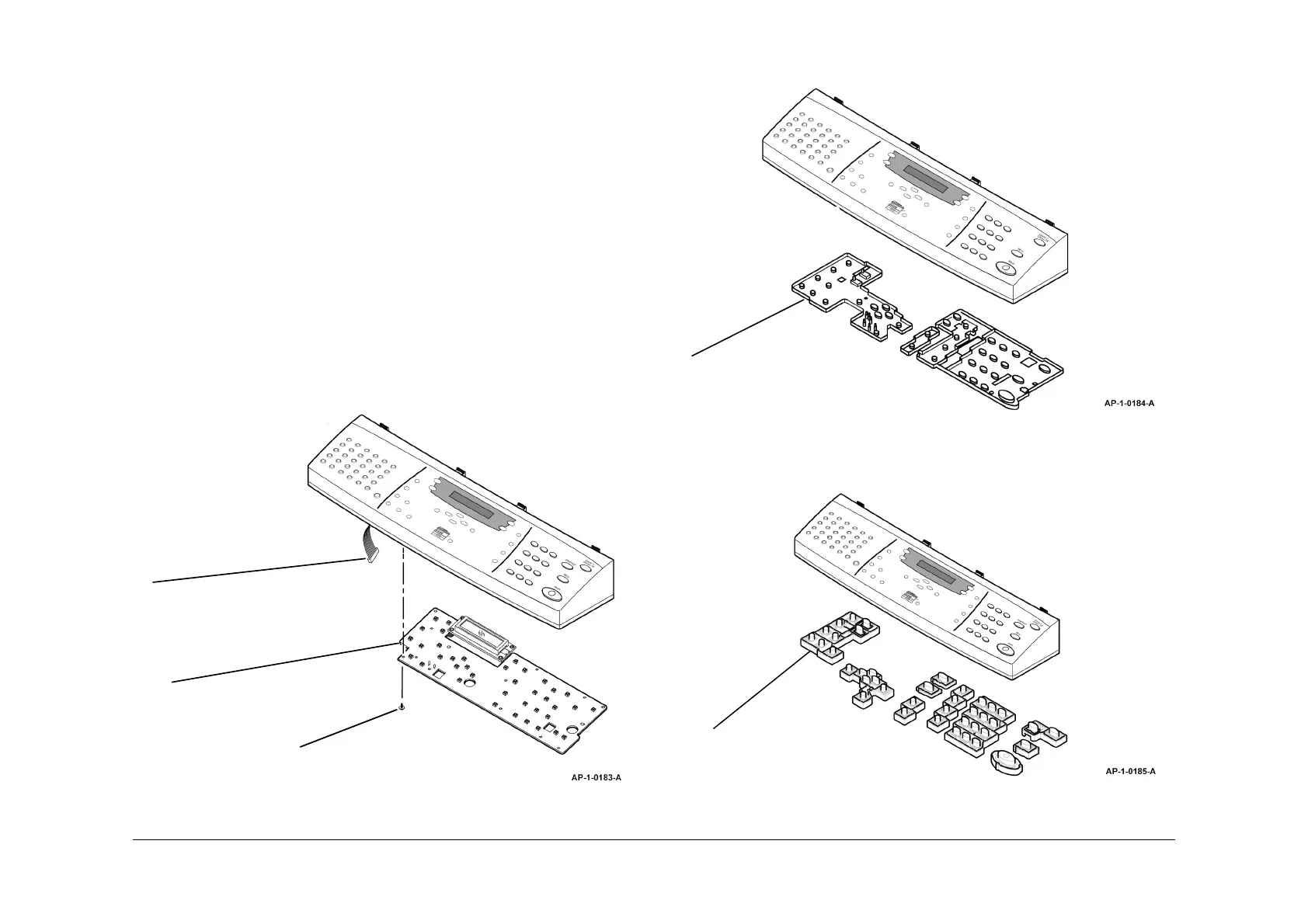

2. Remove the PBA SUB - OPE, Figure 1.
Figure 1 PBA SUB - OPE removal
3. Remove the Rubber-copy and Rubber-numerical, Figure 2.
Figure 2 Rubber contacts removal
4. Remove the key pads, Figure 3.
Figure 3 Key pads removal
3
Carefully remove the PBA
SUB -OPE.
2
Remove 13 screws.
1
Disconnect the ribbon cable
from CN3 on the PBA SUB -
OPE.
1
Remove the rubber contacts.
1
Remove the key pads.
