December 2006
4-18
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 2.3
Repairs and Adjustments

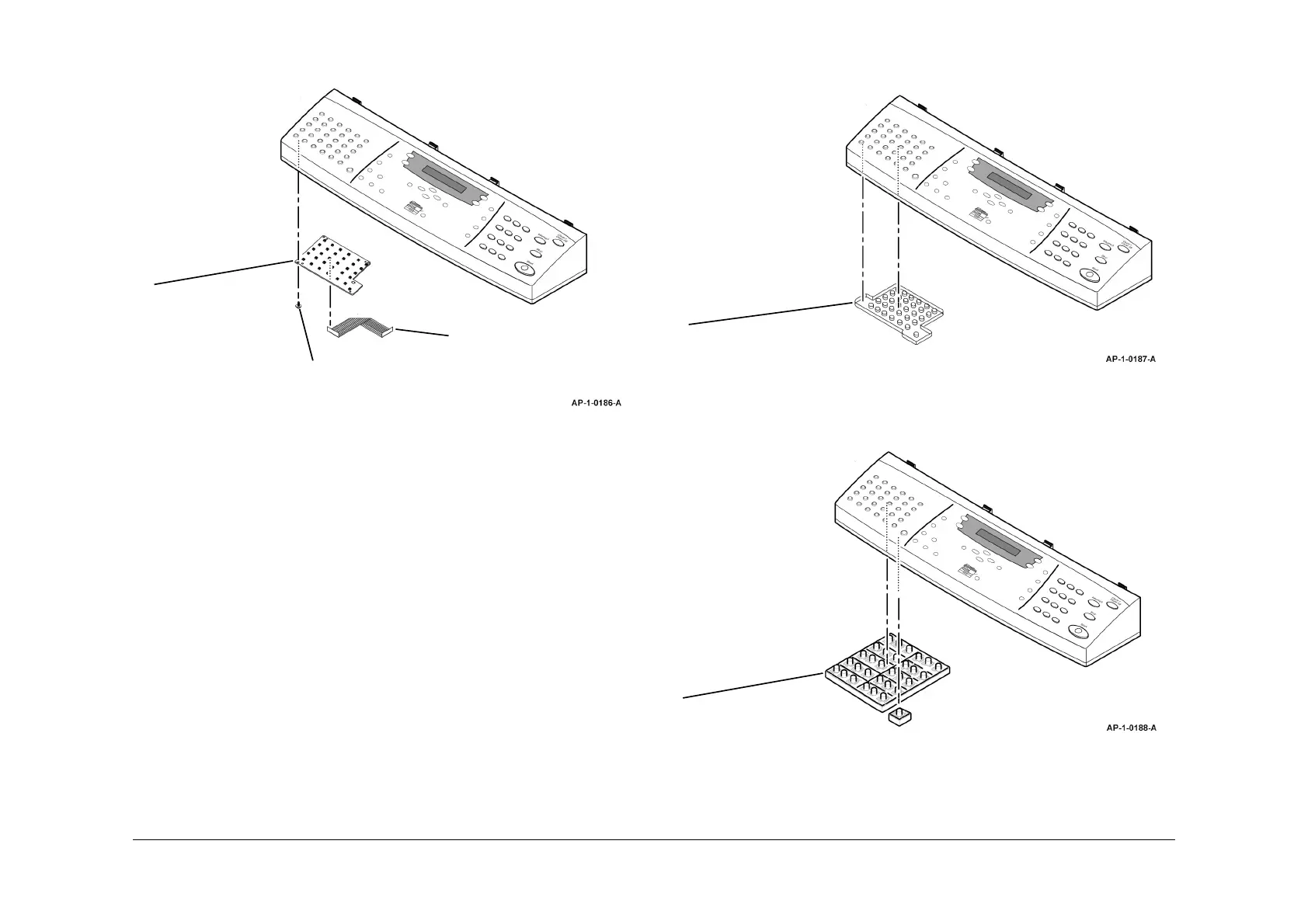

5. Remove the PBA SUB - one touch, Figure 4.
Figure 4 PBA SUB - one touch removal
6. Remove the rubber - one touch, Figure 5.
Figure 5 Rubber contact removal
7. Remove the key pads, Figure 6.
Figure 6 Key pads removal
Replacement
Replacement is the reverse of the removal procedure.
3
Remove the PBA SUB - one
touch.
2
Remove 5screws.
1
Disconnect the ribbon cable.
1
Remove the rubber contact.
emove the key pads.
To Next Page
