Xerox WorkCentre M20 - PL 8.15 Feeder Assembly

December 2006
5-32
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 8.15
Parts Lists

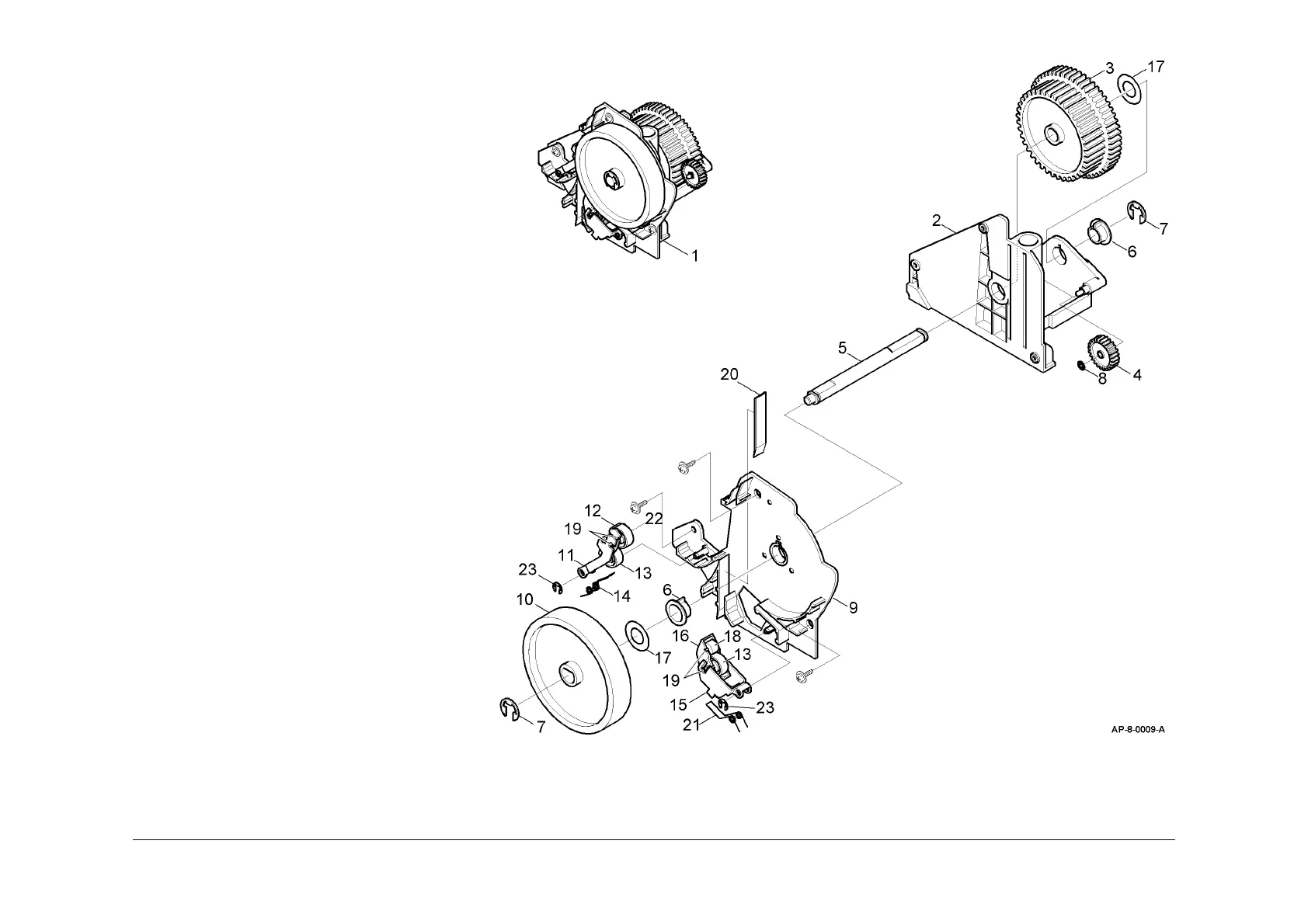

PL 8.15 Feeder Assembly
Item Part Description
1 022N02056 MEA Unit - Feed Roller Assembly
(REP 8.5)
2 – PMO - Frame Feed (P/O PL 8.15
Item 1)
3 – Gear - Feed (P/O PL 8.15 Item 1)
4 – Gear - MP/DUP DRV (P/O PL 8.15
Item 1)
5 – ICT - Shaft Feed (P/O PL 8.15 Item
1)
6 – PMO - Bushing P/U, MP (P/O PL
8.15 Item 1)
7 – Ring - E (P/O PL 8.15 Item 1)
8 – Ring - CS (P/O PL 8.15 Item 1)
9 – PMO - BRKT Feed (P/O PL 8.15
Item 1)
10 022N01470 PMO - Roller Feed
11 – PMO - Holder Pinch C (P/O PL 8.15
Item 1)
12 – PMO - Holder Pinch SUB (P/O PL
8.15 Item 1)
13 – PMO - Roller Feed L (P/O PL 8.15
Item 1)
14 – Holder Push Feed CST (P/O PL
8.15 Item 1)
15 – PMO - Holder Pinch M (P/O PL
8.15 Item 1)
16 – PMO - SUB Holder Feed (P/O PL
8.15 Item 1)
17 – Washer - Plain (P/O PL 8.15 Item
1)
18 – PMO - Roller Feed S (P/O PL 8.15
Item 1)
19 – IPR - Shaft Feed Idler (P/O PL 8.15
Item 1)
20 – Sheet Feed (P/O PL 8.15 Item 1)
21 – Spring - Feed MP Feed (P/O PL
8.15 Item 1)
22 – PMO Roller Pinch Feed (P/O PL
8.15 Item 1)
23 – E - Clip (P/O PL 8.15 Item 1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
