Xerox WorkCentre M20 - 5.10 DADF Assembly (1 of 5) (M20 F, 2218)

December 2006
5-16
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 5.10
Parts Lists

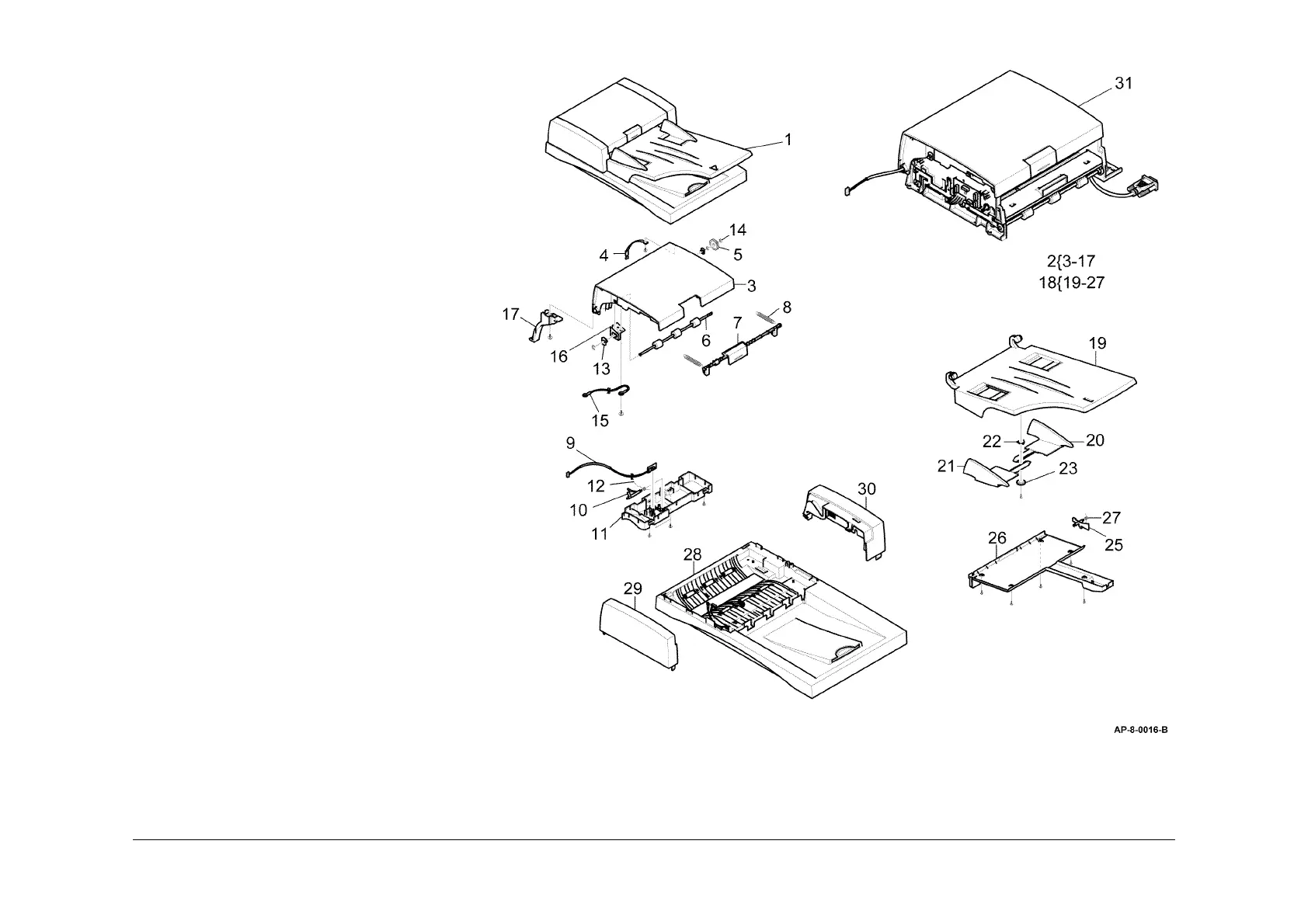

PL 5.10 DADF Assembly (1 of 5)
(M20F, 2218)
Item Part Description
1 002N02275 ELA HOU - DADF (REP 5.1) (ADJ
5.1)
2 002N02288 MEA Unit - Cover Open (REP 5.1)
3 – Cover - M Open (P/O PL 5.10 Item
2)
4 – PMO Stopper Exit (P/O PL 5.10
Item 2)
5 – Gear - DADF 24 (A) (P/O PL 5.10
Item 2)
6 – Roller - REGI (P/O PL 5.10 Item 2)
7 – PMO - Lever Open (P/O PL 5.10
Item 2)
8 – Spring ETC - Knockup, MP (P/O PL
5.10 Item 2)
9 140N62869 PBA SUB - REGI
10 – PMO - Actuator REGI (P/O PL 5.10
Item 2)
11 – Cover - M Sensor (P/O PL 5.10
Item 2)
12 – Spring ETC - Torsion DOC (P/O PL
5.10 Item 2)
13 – Bush - 6D (P/O PL 5.10 Item 2)
14 – Ring - E (Not Spared)
15 – CBF Harness - LIU GND (P/O PL
5.10 Item 2)
16 – Ground - P Duplex (P/O PL 5.10
Item 2)
17 – Cover - M - Harness (P/O PL 5.10
Item 2)
18 050N00443 MEA Unit - TX Stacker (REP 5.1)
19 – PMO - TX Stacker (P/O PL 5.10
Item 18)
20 – Guide - M DOC Left (P/O PL 5.10
Item 18)
21 – Guide - M DOC Right (P/O PL 5.10
Item 18)
22 – IPR - Washer Spring CU (P/O PL
5.10 Item 18)
23 – PMO - Gear Pinion (P/O PL 5.10
Item 18)
24 – Not used
25 120N00438 PMO - Actuator Length
26 – PMO - TX Stacker Lower (P/O PL
5.10 Item 18)
27 – Spring ETC - Torsion DOC (CC-F)
(P/O PL 5.10 Item 18)
28 – ELA Unit - Platen Cover (REF: PL
5.14 Item 1)
29 002N02286 Front Cover
30 002N02287 Rear Cover
31 002N02291 ELA HOU - DADF SUB (P/O PL
5.10 Item 1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
