Xerox WorkCentre M20 - Rep 5.2 Ela Hou - Adf (4118)

December 2006
4-32
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 5.2
Repairs and Adjustments
REP 5.2 ELA HOU - ADF (4118)
Parts List on PL 5.20, PL 5.22, PL 5.24
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
NOTE: If necessary, refer to GP 20 for the acronym list and cross reference lists of more com-
monly recognised part names.

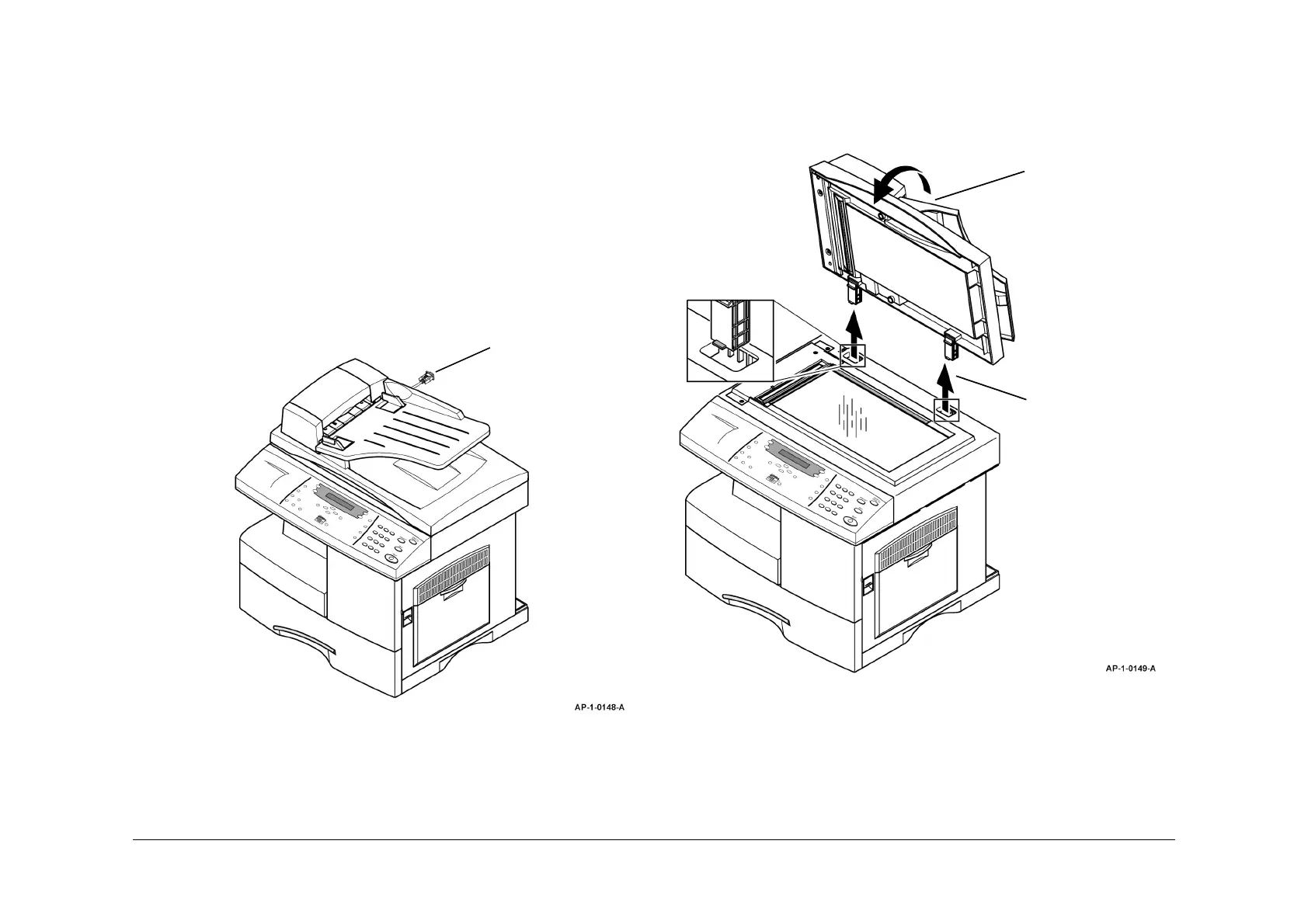

1. Disconnect the CBF D SUB cable - ADF main, Figure 1.
Figure 1 CBF harness - DSUB
2. Raise the ELA HOU - ADF.
WARNING
Do not remove the ADF while the ADF is lowered. In the lowered position the counter-
balance springs are compressed and can cause injury when released.
3. Remove the ELA HOU - ADF, Figure 2. Place the ELA HOU - ADF on a solid flat surface.
Figure 2 ELA HOU - ADF removal
CBF D SUB cable - ADF
main.
1
Pull up the ELA HOU -
ADF.
2
Tilt the ELA - HOU ADF
forward then remove.
