December 2006
4-33
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 5.2
Repairs and Adjustments

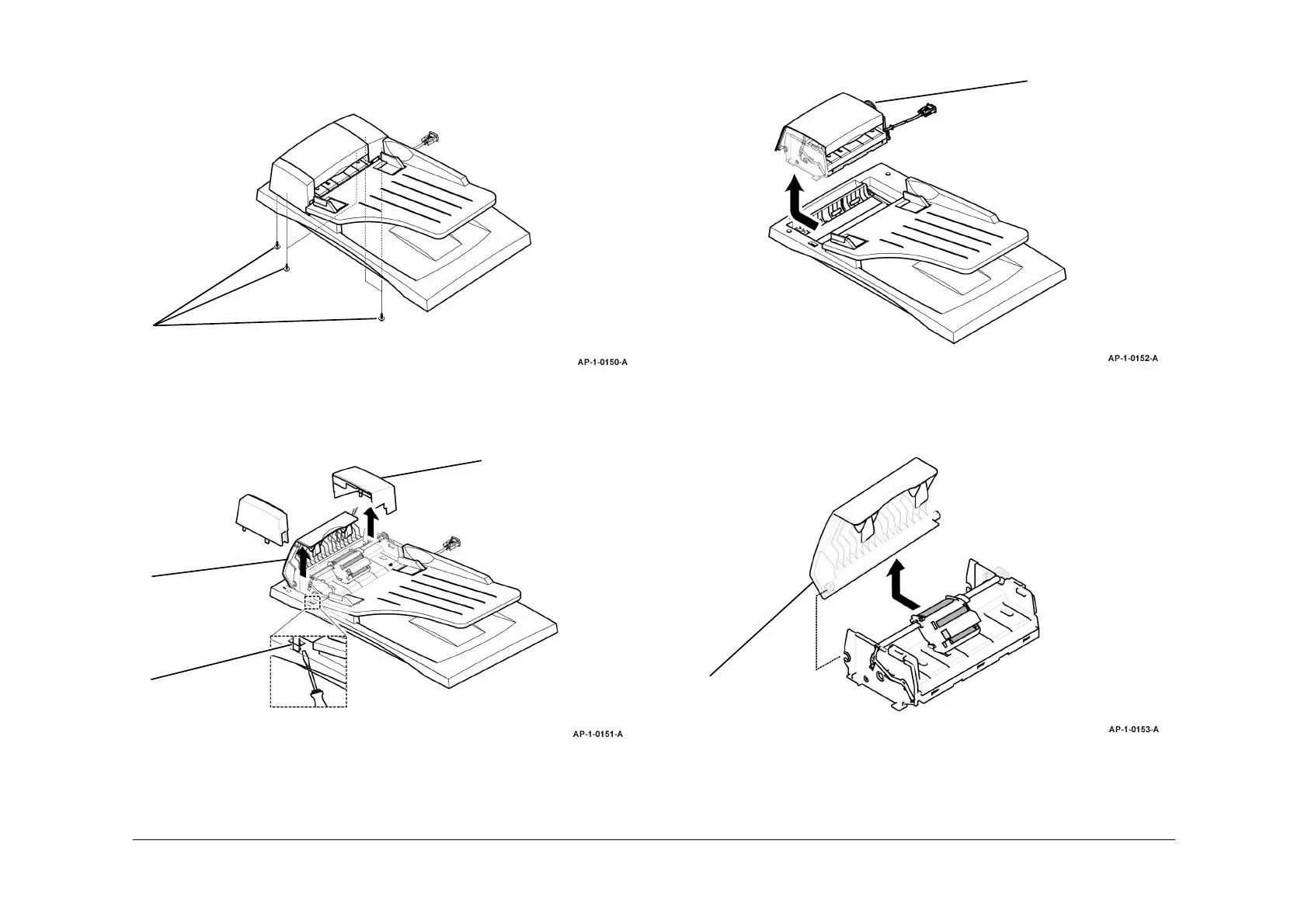

4. Prepare to remove the ADF assembly, Figure 3.
Figure 3 Preparation
5. Remove the PMO-cover side rear and PMO-cover side front, Figure 4.
Figure 4 Covers removal
6. Remove the ELA HOU - ADF lower assembly, Figure 5.
Figure 5 ELA HOU lower ADF assembly removal
7. Remove the PMO-open cover, Figure 6.
Figure 6 PMO-open cover removal
1
Remove 5 screws.
2
Remove PMO-cover side
front.
1
Open the PMO-
Cover Open.
3
Unclip the Side Cover
rear, then remove the
cover.
2
Lift the ELA HOU -
ADF lower assembly,
then remove.
1
Remove the PMO-
open cover.
