December 2006
5-5
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 1.15
Parts Lists

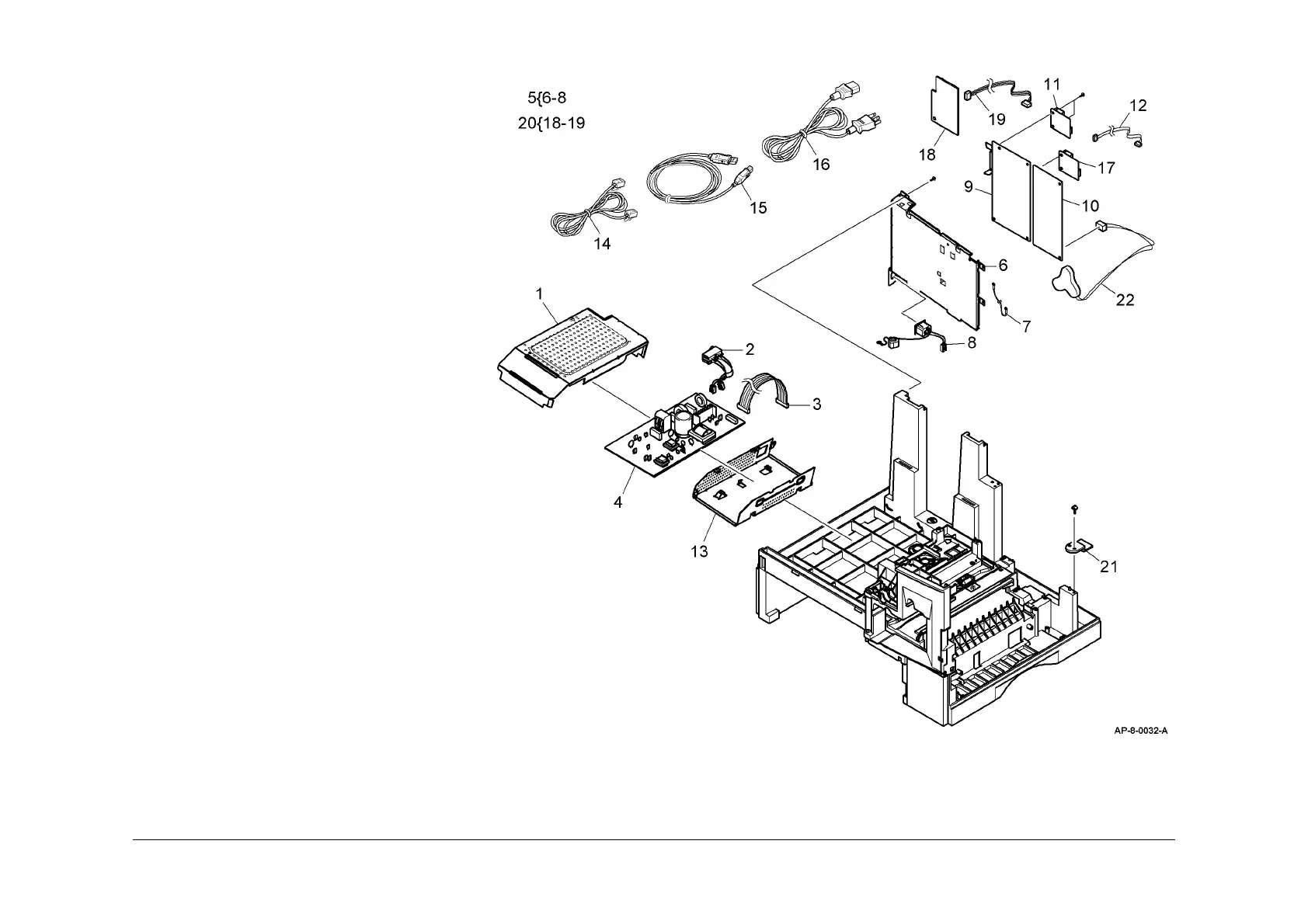

PL 1.15 SMPS and PBA Main (4118)
Item Part Description
1 – IPR - Shield SMPS Upper (Not
Spared)
2 152N11725 CBF Power Switch Grey
3 – CBF Harness - Power + HVPS (Not
Spared)
4 140N63182 SMPS (XE) (REP 1.5)
– 140N63183 SMPS (USSG/XCL) (REP 1.5)
5 – ELA HOU - Shield Main Lower (Not
Spared)
6 – Shield - P Main Lower (Not Spared)
7 152N11726 CBF Harness LUI GND
8 – CBF Harness Inlet (Not Spared)
9 140N63188 PBA Main (4118P) (REP 1.3)
– 140N63187 PBA Main (4118X) (REP 1.3)
10 105N02109 HVPS (REP 1.4)
11 140N63189 PBA LUI (XE)
– 140N63190 PBA LUI (XCL) (USSG)
12 – CBF Harness LUI (Not Spared)
13 – Support Tray (Not Spared)
14 117N01620 Telephone Line Cord (USSG/XCL)
15 117N01313 USB Cable
16 117N01602 AC Power Cord (USSG/XCL)
17 – PBA SUB NIC (REF: PL 31.10 Item
7)
18 140N63060 PBA Foreign Device Interface
19 152N11721 Foreign device Interface Harness
20 – Foreign Device Interface Kit (P/O
PL 31.10 Item 1)
21 – Battery Retainer (Not Spared)
22 – Battery (Not Spared)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
