Xerox WorkCentre M20 - 4.15 Main Frame Assembly (1 of 2)

December 2006
5-12
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 4.15
Parts Lists

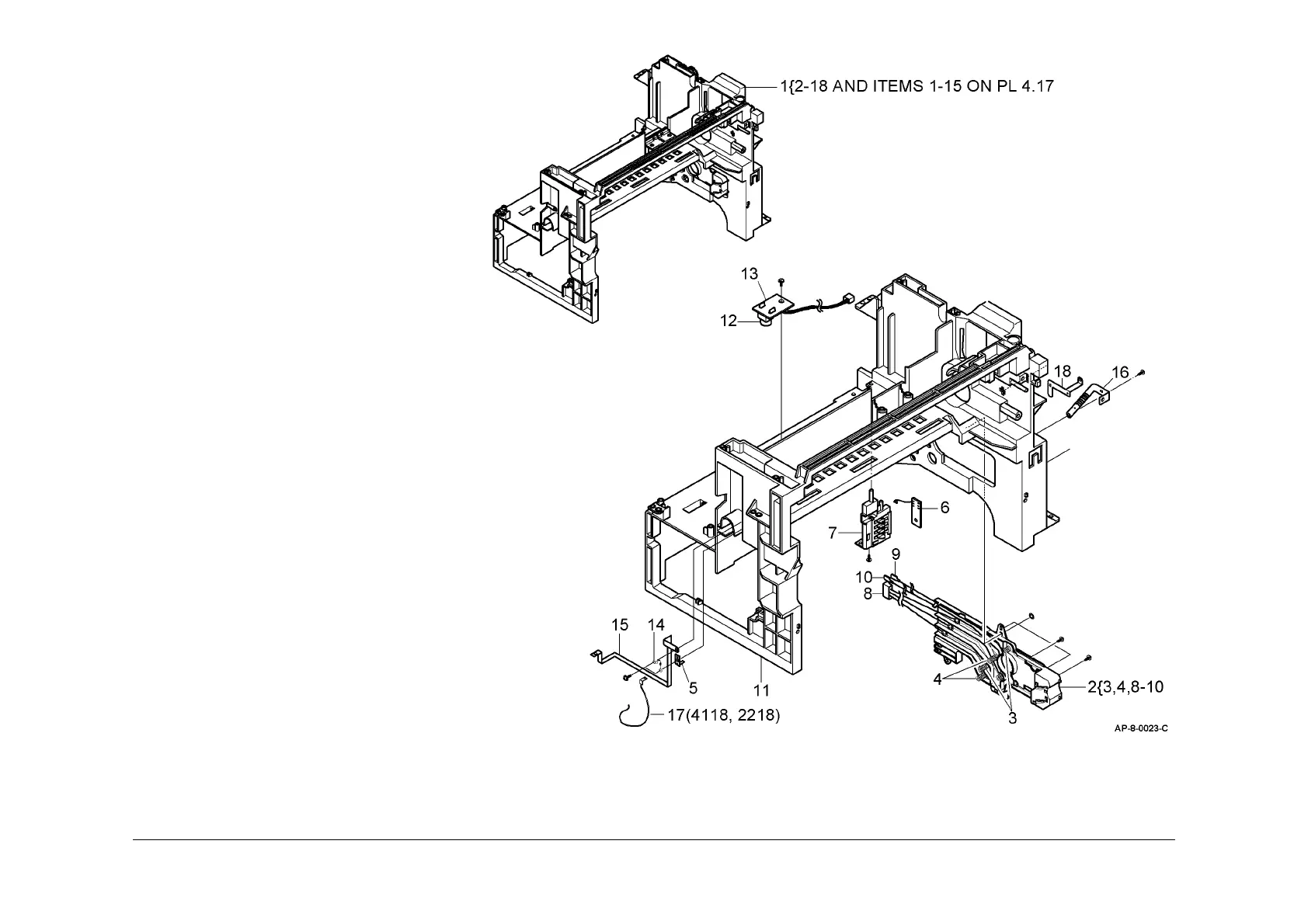

PL 4.15 Main Frame Assembly (1 of 2)
Item Part Description
1 002N02587 ELA HOU - Frame Main Assembly
(M20F) (W/TAG 050) (REP 4.4)
– 002N02279 ELA HOU - Frame Main Assembly
(M20F) (W/O TAG 050) (REP 4.4)
– 001N00486 ELA HOU - Frame Main Assembly
(4118) (220V) (REP 4.4)
– 001N00485 ELA HOU - Frame Main Assembly
(110V) (4118, 2218) (REP 4.4)
2 – PMO - Terminal MC2 assembly (P/
O PL 4.15 Item 1)
3 – IPR - Terminal Blade (P/O PL 4.15
Item 2)
4 – IPR - Terminal Supply (P/O PL 4.15
Item 2)
5 – IPR - Terminal GND OPC (P/O PL
4.15 Item 1)
6 140N63175 PBA SUB Terminal (M20F) (W/TAG
050)
– 140N62873 PBA SUB Terminal (M20F) (W/O
TAG 050)
– 115N00869 PBA SUB Terminal (4118, 2218)
7 113N01307 Holder Terminal
8 152N11742 CBF - Harness - Blade + Supply +
DEV (4118, 2218) (For M20F P/O
PL 4.15 Item 2)
9 – CBF - Harness - Main - THV Wire
(P/O PL 4.15 Item 2)
10 – CBF - Harness - Main - MHV Wire
(P/O PL 4.15 Item 2)
11 – PMO - Frame Main (P/O PL 4.15
Item 1)
12 – PMO - Lens Toner Sensor (P/O PL
4.15 Item 1)
13 130N01208 PBA SUB - Toner RX (M20F)
– 140N63200 PBA SUB - Toner RX (4118, 2218)
14 – CBF - Harness (P/O PL 4.15 Item
1) (M20F)
15 – IPR - GND OPC Base (P/O PL 4.15
Item 1) (M20F)
16 – IPR - Ground Fuser MC2 (P/O PL
4.15 Item 1)
17 – Harness OPC GND (4118, 2218)
(P/O PL 4.15 Item 1)
18 – IPR - GND Terminal (P/O PL 4.15
Item 1)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
