Xerox WorkCentre M20 - 5.20 ADF Assembly (1 of 3)

December 2006
5-21
WorkCentre M20, 4118, FaxCentre 2218 Family
PL 5.20
Parts Lists

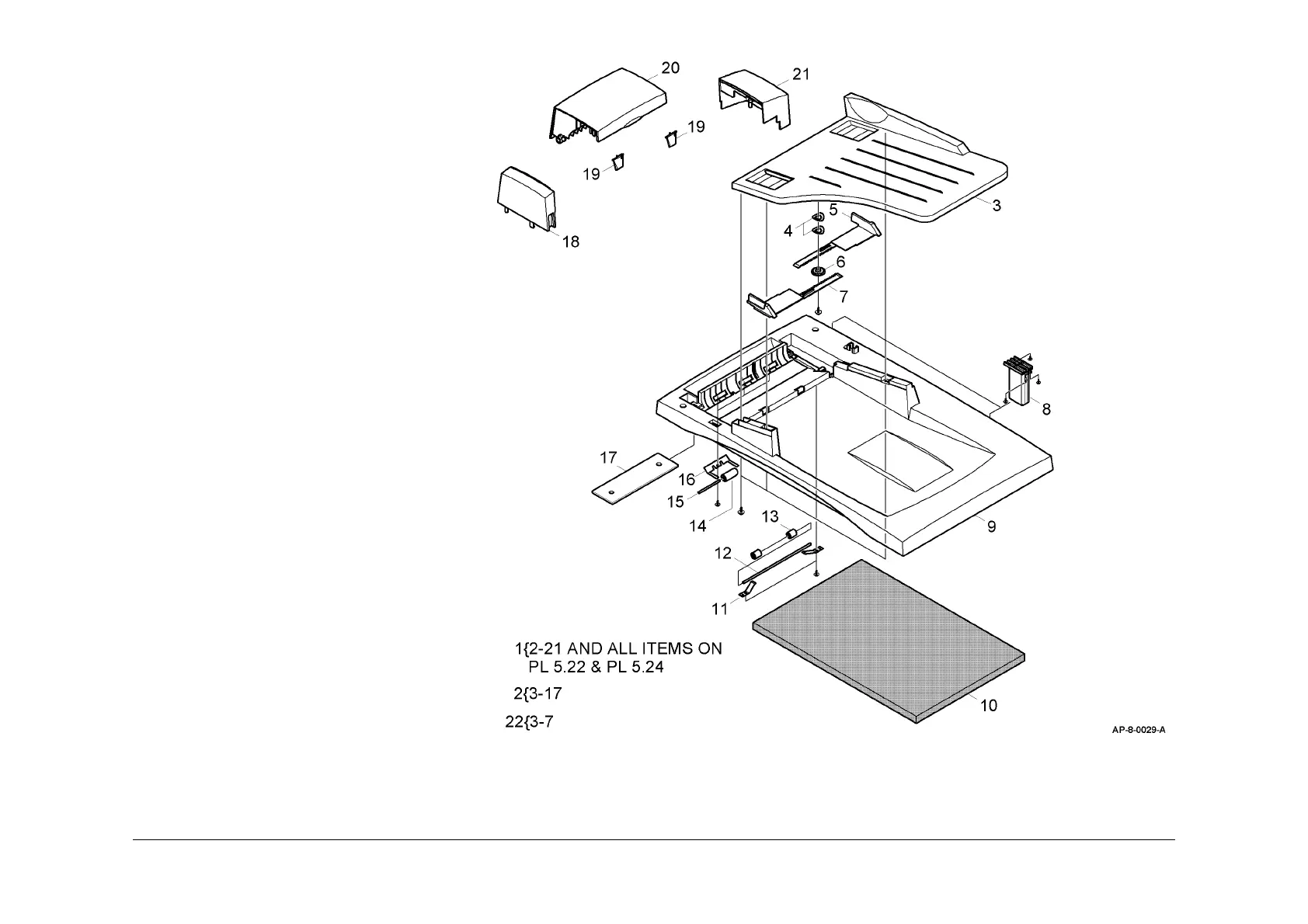

PL 5.20 ADF Assembly (1 of 3) (4118)
Item Part Description
1 007N01547 ELA HOU - ADF (REP 5.2) (ADJ
5.2)
2 – MEA Unit - Platen Guide (P/O PL
5.20 Item 1)
3 022N01478 PMO - TX Stacker
4 – IPR - Washer Spring CU (P/O PL
5.20 Item 2)
5 – PMO - DOC Guide (P/O PL 5.20
Item 2)
6 – PMO - Gear Pinion (P/O PL 5.20
Item 2)
7 – PMO - DOC Guide (P/O PL 5.20
Item 2)
8 003N00882 MEA Unit Hinge
9 002N02590 PMO - Cover Platen
10 – PPR - Sponge Sheet (P/O PL 5.20
Item 2)
11 – NPR - Spring Pinch Drive (P/O PL
5.20 Item 2)
12 – IPR - Shaft Exit (P/O PL 5.20 Item
2)
13 – RPR - Roller Exit Idle (P/O PL 5.20
Item 2)
14 – PMO - Roll Pinch (P/O PL 5.20 Item
2)
15 – ICT - Shaft Exit (P/O PL 5.20 Item
2)
16 – IPR - Spring Pinch (P/O PL 5.20
Item 2)
17 – PPR - Sheet Platen (P/O PL 5.20
Item 2)
18 – PMO - Cover Front (P/O PL 5.20
Item 1) (REP 5.2)
19 038N00370 PMO - Guide Paper
20 002N02002 PMO - Cover Open (P/O PL 5.20
Item 1) (REP 5.2)
21 – PMO - Cover Rear (P/O PL 5.20
Item 1) (REP 5.2)
22 – PMO - TX Stacker Assembly (Not
Spared)
NOTE: If necessary, refer to GP 20 for the acronym list and
cross reference lists of more commonly recognised part
names.
