Xerox WorkCentre M20 - REP 8.6 ELA HOU - Pickup Assembly

December 2006
4-45
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 8.5, REP 8.6
Repairs and Adjustments
4. Remove the MEA unit - feed roller assembly, Figure 2.

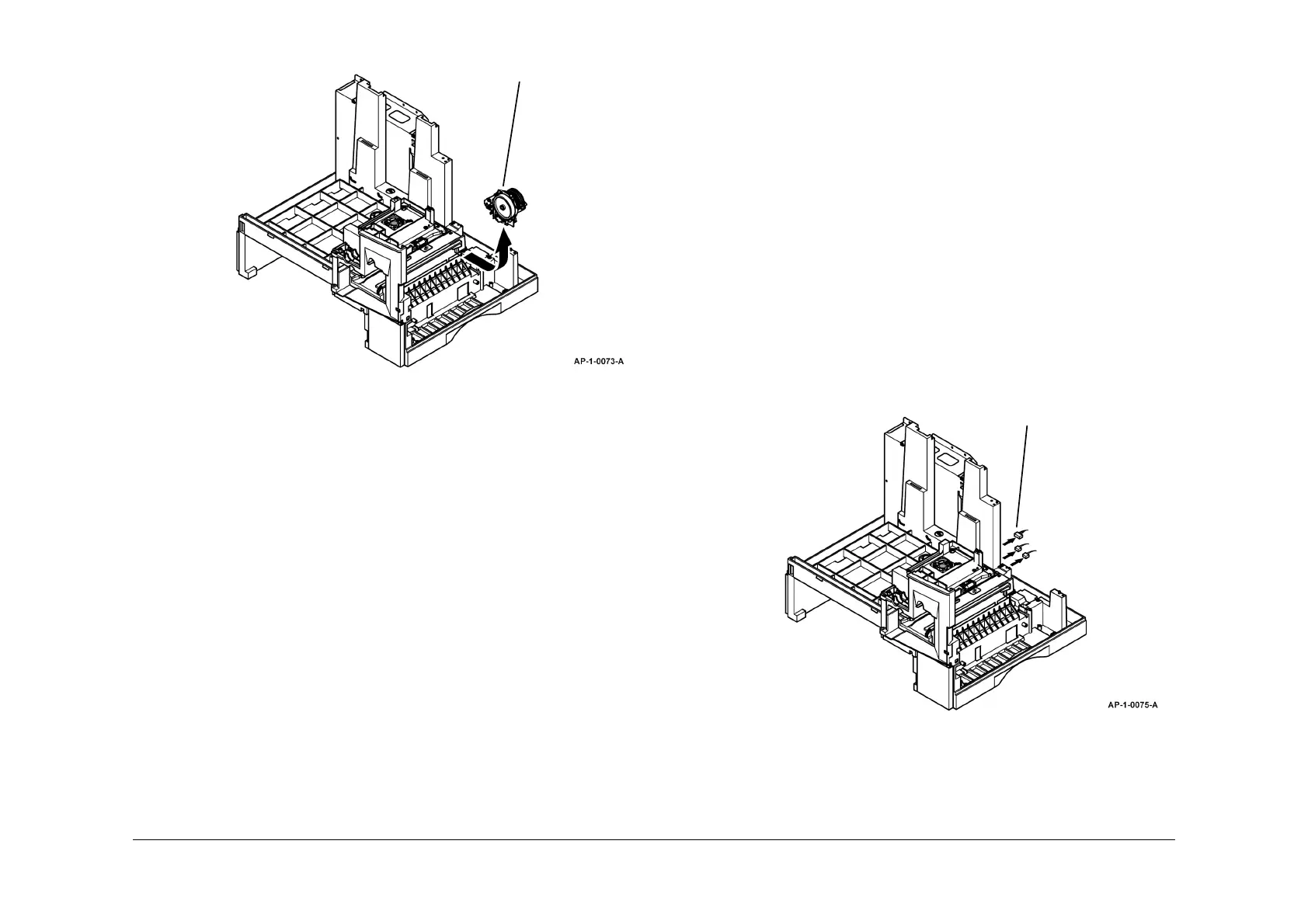

Figure 2 MEA unit - feed roller assembly removal
Replacement
Replacement is the reverse of the removal procedure.
REP 8.6 ELA HOU - Pickup Assembly
Parts List on PL 8.25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
NOTE: If necessary, refer to GP 20 for the acronym list and cross reference lists of more com-
monly recognised part names.
1. Remove tray 1 cassette assembly, PL 7.10 Item 1.
2. Remove the ELA HOU - drive assembly, REP 4.1.
NOTE: For clarity, the machine is shown disassembled in Figure 1, Figure 2 and Figure 4.
3. (M20F) Disconnect CN17, CN24 and CN25 from the PBA main, Figure 1.
(4118/2218) Disconnect CN3, CN4 and CN5 from the HVPS, Figure 1.
Figure 1 Connectors
1
Remove the MEA
unit - feed roller
assembly.
1
Disconnect 3
connectors.
