December 2006
4-31
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 5.1
Repairs and Adjustments
19. Remove the ELA HOU - DADF motor assembly, Figure 18.

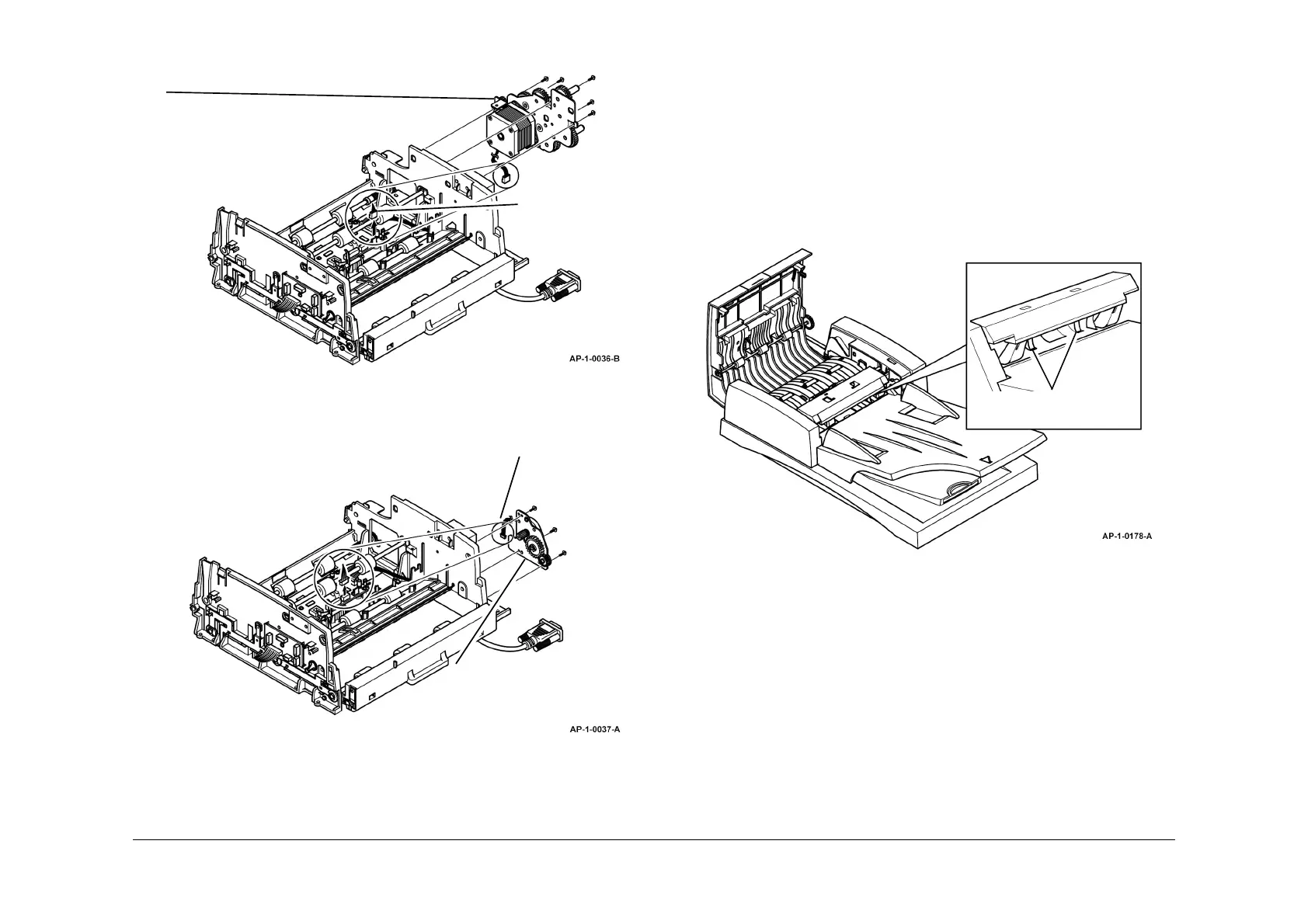

Figure 18 ELA HOU - DADF motor assembly removal
20. Remove the ELA HOU - duplex motor assembly, Figure 19.
Figure 19 ELA HOU - duplex motor assembly removal
Replacement
1. Replacement is the reverse of the removal procedure. When reconnecting the inline con-
nectors, ensure they are connected correctly:
• The MEC clutch small (feed) connects to the black wires.
• The MEC clutch small (registration) connects to the green wires.
• The MEC clutch small (duplex) connects to the yellow wires.
• The ELA HOU - cover open switch connects to the red wires.
2. Ensure the 2 ground harnesses are installed onto the cover P - gear and the 3 ground
harnesses onto the guide - M scan assembly.
3. Ensure the 2 feed gates are located correctly in the slots on the guide - M pickup upper,
Figure 20.
Figure 20 Feed gate position
1
Disconnect CN5.
2
Remove 5 screws, then the ELA
HOU - DADF motor assembly.
1
Disconnect CN4.
2
Remove 3 screws, then the
ELA HOU - duplex motor
assembly.
Feed gates.
