Xerox WorkCentre M20 - Page 128

December 2006
4-30
WorkCentre M20, 4118, FaxCentre 2218 Family
REP 5.1
Repairs and Adjustments
17. Remove the guides, Figure 16.

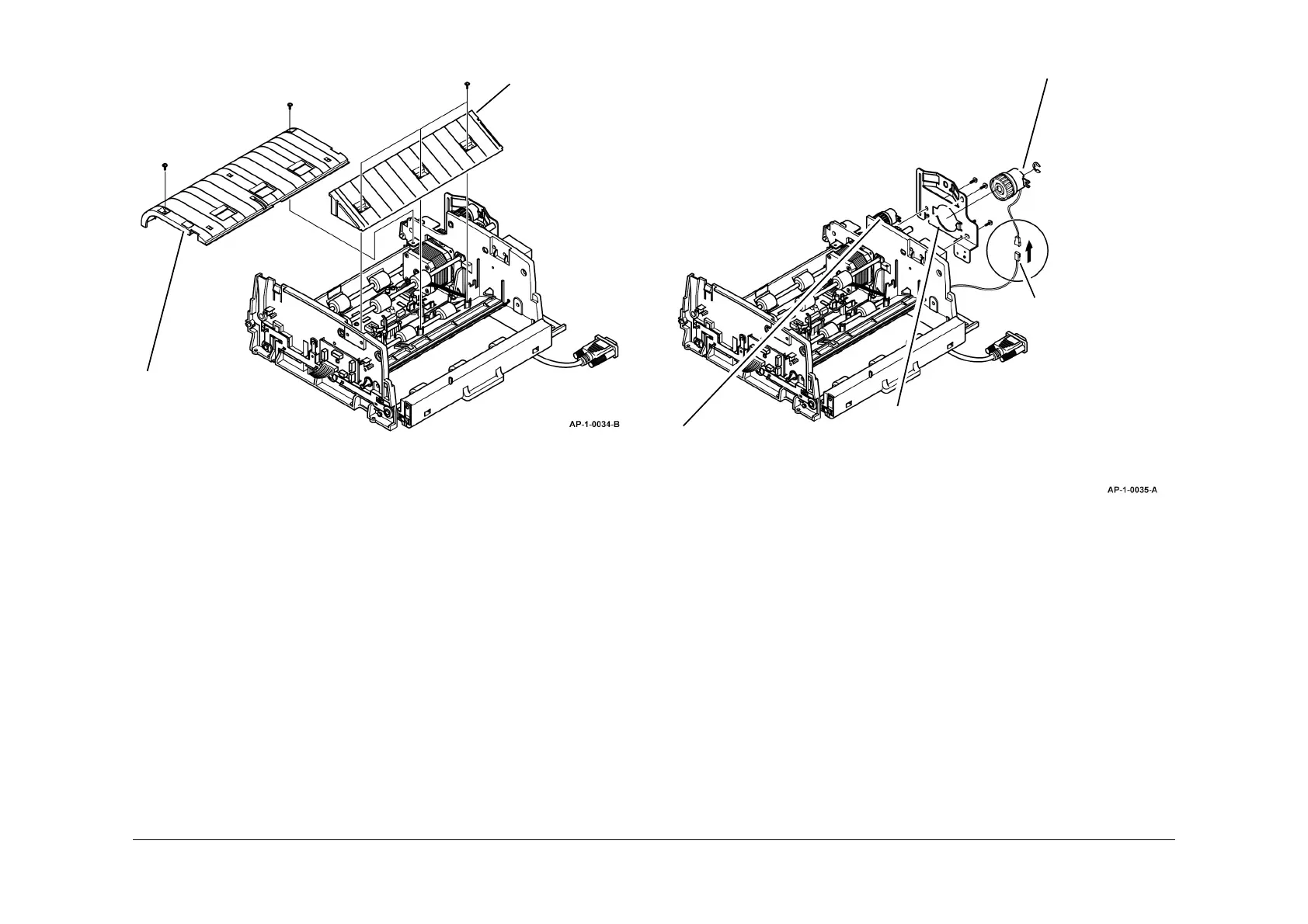

Figure 16 Guide removal
18. Remove the cover - P gear, Figure 17.
Figure 17 Cover - P gear removal
1
Remove 2 screws, then the
guide - M duplex lower.
2
Remove 3 screws,
then the guide - M
duplex inner.
1
Disconnect the MEC -
clutch small (duplex)
inline connector.
2
Remove 1 E-clip and
the MEC - clutch
small (duplex).
3
Disconnect the MEC - clutch
small (registration) inline con-
nector.
4
Remove 3 screws, disconnect 2 ground harnesses,
then remove the cover P - gear.
