REP 10.1
Repairs and Adjustments

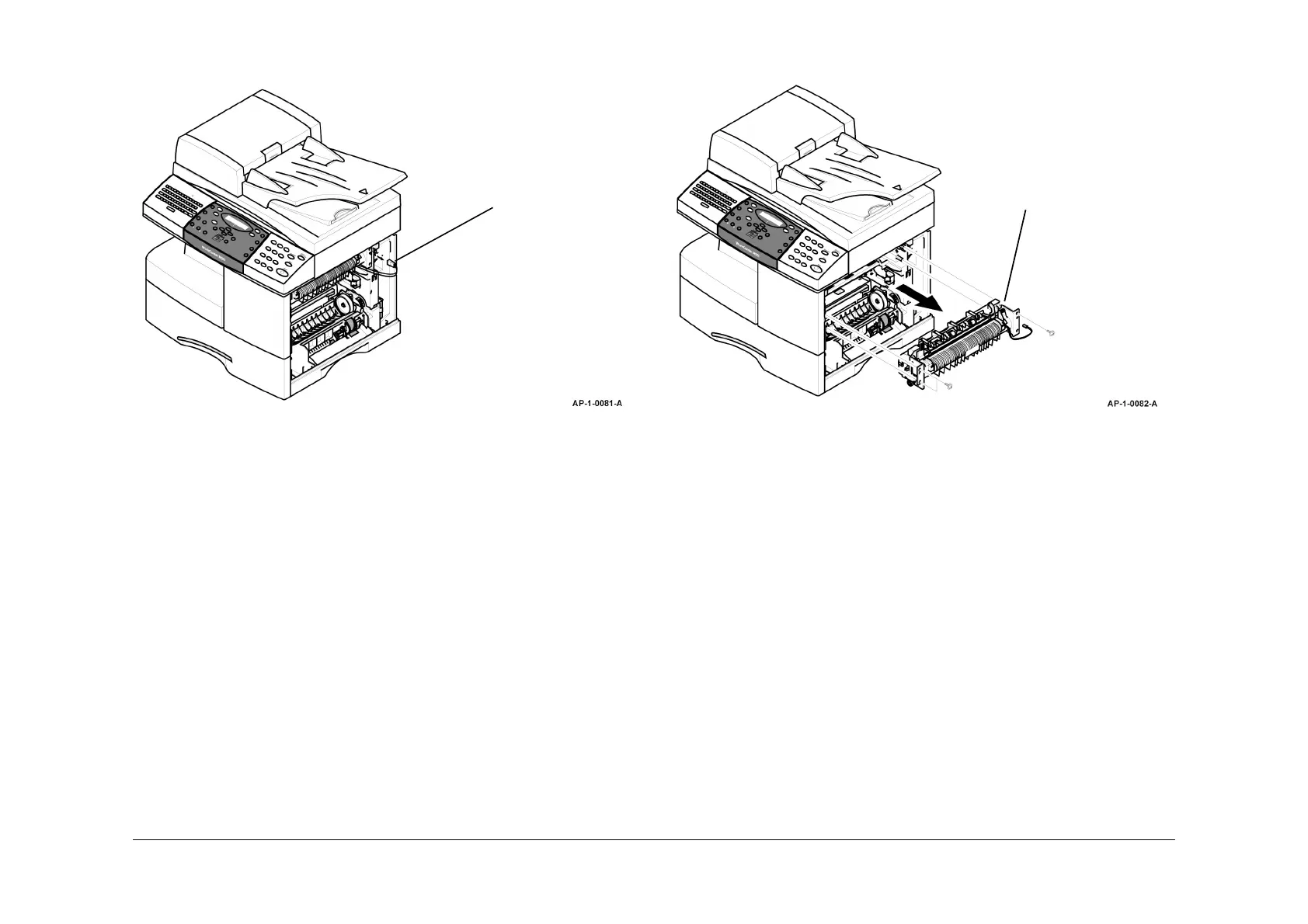

3. Disconnect the fuser connector, Figure 2.
Figure 2 Fuser connector
4. Remove the ELA HOU - fuser assembly, Figure 3.
Figure 3 ELA HOU - fuser assembly removal
Replacement
Replacement is the reverse of the removal procedure.
1
Disconnect the fuser
connector.
1
Remove 3 screws, then
the ELA HOU - fuser
assembly.
