Yamaha 60F - BRACKET (Long Transom)

7-8
E
BRKT

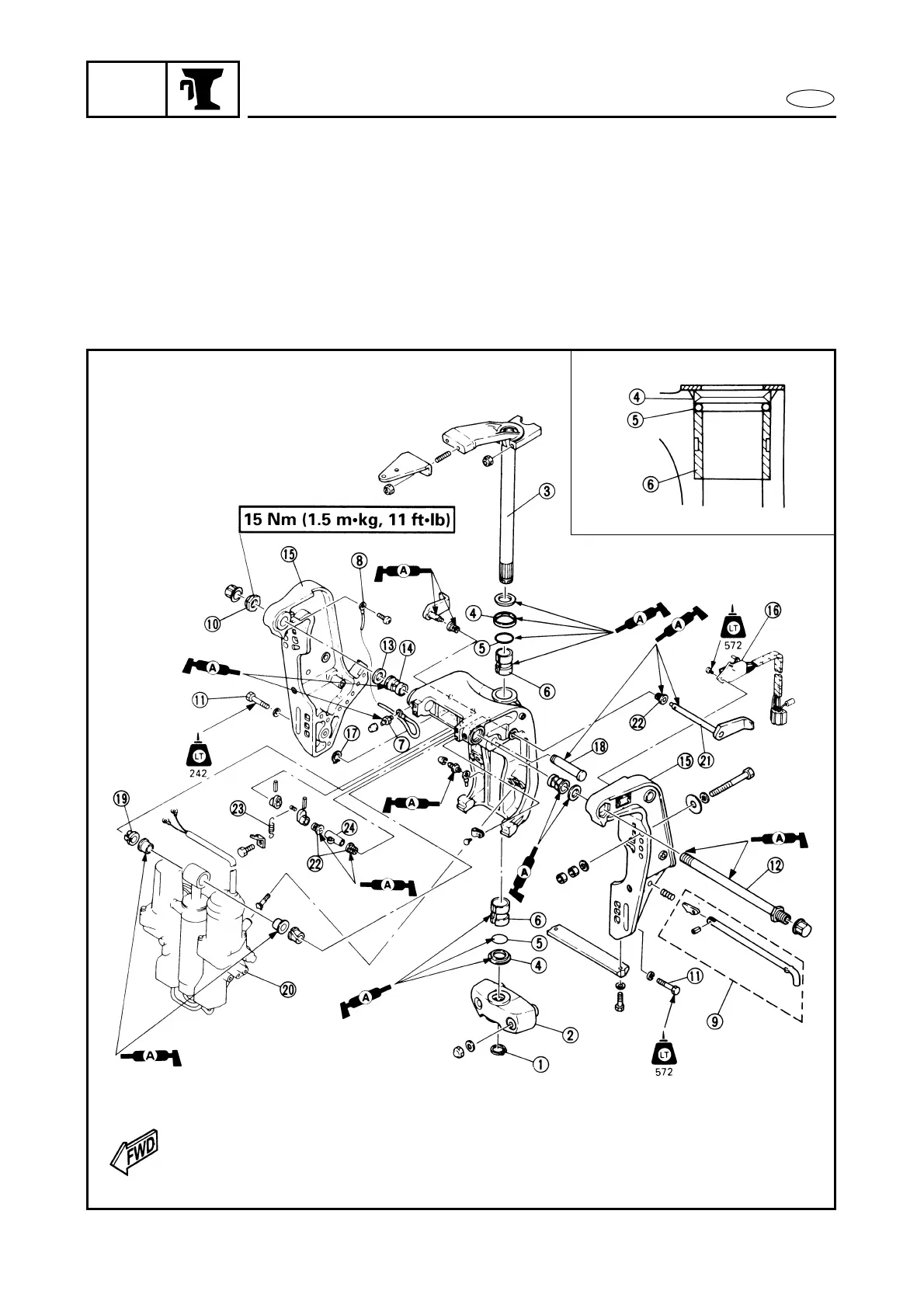

BRACKET UNIT
K15900-0
BRACKET (Long transom)
1 Circlip
2 Lower mounting housing
3 Steering pivot shaft
4 Bushing
5 O-ring
6 Bushing
7 Grease nipple
8 Ground lead
9 Tilt rod (manual tilt model)
0 Clamp bracket nut
A Bolt (6 bolts)
B Clamp bracket bolt
C Washer
D Bushing
E Clamp bracket
F Trim sensor (PTT model)
G Circlip
H Pin
I Bushing
J Power trim and tilt unit
(PTT model)
K Tilt lock lever
L Bushing
M Spring
N Collar
