Yamaha 60F - Removal; Cleaning and Inspection; Oil-Tank; Oil-Lever Sensor

4-16
FUEL
E
OIL-INJECTION SYSTEM
REMOVAL
1. Drain the oil from the oil-tank and
remove the carburetor.
2. Disconnect the hoses and remove the
oil-injection system.
E42001-0*

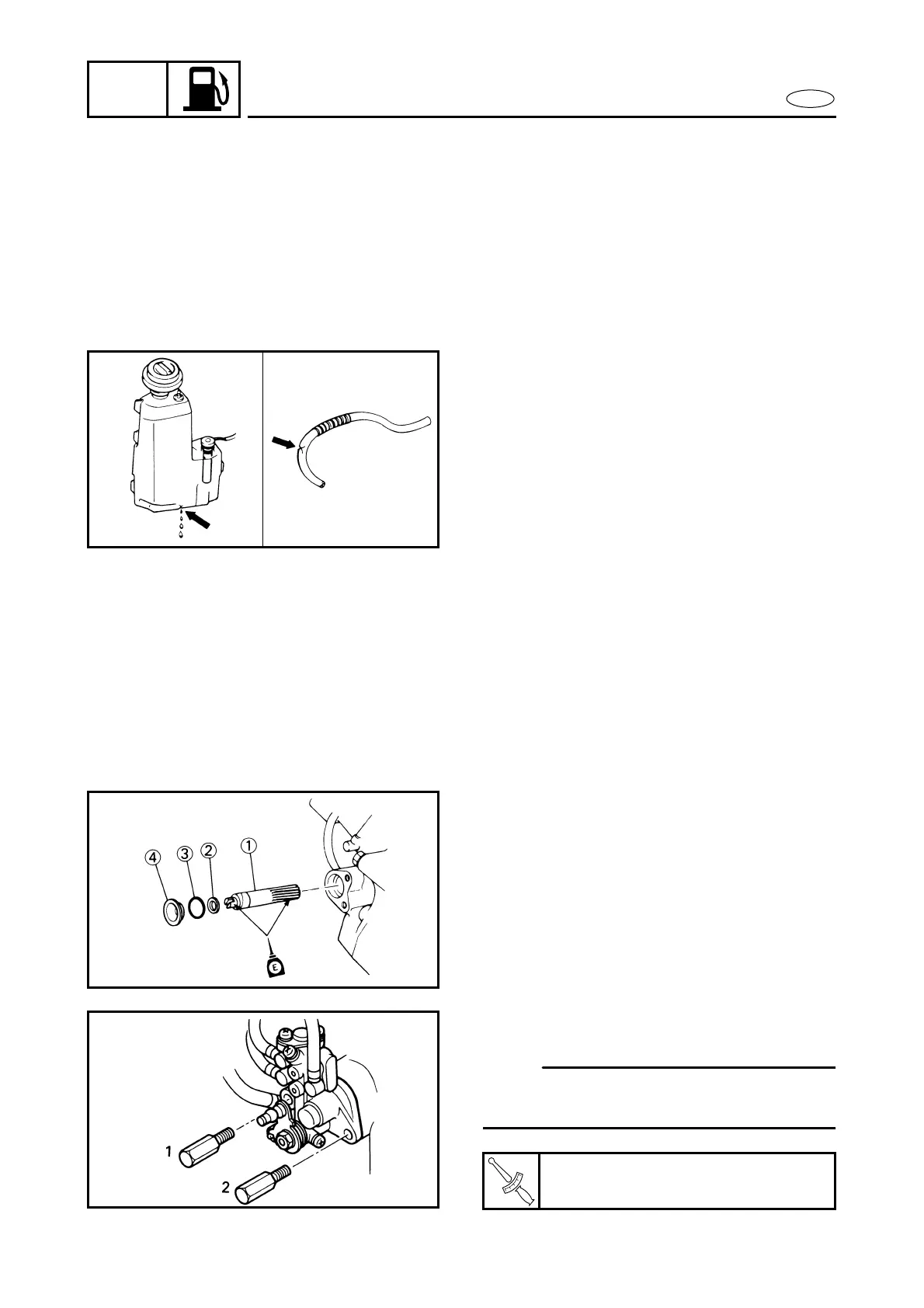

CLEANING AND INSPECTION
OIL-TANK
1. Using solvent, clean the oil-tank.
2. Drain the solvent and dry the tank.
3. Inspect the oil-tank for cracks and
replace it if required.
OIL-LEVER SENSOR
Refer to “OIL-LEVEL SENSOR” sec-
tion in chapter 8.
OIL-HOSES
1. Inspect the oil-hoses for damage or
cracks and replace them if required.
E43001-0*
INSTALLATION
1. Connect the oil-hoses to the oil-pump
and tighten the clips on the hoses.
2. Install the driven gear.
1 Driven gear
2 Washer
3 O-ring
4 Distance collar
3. Install the oil-pump to the power-head.
NOTE:
Tighten the bolts to the specified torque in
sequence.
T
R
.
.
Oil injection pump mounting bolt:
7 Nm (0.7 m • kg, 5.1 ft • lb)
