7-14
E
BRKT

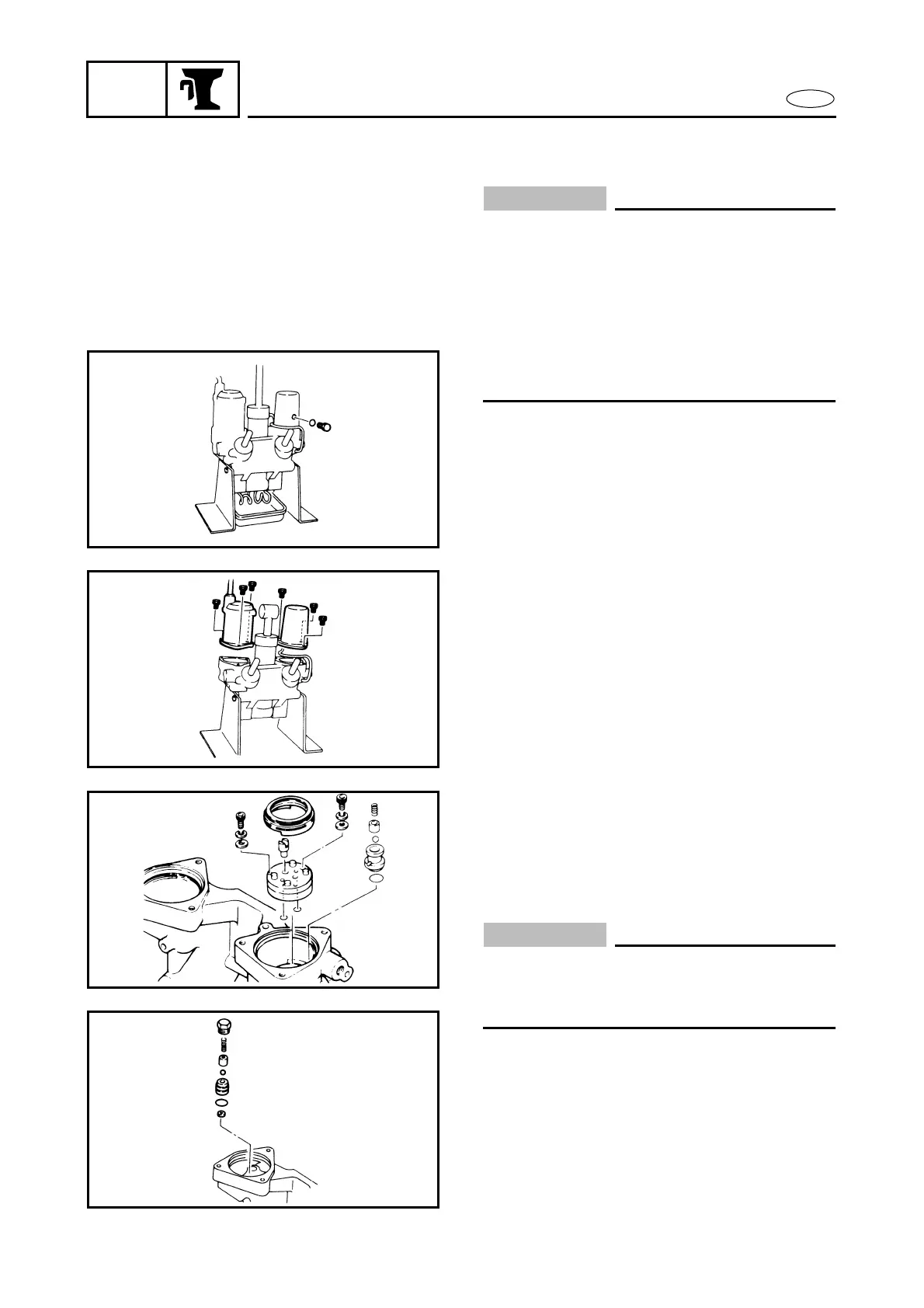

POWER TRIM AND TILT UNIT
K52002-0
DISASSEMBLY
CAUTION:
1. Do not wipe components of the hydrau-
lic system with rags or paper tissues,
etc., as fibers entering the system will
cause malfunction.
2. After removing the tilt-motor or oil-res-
ervoir, do not depress the tilt-rod or
trim-rod, since this may cause hydraulic
fluid to be ejected from the port.
1. Turn the manual valve fully towards the
manual position.
2. Remove the hydraulic-fluid level-plug
and drain the hydraulic-fluid.
3. Remove the delivery pipes and drain
the hydraulic-fluid.
4. Remove the hydraulic-fluid reservoir
and the tilt-motor.
5. Remove the shaft connector.
6. Remove the filter and the gear-pump.
7. Remove the O-rings and the complete
down relief-valve.
CAUTION:
Do not disassemble the gear-pump unit
which is factory-adjusted, but replace the
complete gear-pump unit if necessary.
8. Loosen the bolt and remove the com-
plete up-relief valve.
