POWER TRIM AND TILT UNIT

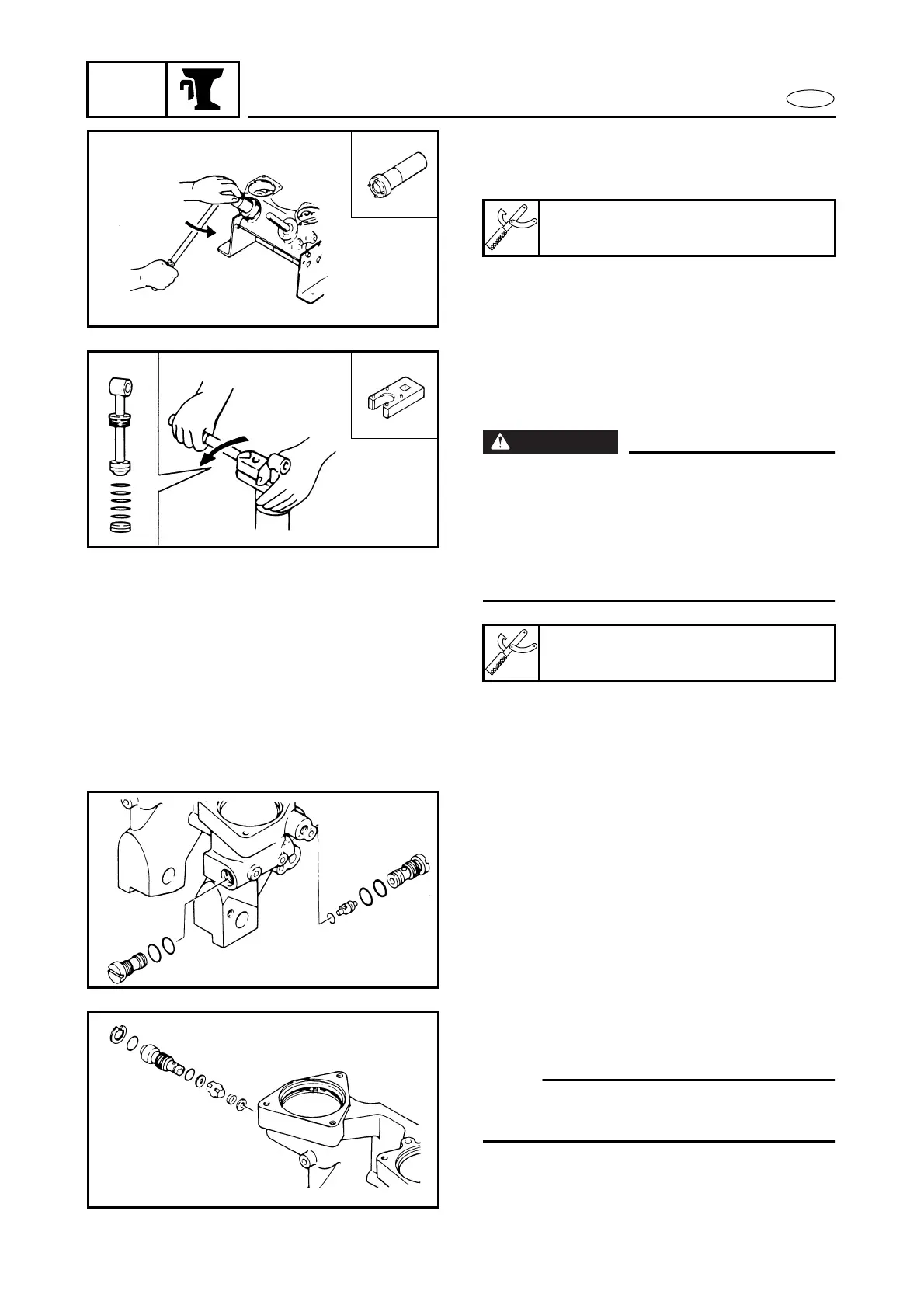

9. Using the special service tool, loosen
the trim-cylinder end-screw and pull out
the trim-piston and components.
Cylinder end screw wrench:
YB-6175-1A/90890-06542
10. Using the special service tool, loosen
the tilt-cylinder end-screw and pull out
the tile-piston and the free-piston.
WARNING
The free-piston can be removed easily by
blowing compressed air into the drain-hole
of the cylinder. Be sure to cover the open
end of the cylinder with a rag to prevent
the free-piston from being ejected, which
could cause injury or piston damage.
Cylinder end screw wrench:
YB-6175-2B/90890-06544
11. Remove the main valves and the shut-
tle-piston.
12. Remove the circlip, the manual-valve
and components.
NOTE:
The manual-valve screw is threaded left
handed.
