Yamaha 60F - INSTALLATION (50, 60, 70 Hp); ASSEMBLY (75, 80, 90 Hp)

8-35
–+
ELEC
E
STARTER MOTOR

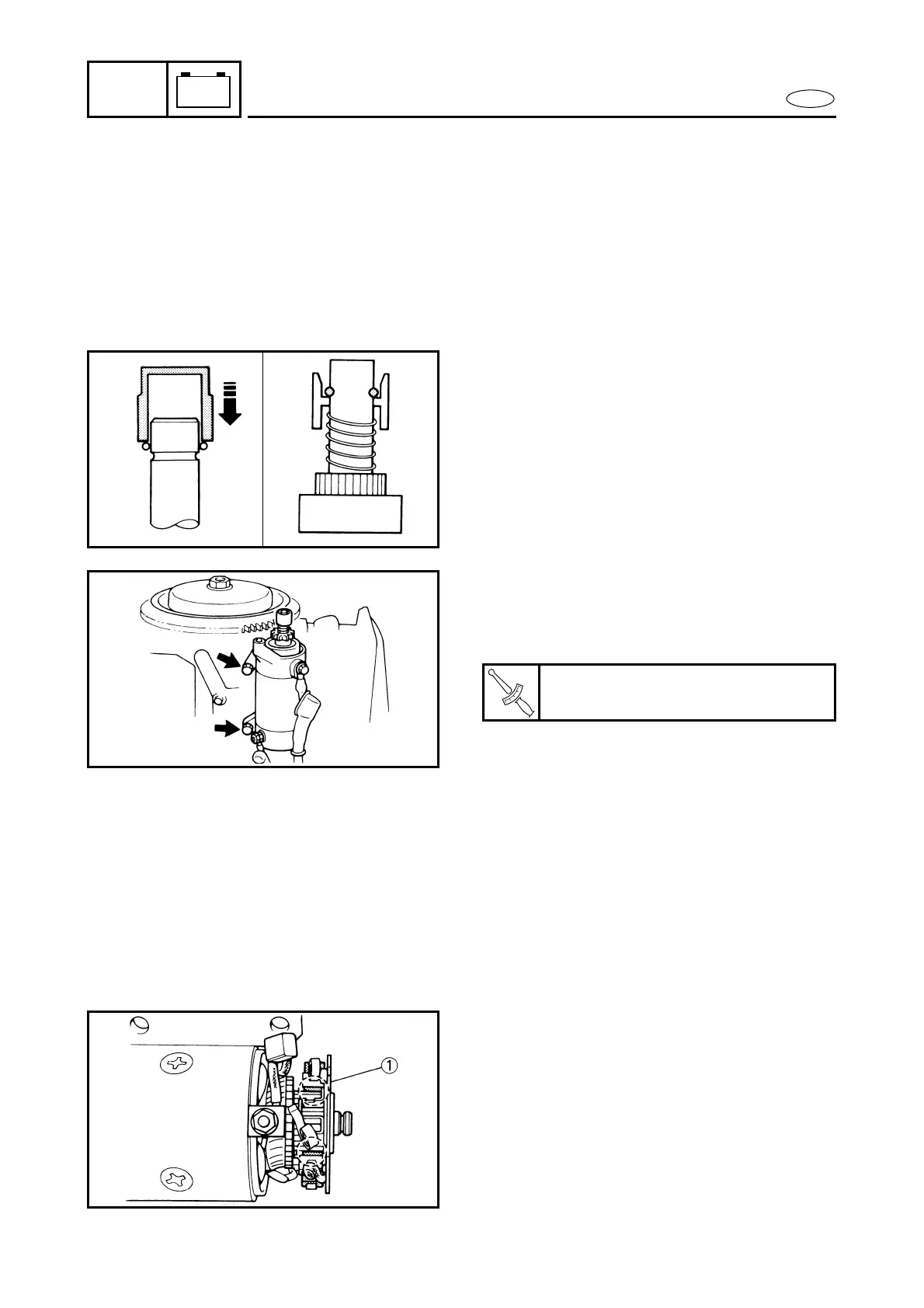

4. Insert the through-bolts into the rear
cover and screw them into the front
cover.
5. Mount the pinion, spring and pinion-
stopper on the armature shaft.
6. Hold down the pinion-stopper and fit
the circlip into the groove in the shaft.
Use a socket-wrench that fits properly
over the armature shaft. Reform the cir-
clip by using pliers. Lift up the pinion-
stopper until its bottom contacts the cir-
clip.
INSTALLATION (50, 60, 70 hp)
1. Place the starter-motor on the starter
motor stay and tighten the bolts to the
specified torque.
2. Secure the starter-motor to the engine
with the four starter-motor mounting
bolts.
3. Connect the positive and negative wires
to the starter-motor.
T
R
.
.
Starter motor mounting bolt:
20 Nm (2.0 m • kg, 14 ft • lb)
ASSEMBLY (75, 80, 90 hp)
1. Insert the armature into the yoke
assembly. Fit the brush attached to the
negative side of the brush holder into
the armature.
1 Brush holder
