4-13
FUEL
E
CARBURETOR
E34004-1
INSTALLATION
1. Install the carburetors and plate with
new gaskets.

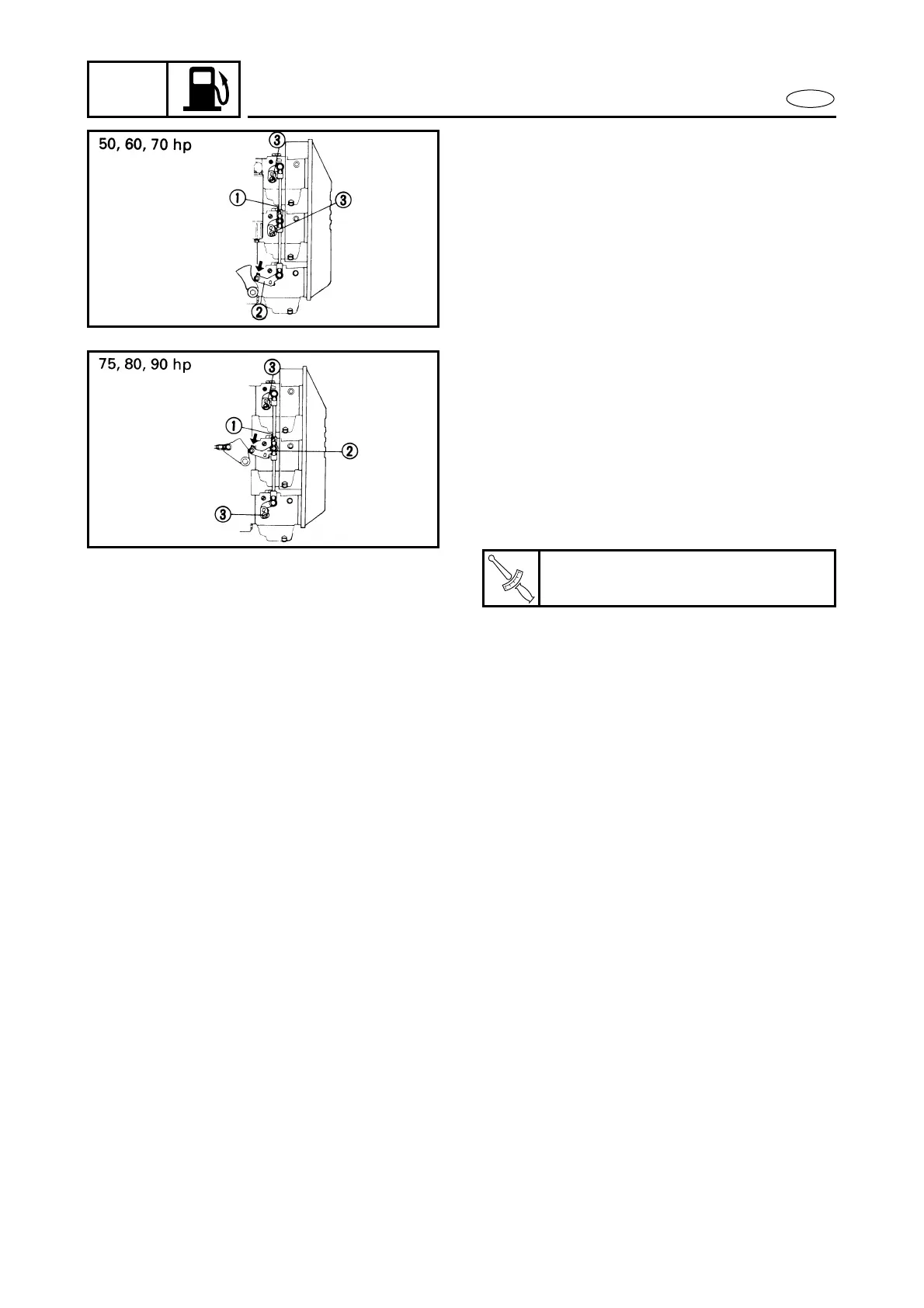

1 Idle adjust screw
2 Throttle lever
3 Throttle lever securing screw
2. Connect the fuel hoses to the carbure-
tors and fit the hose-clips over the
recesses to ensure leak-proof connec-
tions.
3. Connect the electrothermal valve leads.
4. Connect the oil-pump link-rod to the
carburetor and oil-injection pump.
5. Install the silencer cover and tighten the
bolt to the specified torque.
T
R
.
.
Bolt (silencer cover):
2 Nm (0.2 m • kg, 1.4 ft • lb)
