INSTALLATION
G8000-0*
INSTALLATION

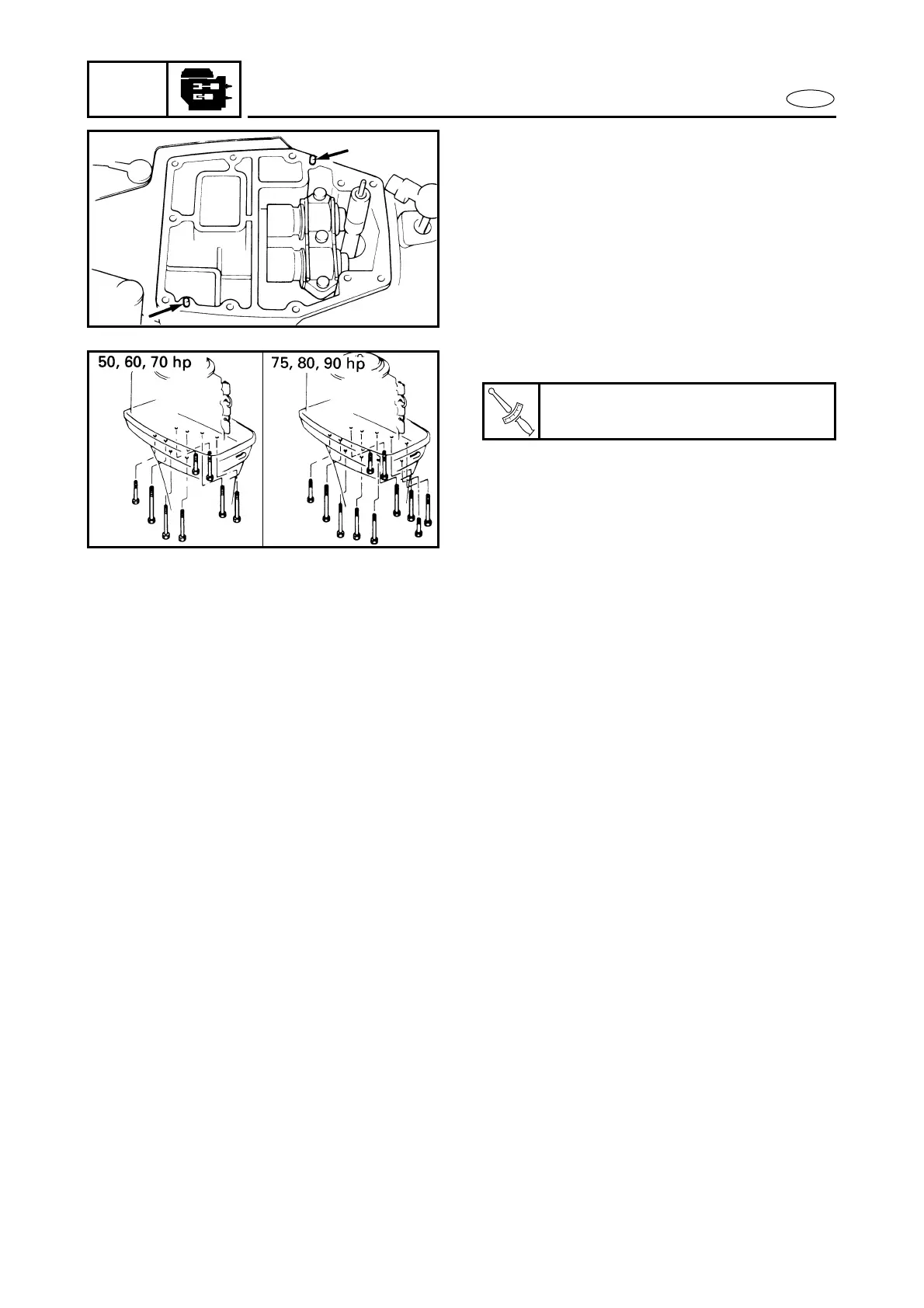

1. Install locating pins in position on the
exhaust guide.
2. Align the locating-pin holes on the gas-
ket with dowel pins and place the gas-
ket on the bottom cowling.
3. Install the power head onto the bottom
cowling, tighten the mounting-bolts to
the specified torque.
4. Connect the hoses, cables and wires.
5. Install the apron.
6. Check the fittings installation, cable
connections and functions before start-
ing the engine to check operation and to
check for leaks.
T
R
.
.
Mounting bolts:
21 Nm (2.1 m • kg, 15 ft • lb)
