Yamaha 60F - Assembly

7-33
E
BRKT

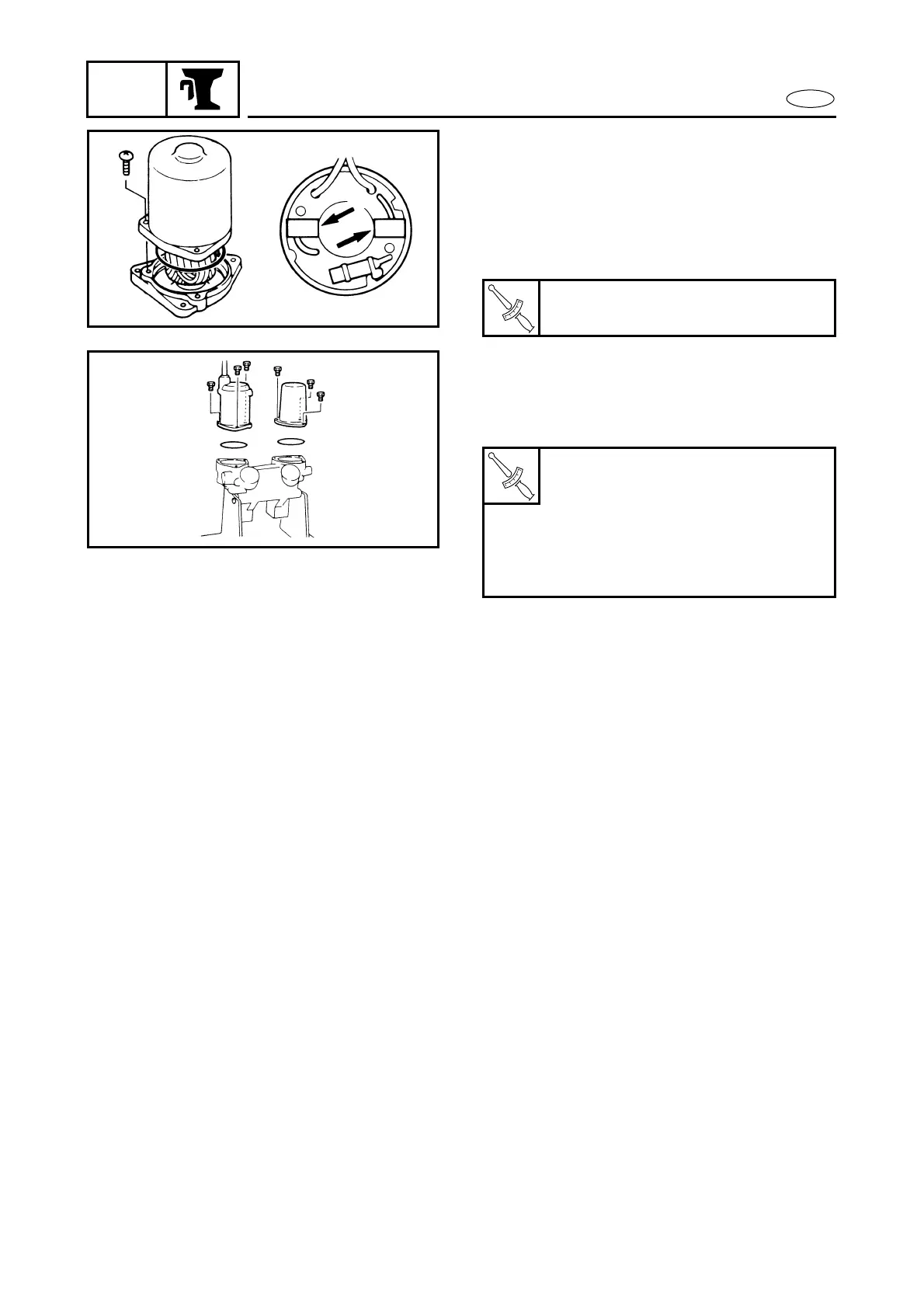

POWER TRIM AND TILT MOTOR
K63000-0*
ASSEMBLY
1. Install the armature into the frame-end.
2. Place the O-ring on the frame-end and
install the yoke assembly, then install
the screws.
3. Place the O-ring on the motor assembly
and align the grooves of the motor
assembly and gear pump, then install
the bolts.
T
R
.
.
Screw:
4 Nm (0.4 m • kg, 2.9 ft • lb)
T
R
.
.
Power trim and tilt motor
mounting bolt:
[Stamped mark]
[6H308]
6 Nm (0.6 m • kg, 4.3 ft • lb)
[6H1-15], [62F-02]
7 Nm (0.7 m • kg, 5.1 ft • lb)
