Yamaha 60F - Checking the Oil Level Warning System

3-11
INSP
ADJ
E
PERIODIC SERVICE
D33900-0*

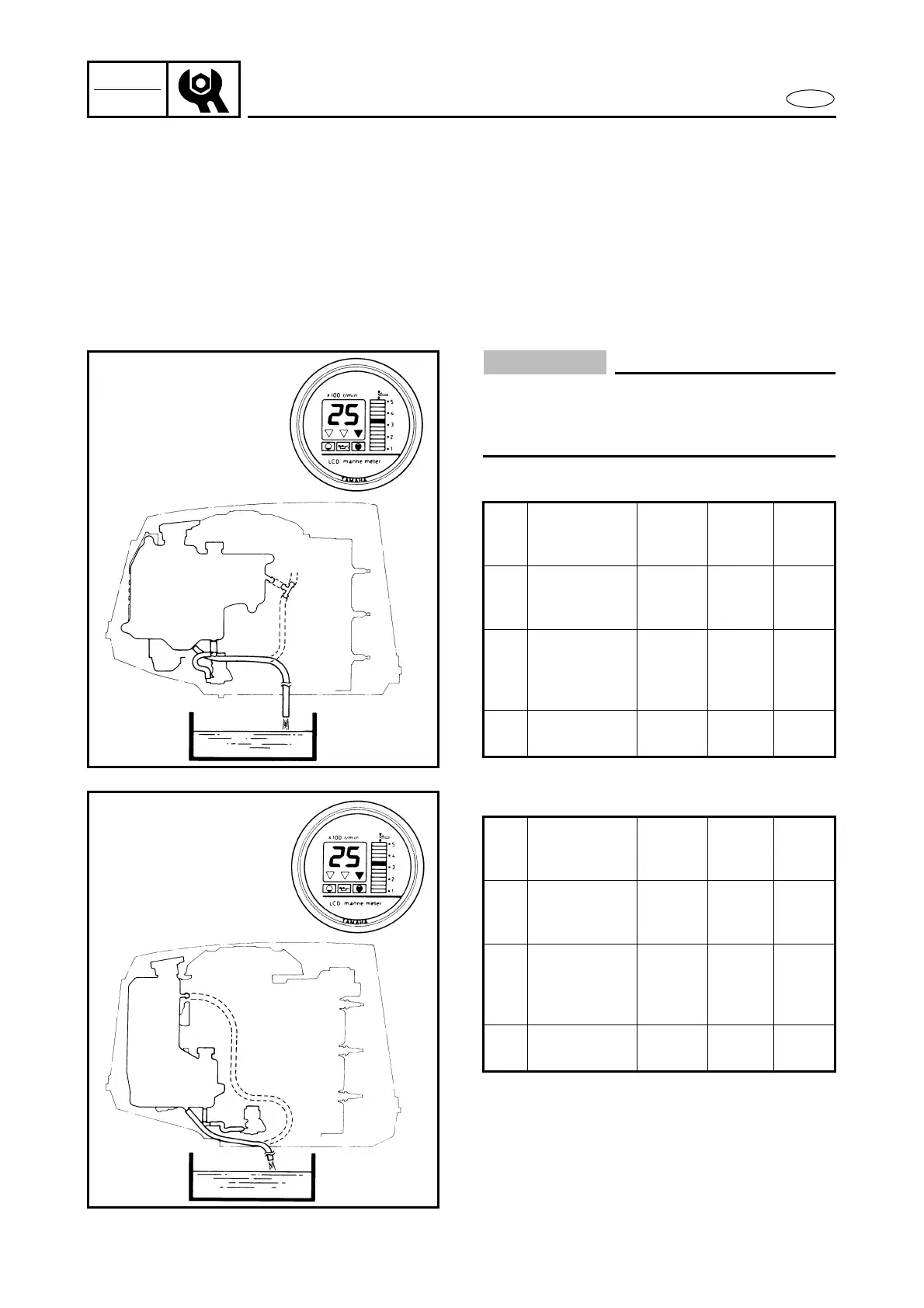

CHECKING THE OIL LEVEL WARNING
SYSTEM
1. Fill the oil-tank with oil.
2. Start the engine.
3. By letting the oil little by little out of the
drain-hose, check that the oil-level
warning system operates correctly.
CAUTION:
Do not allow the engine to operate without
oil even briefly for this will cause malfunc-
tion or engine seizure.
50, 60, 70 hp
Case Oil level
Oil level
warning
lamp
Warning
buzzer
Speed
drop
function
1
More than
770 cm
3
(0.81 US qt)
GREEN OFF OFF
2
770 cm
3
(0.31 Us qt) ~
280 cm
3
(0.3 US qt)
YELLOW OFF OFF
3
280 cm
3
or less
(0.3 US qt)
RED ON ON
75, 80, 90 hp
Case Oil level
Oil level
warning
lamp
Warning
buzzer
Speed
drop
function
1
More than
1,130 cm
3
(1.19 US qt)
GREEN OFF OFF
2
1,130 cm
3
(1.19 Us qt) ~
310 cm
3
(0.33 US qt)
YELLOW OFF OFF
3
310 cm
3
or less
(0.33 US qt)
RED ON ON
