Yamaha 60F - CARBURETOR

4-6
FUEL
E
CARBURETOR
E31001-1
CARBURETOR

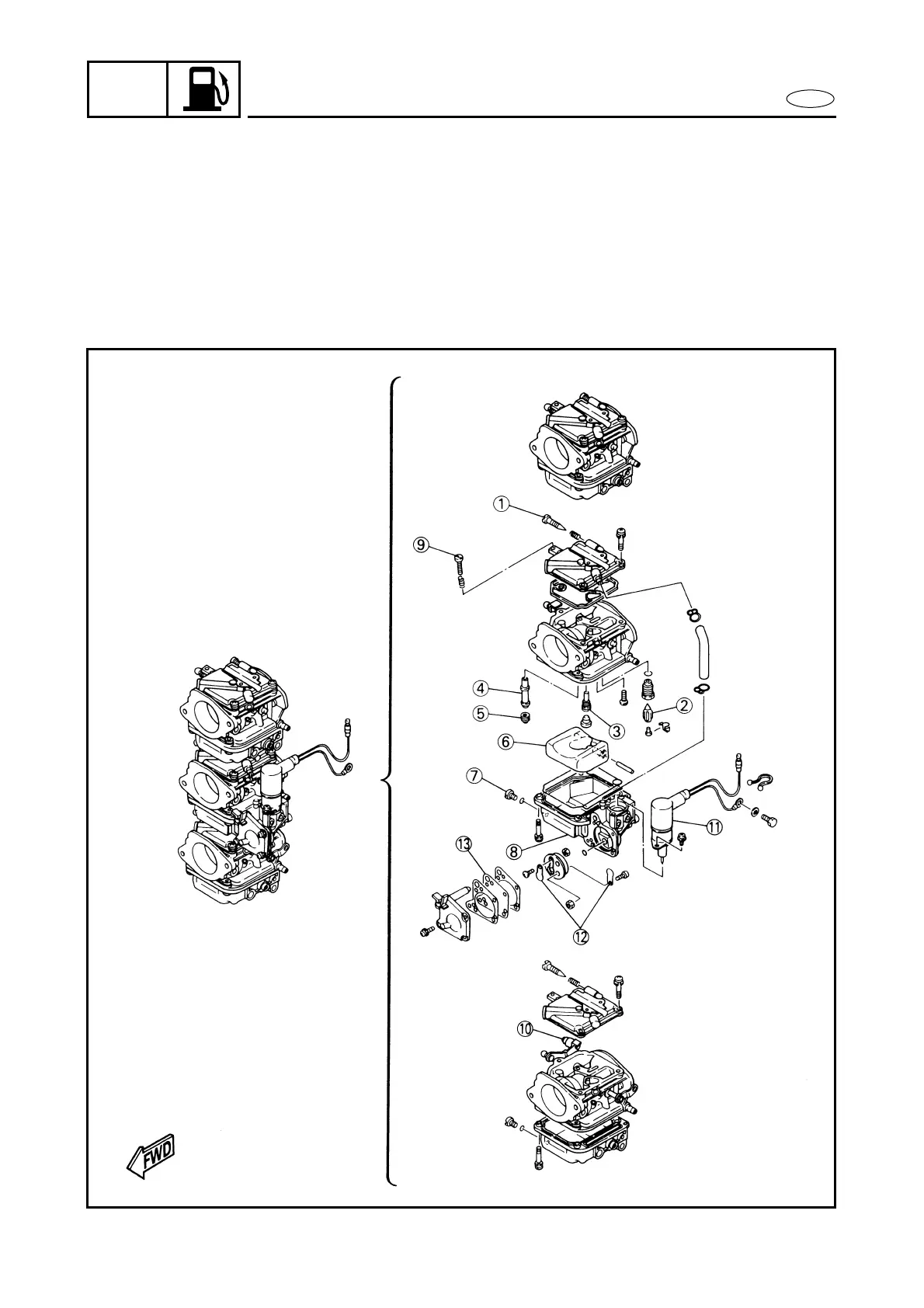

EXPLODED DIAGRAM (Except for C60ER, C60TR, C75TR)
1 Pilot screw
2 Needle valve
3 Pilot jet
4 Main nozzle
5 Main jet
6 Float
7 Drain screw
8 Float chamber
9 Throttle stop screw
0 Collar
A Electrothermal valve
B Valve
C Diaphragm
